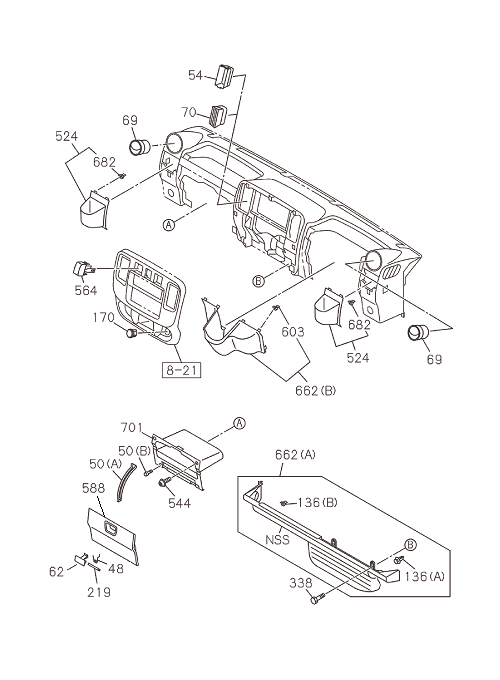

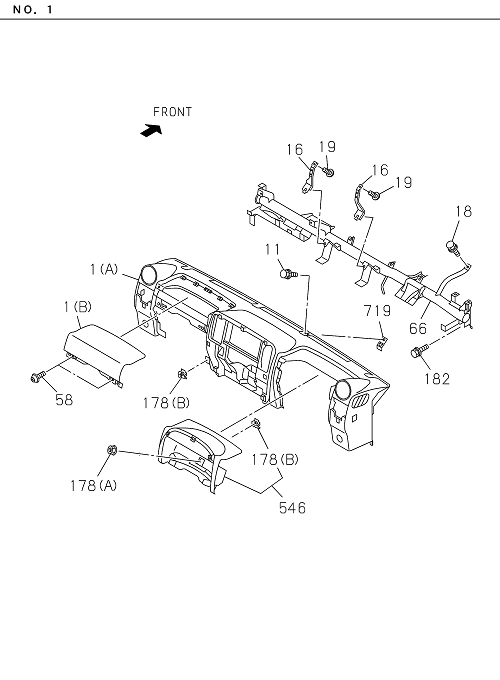

7-40 | INSTRUMENT PANEL AND BOX
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 058 | I0-72180 516-0 | SCREW; INST PANEL | 18 | 1802- | TRAGA | M5X16 TAPPING HEXALOBULAR | ||
| 662 | I8-97466 778-A | COVER; LWR,INST PANEL | 1 | 1802- | TRAGA | (B) GRAY | ||
| 544 | I0-72180 516-0 | SCREW; TRAY | 5 | 1802- | TRAGA | M5X16 TAPPING HEXALOBULAR | ||
| 048 | I8-97853 750-1 | SPRING; GLOVE BOX LID | 1 | 1802- | TRAGA | |||
| 136 | I8-98021 271-0 | CLIP; INST COVER | 1 | 1802- | TRAGA | FORCED AIR VENTILATION; (B) | ||
| 066 | I8-98258 500-A | REINFORCEMENT; INST PANEL | 1 | 1802- | TRAGA | EXC. FORCED AIR VENTILATION; (A) | ||
| 662 | I8-97466 776-A | COVER; LWR,INST PANEL | 1 | 1802- | TRAGA | FORCED AIR VENTILATION; (A) BLACK | ||
| 338 | I0-72180 516-0 | SCREW; COVER | 2 | 1802- | TRAGA | FORCED AIR VENTILATION; M5X16 TAPPING HEXALOBULAR | ||
| 178 | I8-98037 629-0 | NUT; INST PANEL | 8 | 1802- | TRAGA | EXC. FORCED AIR VENTILATION; (B) | ||
| 018 | I0-28650 820-0 | BOLT; BRKT | 4 | 1802- | TRAGA | M8X2 0 FLANGE | ||
| 170 | I8-98123 123-0 | COVER; HOLE | 1 | 1802- | TRAGA | |||
| 136 | I8-97581 651-2 | CLIP; INST COVER | 3 | 1802- | TRAGA | FORCED AIR VENTILATION; (A) | ||
| 011 | I0-72180 516-0 | BOLT; INST PNL | 3 | 1802- | TRAGA | SCREW M5X16 TAPPING HEXALOBULAR | ||
| 070 | I8-98028 561-2 | GRILLE; CENTER,AIR OUTLET | 1 | 1802- | TRAGA | FORCED AIR VENTILATION | ||
| 054 | I8-97696 366-0 | POCKET; CENTER CLUSTER | 1 | 1802- | TRAGA | EXC. FORCED AIR VENTILATION | ||
| 066 | I8-98258 501-A | REINFORCEMENT; INST PANEL | 1 | 1802- | TRAGA | FORCED AIR VENTILATION; (A) | ||
| 524 | I8-97466 779-A | STAND ASM; CUP,INST | 2 | 1802- | TRAGA | GRAY | ||
| 050 | I8-98010 867-1 | STOPPER; LID,GLOVE BOX,INST CLUSTER | 2 | 1802- | TRAGA | (B) | ||
| 070 | I8-98028 563-2 | GRILLE; CENTER,AIR OUTLET | 1 | 1802- | TRAGA | FORCED AIR VENTILATION | ||
| 682 | I8-98021 271-0 | CLIP | 6 | 1802- | TRAGA | |||
| 178 | I0-91180 106-0 | NUT; INST PANEL | 3 | 1802- | TRAGA | (A) M6 FLANGE | ||
| 219 | I5-72547 059-1 | SHAFT; GLOVE BOX LID | 1 | 1802- | TRAGA | |||
| 178 | I8-98037 629-0 | NUT; INST PANEL | 13 | 1802- | TRAGA | FORCED AIR VENTILATION; (B) | ||
| 019 | I0-72180 516-0 | SCREW; BRKT | 2 | 1802- | TRAGA | M5X16 TAPPING HEXALOBULAR | ||
| 588 | I8-97466 780-A | LID; BOX | 1 | 1802- | TRAGA | GRAY | ||
| 701 | I8-98258 550-A | TRAY; INST | 1 | 1802- | TRAGA | |||
| 546 | I8-97466 850-A | PANEL; INST, SUB | 1 | 1802- | TRAGA | M5X16 TAPPING HEXALOBULAR | ||
| 069 | I8-98258 516-A | GRILLE; SIDE,AIR OUTLET | 2 | 1802- | TRAGA | |||
| 050 | I8-97853 152-0 | STOPPER; LID,GLOVE BOX,INST CLUSTER | 2 | 1802- | TRAGA | (A) | ||
| 182 | I0-28650 820-0 | BOLT; BRKT,INST PANEL | 1 | 1802- | TRAGA | M8X2 0 FLANGE | ||
| 564 | I8-98025 954-1 | COVER; SW | 4 | 1802- | TRAGA | |||
| 719 | I8-97696 266-A | SPACER; INST | 2 | 1802- | TRAGA | FORCED AIR VENTILATION | ||
| 603 | I8-98021 271-0 | CLIP; COVER | 6 | 1802- | TRAGA | |||
| 054 | I8-97696 365-0 | POCKET; CENTER CLUSTER | 1 | 1802- | TRAGA | EXC. FORCED AIR VENTILATION | ||
| 178 | I0-91180 106-0 | NUT; INST PANEL | 2 | 1802- | TRAGA | EXC. FORCED AIR VENTILATION; (A) M6 FLANGE | ||
| 001 | I8-97466 773-A | PANEL; INST | 1 | 1802- | TRAGA | EXC. FORCED AIR VENTILATION; (A) GRAY | ||
| 011 | I8-94279 204-0 | BOLT; INST PNL | 4 | 1802- | TRAGA | M6X25 |
