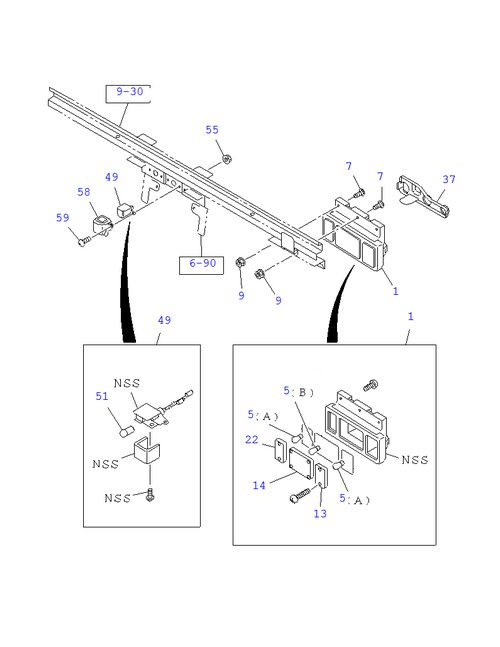

8-03 | LAMP; REAR AND REAR SIDE
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 009 | I8-98049 362-0 | NUT; LAMP,RR COMB | 4 | 1802- | TRAGA | EXC. RR BODY FLAT BED; M6 FLANGE | ||
| 005 | I8-97696 513-A | BULB; RR COMB LAMP | 1 | 1802- | TRAGA | (B) 12V 21W | ||
| 013 | I8-94174 638-A | LENS; TURN SIGNAL | 1 | 1802- | TRAGA | |||
| 055 | I8-94153 039-0 | NUT; LICENSE PLATE LAMP | 2 | 1802- | TRAGA | M5 FLANGE | ||
| 007 | I8-94402 623-0 | SCREW; RR COMB LAMP | 6 | 1802- | TRAGA | RR BODY FLAT BED; M6X20 | ||
| 014 | I8-94178 624-A | LENS; TAIL & STOP,RR COMB LAMP | 1 | 1802- | TRAGA | |||
| 013 | I8-94174 639-A | LENS; TURN SIGNAL | 1 | 1802- | TRAGA | |||
| 005 | I8-97696 514-A | BULB; RR COMB LAMP | 2 | 1802- | TRAGA | (A) 12V 21W | ||
| 051 | I8-94126 494-0 | BULB; LICENSE PLATE LAMP | 1 | 1802- | TRAGA | |||
| 059 | I9-93490 520-0 | SCREW; TAP,LICENSE LAMP BODY | 2 | 1802- | TRAGA | M5X20 | ||
| 005 | I8-97696 514-A | BULB; RR COMB LAMP | 2 | 1802- | TRAGA | (A) 12V 21W | ||
| 037 | I8-97520 137-A | COVER; RR COMB LAMP | 1 | 1802- | TRAGA | |||
| 037 | I8-97520 138-A | COVER; RR COMB LAMP | 1 | 1802- | TRAGA | |||
| 005 | I8-97696 513-A | BULB; RR COMB LAMP | 1 | 1802- | TRAGA | (B) 12V 21W | ||
| 001 | I8-97487 312-A | LAMP ASM; RR COMB | 1 | 1802- | TRAGA | |||
| 022 | I8-94257 512-A | LENS; BACKUP,RR COMB LAMP | 1 | 1802- | TRAGA | |||
| 049 | I7-41410 211-A | LAMP; LICENSE PLATE | 1 | 1802- | TRAGA | |||
| 001 | I8-97487 313-A | LAMP ASM; RR COMB | 1 | 1802- | TRAGA | |||
| 014 | I8-94178 624-A | LENS; TAIL & STOP,RR COMB LAMP | 1 | 1802- | TRAGA | |||
| 022 | I8-94257 512-A | LENS; BACKUP,RR COMB LAMP | 1 | 1802- | TRAGA | |||
| 058 | I7-41411 211-A | COVER; LICENSE PLATE LAMP | 1 | 1802- | TRAGA | |||
| 007 | I8-94402 623-0 | SCREW; RR COMB LAMP | 4 | 1802- | TRAGA | EXC. RR BODY FLAT BED; M6X20 |
