8-10 | WIRING HARNESS AND FUSE
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

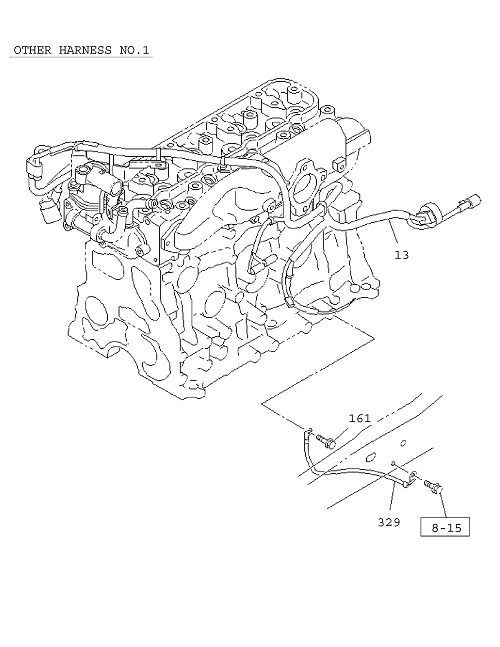

| 329 | I8-98259 366-A | CABLE; ENG TO FRAME | 1 | 1802- | TRAGA | |||
| 161 | I0-28051 016-0 | BOLT; GROUND,HARNESS | 1 | 1802- | TRAGA | M10X16 FLANGE | ||

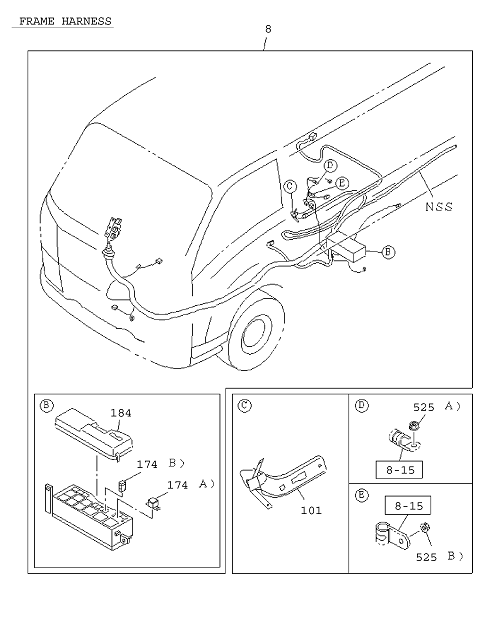

| 008 | I8-98259 375-A | HARNESS; FRAME,FRT | 1 | 1802-2008 | TRAGA | EXC. FORCED AIR VENTILATION | ||
| 008 | I8-98299 001-A | HARNESS; FRAME,FRT | 1 | 1802-2008 | TRAGA | FORCED AIR VENTILATION | ||
| 041 | I8-97103 388-A | PULLER; FUSE | 1 | 1802- | TRAGA | |||
| 005 | I8-97183 643-0 | FUSE; FACIA HARNESS | AR | 1802- | TRAGA | 30A PINK | ||
| 005 | I8-97062 022-0 | FUSE; FACIA HARNESS | AR | 1802- | TRAGA | 10A MINI RED | ||
| 101 | I8-97068 801-1 | BRACKET; HARNESS CONNECTOR | 1 | 1802- | TRAGA | |||
| 174 | I8-94388 305-1 | FUSE; SLOW BLOW | AR | 1802- | TRAGA | (A) 80A BLACK | ||

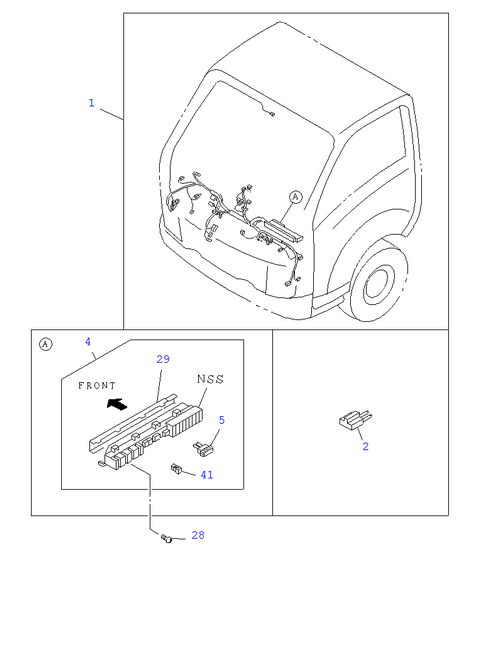

| 001 | I8-98299 134-A | HARNESS; CAB | 1 | 1802- | TRAGA | EXC. FORCED AIR VENTILATION | ||

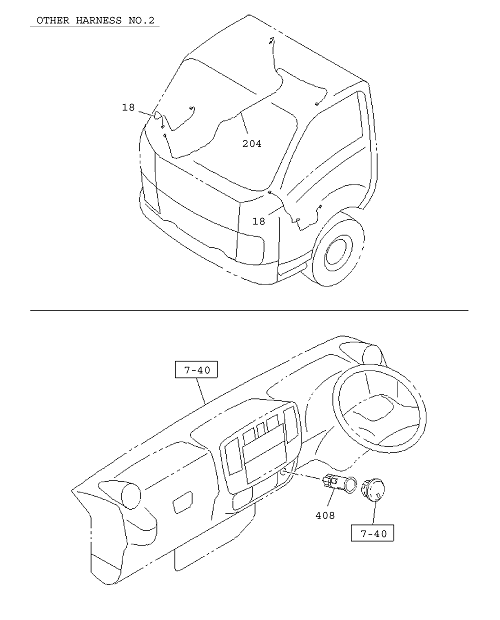

| 204 | I8-98353 006-A | HARNESS; CABLE,FLOOR | 1 | 1802- | TRAGA | |||
| 174 | I8-97183 643-0 | FUSE; SLOW BLOW | AR | 1802- | TRAGA | (B) 30A PINK | ||
| 018 | I8-98353 012-A | HARNESS; DOOR | 1 | 1802- | TRAGA | |||
| 002 | I8-94422 639-A | DIODE; CABLE HARNESS | AR | 1802- | TRAGA | BLACK 2P-1.5A | ||
| 004 | I8-97187 921-1 | BOX ASM; FUSE,HARNESS | 1 | 1802- | TRAGA | |||
| 184 | I8-97377 741-0 | COVER; RELAY & FUSE BOX | 1 | 1802- | TRAGA | |||
| 174 | I8-97219 407-0 | FUSE; SLOW BLOW | AR | 1802- | TRAGA | (B) 6 0A YELLOW | ||
| 525 | I0-91180 110-0 | NUT; CLIP | 1 | 1802- | TRAGA | (B) M10 FLANGE | ||
| 174 | I8-97183 645-0 | FUSE; SLOW BLOW | AR | 1802- | TRAGA | (B) 50A RED | ||
| 525 | I0-91180 108-0 | NUT; CLIP | 1 | 1802- | TRAGA | (A) M8 FLANGE | ||
| 029 | I8-97074 955-A | COVER; FUSE BOX | 1 | 1802- | TRAGA | |||
| 013 | I8-98239 103-A | HARNESS; ENG | 1 | 1802- | TRAGA | |||
| 008 | I8-97559 822-A | HARNESS; FRAME,FRT | 1 | 2009- | TRAGA | EXC. FORCED AIR VENTILATION | ||
| 001 | I8-98299 135-A | HARNESS; CAB | 1 | 1802- | TRAGA | FORCED AIR VENTILATION | ||
| 408 | I8-98123 115-0 | SOCKET ASM; ACCESSORY | 1 | 1802- | TRAGA | |||
| 008 | I8-97559 823-A | HARNESS; FRAME,FRT | 1 | 2009- | TRAGA | FORCED AIR VENTILATION | ||
| 028 | I0-72180 516-0 | SCREW; FUSE BOX | 2 | 1802- | TRAGA | M5X16 TAPPING HEXALOBULAR | ||
| 005 | I8-97062 023-0 | FUSE; FACIA HARNESS | AR | 1802- | TRAGA | 15A MINI BLUE | ||
| 018 | I8-98353 011-A | HARNESS; DOOR | 1 | 1802- | TRAGA |
