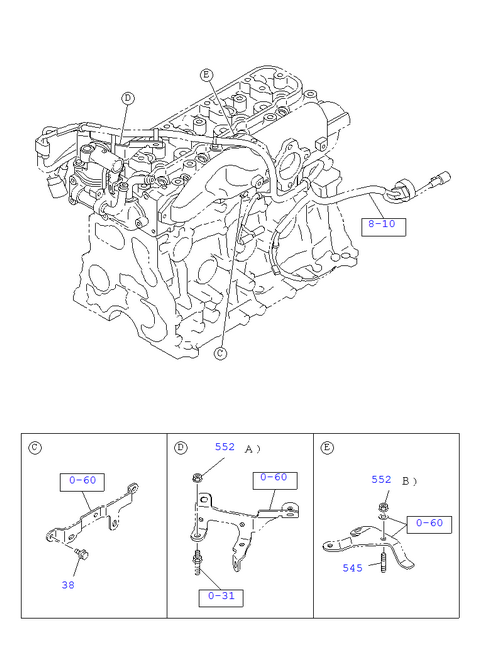

8-15 | FIXING PARTS; WIRING HARNESS
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

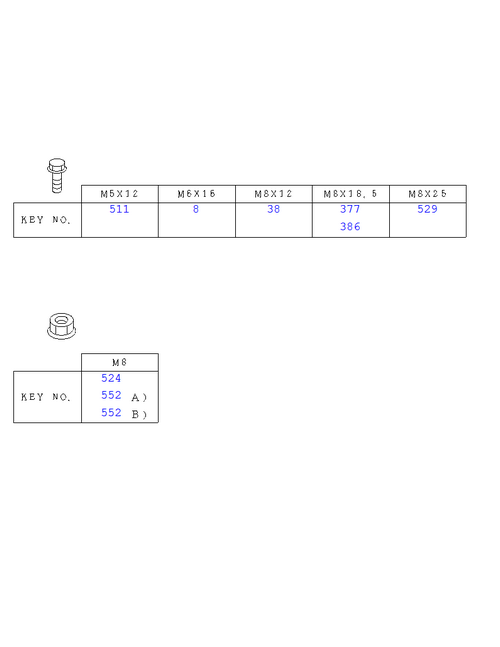

| 529 | I0-28650 825-0 | BOLT; RELAY BOX | 3 | 1802- | TRAGA | M8X2 5 FLANGE | ||

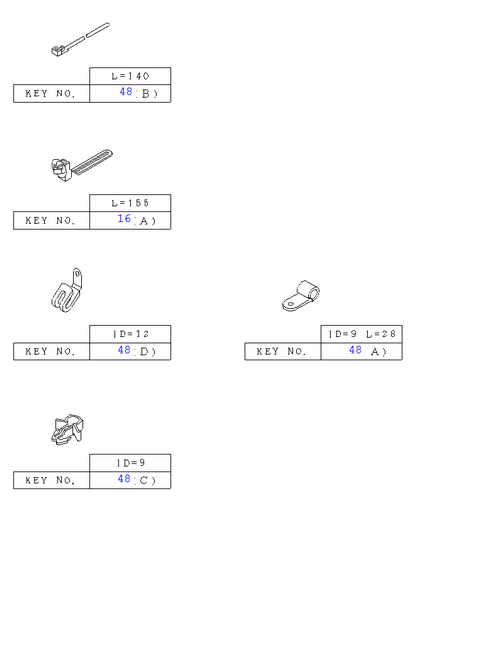

| 048 | I1-09700 468-1 | CLIP; FRAME HARNESS | 1 | 1802- | TRAGA | (A) ID=9 L=2 8 | ||
| 524 | I0-91180 108-0 | NUT; HARNESS | 1 | 1802- | TRAGA | M8 FLANGE | ||
| 510 | I8-94463 268-A | GROMMET; SCREW | 4 | 1802- | TRAGA | |||
| 552 | I0-91180 108-0 | NUT; BRKT,HARNESS | 2 | 1802- | TRAGA | (A) M8 FLANGE | ||
| 048 | I8-97063 874-0 | CLIP; FRAME HARNESS | 1 | 1802- | TRAGA | (C) ID=9 | ||
| 178 | I8-94279 735-0 | GROMMET; HARNESS | 2 | 1802- | TRAGA | ID=4 7 | ||
| 053 | I8-98299 132-A | BRACKET; HARNESS | 1 | 1802- | TRAGA | |||
| 016 | I1-09987 214-0 | CLIP; HARNESS | 2 | 1802- | TRAGA | (B) 1 SET=5 PIECE | ||
| 545 | I0-41010 818-0 | STUD; HARNESS | 1 | 1802- | TRAGA | M8X18 L=30 | ||
| 552 | I0-91180 208-0 | NUT; BRKT,HARNESS | 1 | 1802- | TRAGA | (B) M8 FLANGE | ||
| 008 | I0-28650 616-0 | BOLT; BRKT,CONNE CTOR | 2 | 1802- | TRAGA | M6X16 FLANGE | ||
| 511 | I0-72180 512-0 | SCREW; HARNESS COVER | 2 | 1802- | TRAGA | T25 M5X12 TAPPING HEXALOBULAR | ||
| 180 | I8-97856 130-4 | COVER; HARNESS | 1 | 1802- | TRAGA | |||
| 386 | I8-98141 255-0 | BOLT; GRAND HARNESS | 2 | 1802- | TRAGA | M8X18.5 W/PL WASHER | ||
| 038 | I0-28050 812-A | BOLT; CLIP,HARNESS | 2 | 1802- | TRAGA | M8X12 FLANGE | ||
| 377 | I8-98141 255-0 | BOLT; CAB EARTH | 2 | 1802- | TRAGA | M8X18.5 W/PL WASHER | ||
| 048 | I8-97367 984-1 | CLIP; FRAME HARNESS | 1 | 1802- | TRAGA | (D) ID=12 VINYL CHLORIDE | ||
| 048 | I5-09707 031-1 | CLIP; FRAME HARNESS | 1 | 1802- | TRAGA | (B) L=14 0 | ||
| 016 | I8-97173 307-0 | CLIP; HARNESS | 2 | 1802- | TRAGA | (A) L=155 |
