8-25 | SWITCH AND RELAY; INSTRUMENT PANEL
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

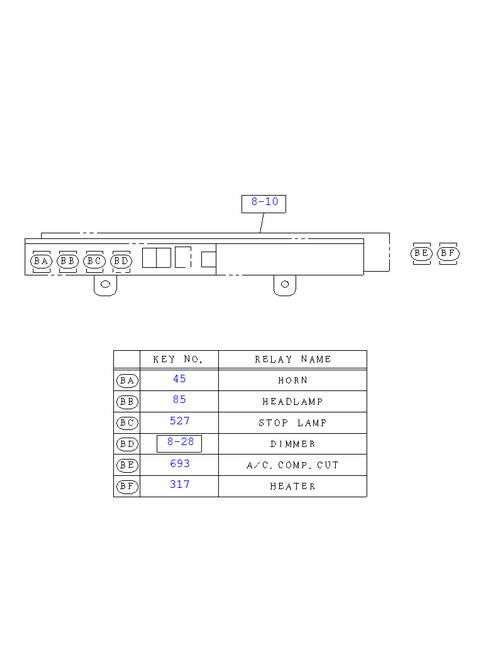

| 085 | I8-97173 037-1 | RELAY; HEADLAMP | 1 | 1802- | TRAGA | 12V | ||

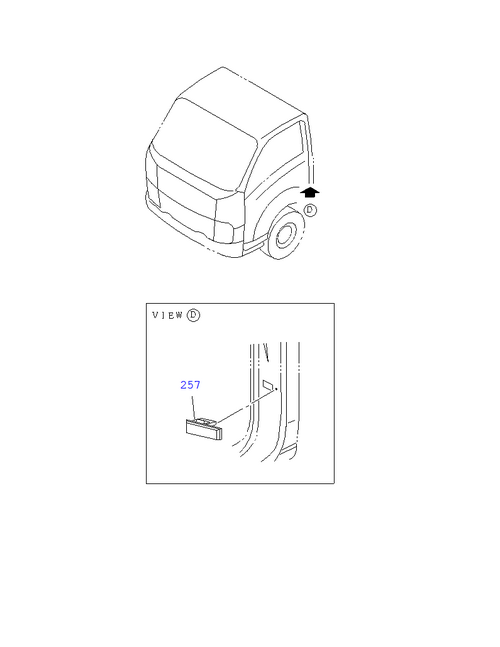

| 257 | I8-94229 914-1 | COVER; HOLE,SW | 1 | 1802- | TRAGA | |||

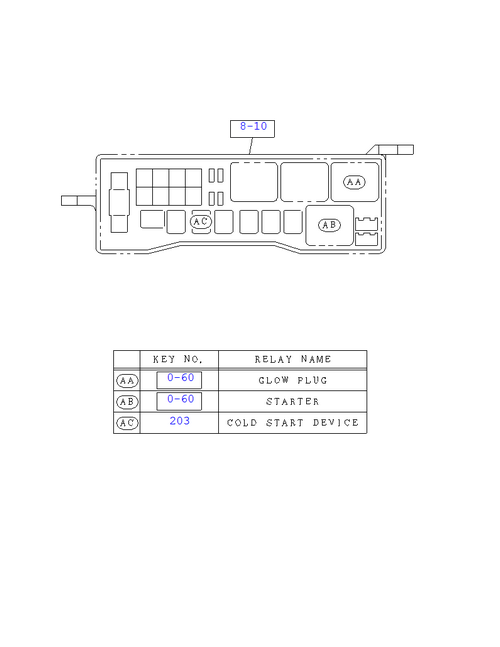

| 203 | I8-97173 037-1 | RELAY; COLD START DEVICE (CSD) | 1 | 1802- | TRAGA | 12V | ||
| 045 | I8-97173 037-1 | RELAY; HORN | 1 | 1802- | TRAGA | 12V | ||
| 527 | I8-97173 037-1 | RELAY; TAIL | 1 | 1802- | TRAGA | 12V | ||

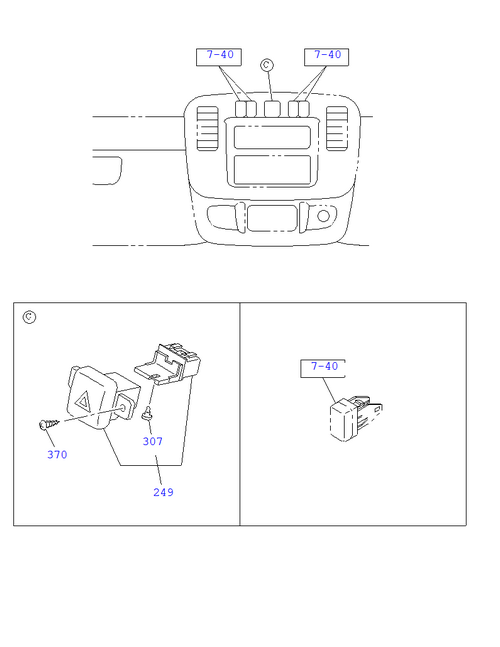

| 249 | I8-98259 433-0 | SWITCH; HAZARD | 1 | 1802- | TRAGA | |||
| 257 | I8-94229 914-1 | COVER; HOLE,SW | 1 | 1802- | TRAGA | |||
| 307 | I8-97352 440-0 | BULB ASM; SW | 1 | 1802- | TRAGA | |||
| 693 | I8-97173 037-1 | RELAY; A/C.COMP.CUT | 1 | 1802- | TRAGA | FORCED AIR VENTILATION; 12V | ||
| 004 | I8-97173 307-0 | CLIP; COMB SW | 1 | 1802- | TRAGA | L=155 | ||
| 482 | I0-38050 512-0 | BOLT; BRKT | 3 | 1802- | TRAGA | M5X12 | ||
| 370 | I8-98061 856-0 | BOLT; SW | 2 | 1802- | TRAGA | M5X14 TAPPING W/TORQUES | ||
| 317 | I8-97060 926-1 | RELAY; BLOWER MOTOR,HTR | 1 | 1802- | TRAGA | FORCED AIR VENTILATION; 12V 20A | ||

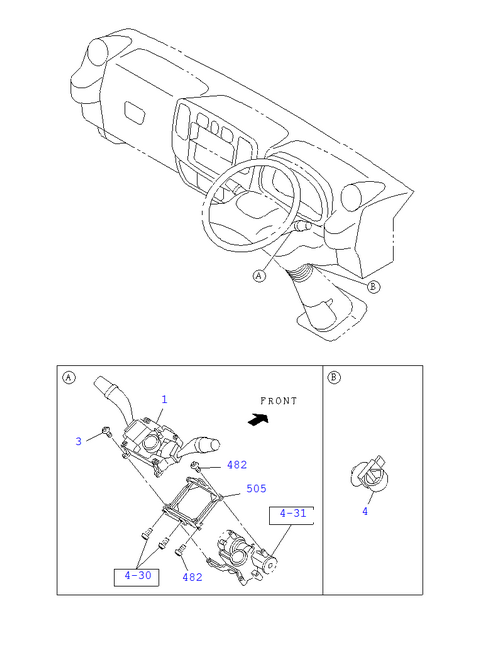

| 001 | I8-98007 705-2 | SWITCH; COMB | 1 | 1802- | TRAGA | |||
| 505 | I8-98258 824-A | BRACKET; SW | 1 | 1802- | TRAGA | |||
| 003 | I0-38050 512-0 | SCREW; COMB SW | 2 | 1802- | TRAGA | M5X12 |
