8-28 | CHASSIS ELECTRICAL
TRAGA
TRAGA

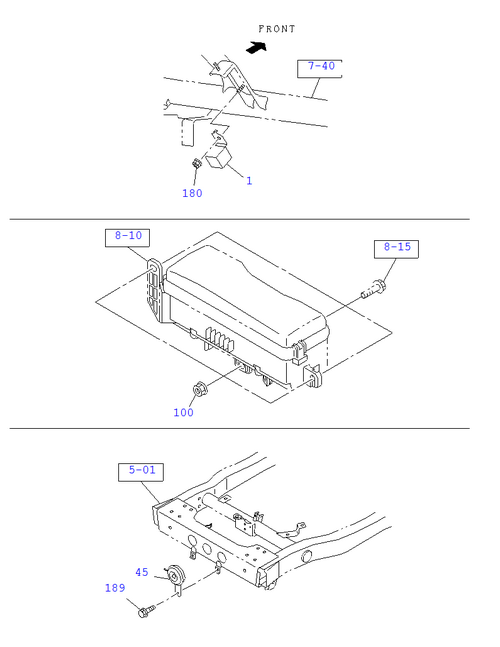

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

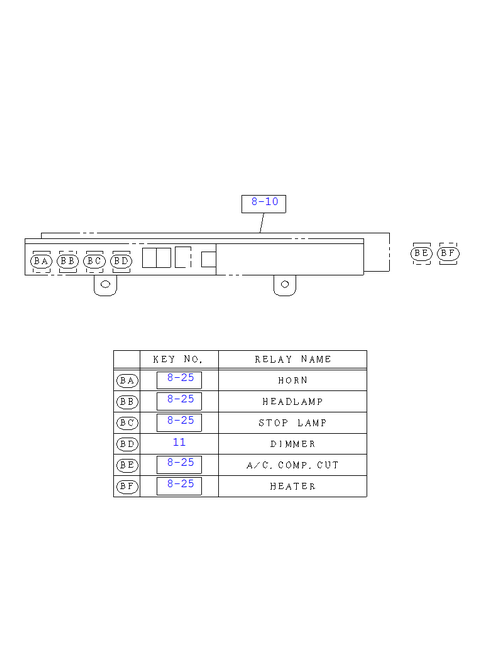

| 011 | I6-97173 037-0 | RELAY; DIMMER | 1 | 1802- | TRAGA | (IADG) 12V | ||
| 189 | I8-98141 255-0 | BOLT; HORN | 1 | 1802- | TRAGA | M8X18.5 W/PL WASHER | ||
| 011 | I8-97173 037-1 | RELAY; DIMMER | 1 | 1802- | TRAGA | 12V | ||
| 001 | I7-43700 235-A | UNIT; FLASHER | 1 | 1802- | TRAGA | |||
| 100 | I0-91180 108-0 | NUT; RELAY BOX COVER | 3 | 1802- | TRAGA | M8 FLANGE | ||
| 189 | I8-98141 255-0 | BOLT; HORN | 1 | 1802- | TRAGA | DUAL HEAVY DUTY HORN; M8X18.5 W/PL WASHER | ||
| 180 | I0-91180 106-0 | NUT; FLASHER UNIT | 1 | 1802- | TRAGA | M6 FLANGE | ||
| 045 | I8-97696 485-A | HORN; LOW NOTE | 1 | 1802- | TRAGA |
