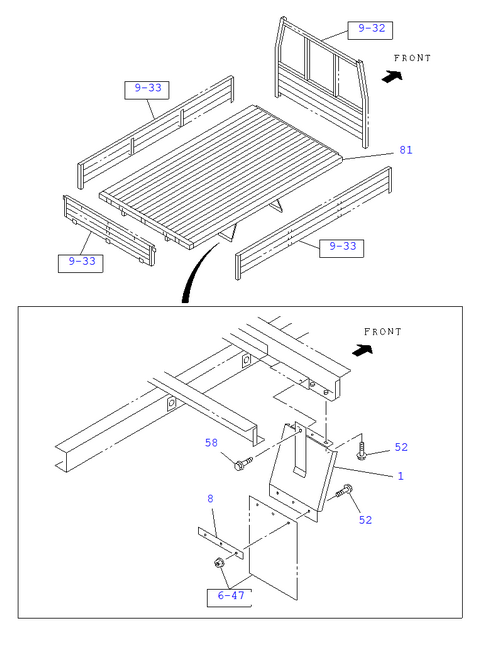

9-31 | REAR BODY; FLOOR AND FENDER
TRAGA
TRAGA
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 052 | I0-28050 612-0 | BOLT; FENDER STAY,RR | 16 | 1802- | TRAGA | RR BODY FLAT BED; M6X12 FLANGE | ||
| 081 | I8-98374 327-A | FLOOR ASM; RR BODY | 1 | 1802- | TRAGA | RR BODY FLAT BED | ||
| 058 | I0-28650 625-0 | BOLT; RUBBER,RR FENDER | 2 | 1802- | TRAGA | RR BODY FLAT BED; M6X2 5 FLANGE | ||
| 008 | I8-97204 433-A | HOLDER; FLAP RUBBER | 2 | 1802- | TRAGA | RR BODY FLAT BED | ||
| 001 | I8-97469 769-A | FENDER; RR,RR BODY | 4 | 1802- | TRAGA | RR BODY FLAT BED |
