0-13 | OIL PAN AND LEVEL GAUGE
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

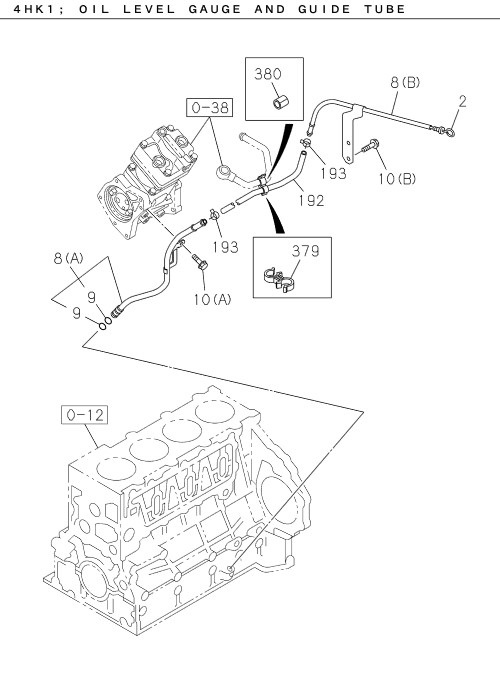

| 010 | I0-28050 612-0 | BOLT; GUIDE TUBE | 1 | 2203- | FRR | (A) M6X12 FLANGE | ||
| 192 | I1-09360 978-A | HOSE; GUIDE TUBE | 1 | 2203- | FRR | L=300 | ||
| 380 | I8-98070 445-0 | PROTECTOR; PIPE | 1 | 2203- | FRR | ID=18 L=40 | ||
| 004 | I8-94152 613-A | PLUG; DRAIN,OIL | 1 | 2203- | FRR | M14X14 | ||
| 003 | I8-97912 531-0 | GASKET; DRAIN PLUG | 1 | 2203- | FRR | ID=14.2 OD=24 | ||
| 008 | I8-98009 115-1 | TUBE; GUIDE,OIL LEVEL GAUGE | 1 | 2203- | FRR | (A) | ||
| 193 | I1-09707 158-0 | CLIP; HOSE,GUIDE TUBE | 2 | 2203- | FRR | ID=17 | ||
| 379 | I8-94323 068-0 | CLIP; PIPE TO HOSE | 1 | 2203- | FRR | ID=18 & 18 | ||
| 002 | I8-97519 308-0 | GAUGE; OIL LEVEL | 1 | 2203- | FRR | |||
| 023 | I8-97047 004-1 | BOLT; OIL PAN | 1 | 2203- | FRR | (B) M8X14 W/SCOTCH GRIP | ||
| 024 | I8-97581 234-0 | NUT; OIL PAN | 7 | 2203- | FRR | M8 W/LK WASHER | ||
| 001 | I8-98191 050-0 | PAN ASM; OIL | 1 | 2203- | FRR | |||
| 023 | I8-97047 005-0 | BOLT; OIL PAN | 18 | 2203- | FRR | (A) M8X14 | ||
| 008 | I8-98010 328-1 | TUBE; GUIDE,OIL LEVEL GAUGE | 1 | 2203- | FRR | (B) | ||
| 010 | I7-04508 025-A | BOLT; GUIDE TUBE | 2 | 2203- | FRR | (B) M8X20 FLANGE |
