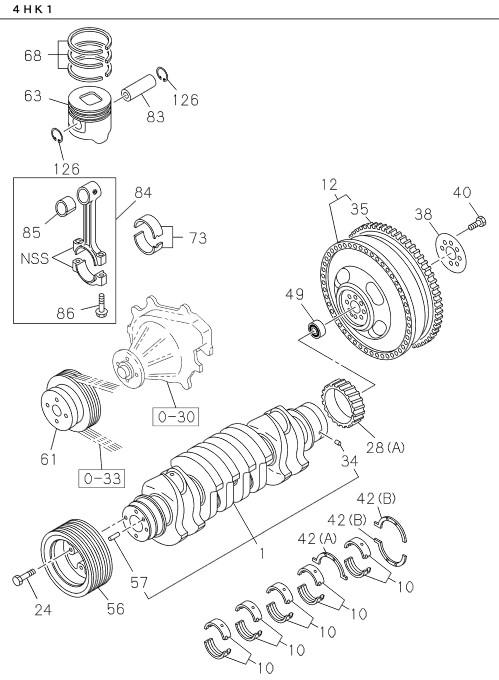

0-15 | CRANKSHAFT,PISTON AND FLYWHEEL
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 049 | I8-97258 239-0 | BEARING; PILOT | 1 | 2203- | FRR | |||
| 061 | I8-98003 384-1 | PULLEY; FAN DRIVE | 1 | 2203- | FRR | 1-GROOVE | ||
| 042 | I8-97386 548-0 | WASHER; THRUST,CR/SHF | 1 | 2203- | FRR | (A) | ||
| 126 | I8-98006 828-0 | RING; SNAP,PISTON PIN | 8 | 2203- | FRR | OD=43.7 | ||
| 042 | I8-97386 549-0 | WASHER; THRUST,CR/SHF | 2 | 2203- | FRR | (B) | ||
| 063 | I8-98041 141-2 | PISTON | 8 | 2203- | FRR | NON GRADE | ||
| 056 | I8-98004 024-3 | PULLEY; CR/SHF DAMPER | 1 | 2203- | FRR | 3-GROOVE | ||
| 040 | I8-94334 870-1 | BOLT; FLYWHEEL | 8 | 2203- | FRR | M16X51 | ||
| 084 | I8-98018 425-3 | ROD ASM; CONN | 4 | 2203- | FRR | |||
| 049 | I8-97258 239-A | BEARING; PILOT | 1 | 2203- | FRR | (IADG) | ||
| 068 | I8-98040 125-A | RING SET; PISTON,STANDARD | 4 | 2203- | FRR | |||
| 010 | I8-97372 078-1 | METAL SET; CRANKSHAFT, STANDARD | 5 | 2203- | FRR | BROWN | ||
| 010 | I8-97372 077-1 | METAL SET; CRANKSHAFT, STANDARD | 5 | 2203- | FRR | BLACK | ||
| 034 | I9-09878 626-0 | PIN; GEAR SETTING | 1 | 2203- | FRR | OD=5 L=6 | ||
| 038 | I8-94397 496-A | WASHER; FLYWHEEL | 1 | 2203- | FRR | ID=55 OD=110 | ||
| 035 | I8-97375 675-1 | GEAR; RING | 1 | 2203- | FRR | Z=143 | ||
| 073 | I8-97616 358-0 | METAL SET; CONN ROD,STANDARD | 4 | 2203- | FRR | GREEN | ||
| 001 | I8-98029 270-1 | CRANKSHAFT | 1 | 2203- | FRR | |||
| 010 | I8-97372 076-1 | METAL SET; CRANKSHAFT, STANDARD | 5 | 2203- | FRR | BLUE | ||
| 012 | I8-98056 355-2 | FLYWHEEL | 1 | 2203- | FRR | |||
| 024 | I8-97028 733-0 | BOLT; DAMPER | 4 | 2203- | FRR | M16X42 | ||
| 057 | I9-08150 820-0 | PIN; PULLEY | 2 | 2203- | FRR | OD=8 L=20 | ||
| 086 | I8-98091 141-0 | BOLT; CONNROD | 8 | 2203- | FRR | M13X57 FLANGE | ||
| 028 | I8-94394 342-4 | GEAR; CR/SHF | 1 | 2203- | FRR | (A) Z=42 | ||
| 085 | I8-94391 794-1 | BUSHING; CONNROD | 4 | 2203- | FRR | |||
| 083 | I8-98018 863-1 | PIN; PISTON | 4 | 2203- | FRR | |||
| 073 | I8-97616 359-0 | METAL SET; CONN ROD,STANDARD | 4 | 2203- | FRR | YELLOW |
