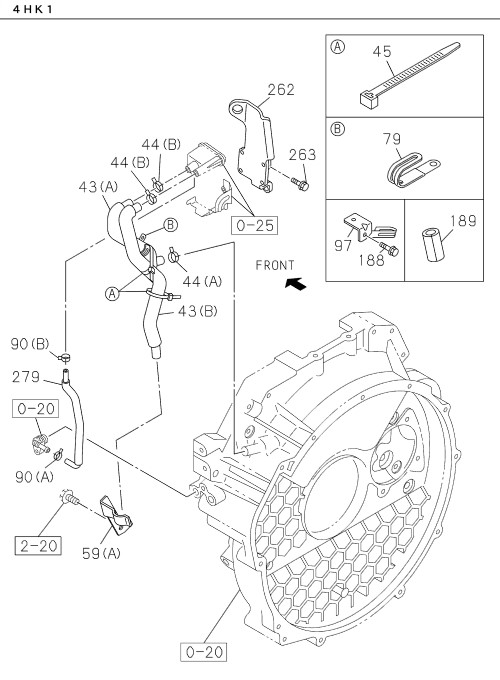

0-28 | VENTILATION SYSTEM
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 263 | I0-28151 230-0 | BOLT; BRKT,OIL SEPARATOR | 3 | 2203- | FRR | M12X30 FLANGE | ||
| 059 | I8-98249 517-0 | CLIP; HOSE | 1 | 2203- | FRR | (A) | ||
| 043 | I8-98249 510-0 | HOSE; PCV | 1 | 2203- | FRR | (B) | ||
| 188 | I0-28050 812-A | BOLT; BRKT | 1 | 2203- | FRR | M8X12 FLANGE | ||
| 044 | I8-94466 382-0 | CLIP; HOSE,PCV | 2 | 2203- | FRR | (B) ID=22.7 | ||
| 097 | I8-98093 946-3 | BRACKET; HOSE | 1 | 2203- | FRR | |||
| 044 | I8-98150 355-0 | CLIP; HOSE,PCV | 1 | 2203- | FRR | (A) ID=21 | ||
| 090 | I8-97015 784-0 | CLIP; RUBBER HOSE | 1 | 2203- | FRR | (B) ID=11 | ||
| 090 | I8-97138 011-0 | CLIP; RUBBER HOSE | 1 | 2203- | FRR | (A) ID=11.5 | ||
| 189 | I9-09956 682-0 | SLEEVE; RUBBER | 1 | 2203- | FRR | ID=10 OD=14 L=30 | ||
| 045 | I8-98143 872-0 | CLIP; PCV HOSE | 2 | 2203- | FRR | L=202 | ||
| 262 | I8-98296 130-0 | BRACKET; OIL SEPARATOR | 1 | 2203- | FRR | |||
| 279 | I8-98215 655-0 | HOSE; RUBBER,OIL DRAIN | 1 | 2203- | FRR | |||
| 043 | I8-98215 656-1 | HOSE; PCV | 1 | 2203- | FRR | (A) | ||
| 079 | I8-94224 891-1 | CLIP; PCV HOSE | 1 | 2203- | FRR | L=36 |
