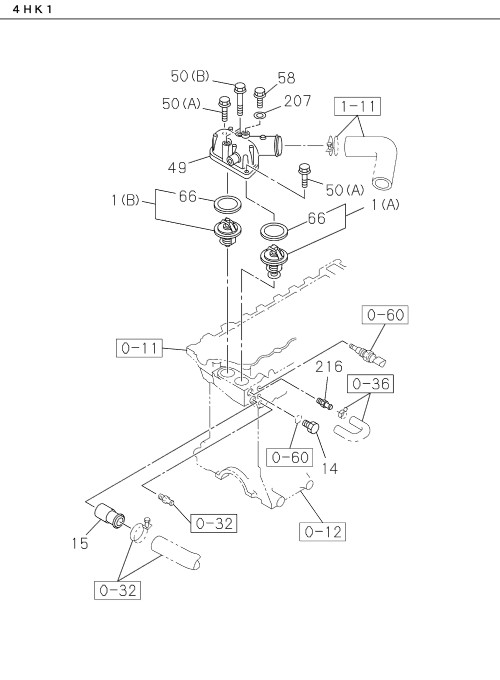

0-31 | THERMOSTAT AND HOUSING
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 066 | I8-98280 281-0 | GASKET; THERMOSTAT HSG | 2 | 2203- | FRR | ID=49.5 OD=56.5 | ||
| 216 | I8-97358 699-0 | PIPE ASM; WATER,TURBOCHARGER RETURN | 1 | 2203- | FRR | |||
| 001 | I8-97300 787-3 | THERMOSTAT | 1 | 2203- | FRR | (B) 85 CELSIUS | ||
| 049 | I8-97329 914-0 | PIPE; WATER OUTLET | 1 | 2203- | FRR | |||
| 050 | I0-28650 825-0 | BOLT; OUTLET PIPE | 2 | 2203- | FRR | (A) M8X25 FLANGE | ||
| 058 | I8-97021 211-1 | PLUG; WATER OUTLET PIPE | 1 | 2203- | FRR | M8X16 | ||
| 015 | I8-94342 574-0 | PIPE; BYPASS | 1 | 2203- | FRR | |||
| 014 | I9-09661 005-0 | PLUG; SW | 1 | 2203- | FRR | M16X8 PLUG | ||
| 050 | I1-09044 072-1 | BOLT; OUTLET PIPE | 2 | 2203- | FRR | (B) M8X65 FLANGE | ||
| 001 | I8-97300 790-3 | THERMOSTAT | 1 | 2203- | FRR | (A) 82 CELSIUS | ||
| 207 | I1-09630 082-0 | GASKET | 1 | 2203- | FRR | ID=8.2 OD=13.2 |
