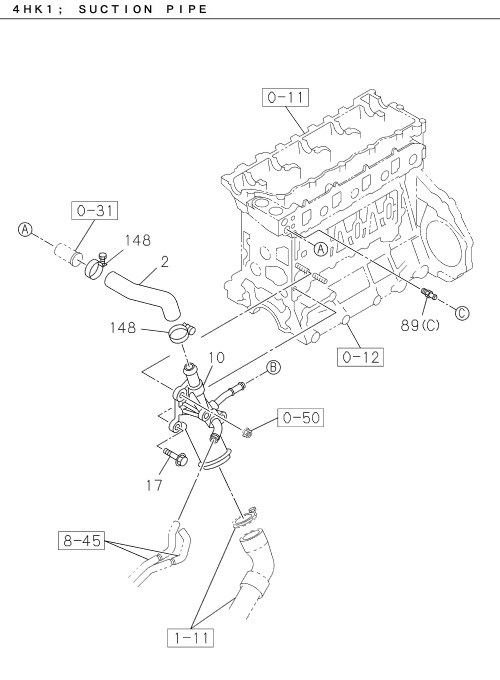

0-32 | WATER PIPING; ENGINE
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 022 | I8-94224 891-1 | CLIP; WATER HOSE | 1 | 2203- | FRR | L=36 | ||
| 017 | I8-94458 473-1 | BOLT; SUCTION PIPE | 1 | 2203- | FRR | M8X48 FLANGE | ||
| 049 | I7-05108 010-A | NUT; WATER PIPE | 2 | 2203- | FRR | M8 FLANGE | ||
| 092 | I8-98132 662-0 | PIPE; WATER,AIR CMPR,OUT | 1 | 2203- | FRR | |||
| 029 | I1-09701 284-0 | CLIP; PIPE | 8 | 2203- | FRR | ID=17 L=17 | ||
| 089 | I8-98095 668-0 | PIPE; WATER,AIR CMPR,IN | 1 | 2203- | FRR | (B) | ||
| 212 | I8-94217 227-0 | STUD; PIPE | 2 | 2203- | FRR | M8X45 L=55 | ||
| 115 | I8-98095 678-3 | HOSE; RUBBER | 1 | 2203- | FRR | (A) | ||
| 202 | I8-98028 170-0 | HOSE; RUBBER,EGR COOLER | 1 | 2203- | FRR | (B) | ||
| 095 | I0-28050 816-0 | BOLT; CLIP | 2 | 2203- | FRR | M8X16 FLANGE | ||
| 090 | I1-09675 193-0 | BOLT; EYE,WATER PIPE,AIR CMPR | 2 | 2203- | FRR | (A) M14X27 EYE-BOLT | ||
| 031 | I0-28050 812-A | BOLT; CLIP | 1 | 2203- | FRR | (C) M8X12 FLANGE | ||
| 002 | I8-97379 228-1 | HOSE; WATER,BY-PASS | 1 | 2203- | FRR | |||
| 202 | I8-98097 717-0 | HOSE; RUBBER,EGR COOLER | 1 | 2203- | FRR | (C) | ||
| 031 | I0-28050 840-0 | BOLT; CLIP | 2 | 2203- | FRR | (B) M8X40 FLANGE | ||
| 091 | I8-98251 345-0 | GASKET; WATER PIPE,AIR CMPR | 4 | 2203- | FRR | (A) ID=14.2 OD=19.2 | ||
| 115 | I8-98136 884-0 | HOSE; RUBBER | 1 | 2203- | FRR | (B) L=130 | ||
| 010 | I8-98166 995-0 | PIPE; SUCTION | 1 | 2203- | FRR | |||
| 154 | I1-09987 182-0 | CLIP; WATER HOSE | 1 | 2203- | FRR | L=170.3 | ||
| 202 | I8-98028 171-0 | HOSE; RUBBER,EGR COOLER | 1 | 2203- | FRR | (A) | ||
| 148 | I1-09704 037-0 | CLIP; BYPASS HOSE | 2 | 2203- | FRR | ID=30 | ||
| 089 | I8-97358 699-0 | PIPE; WATER,AIR CMPR,IN | 1 | 2203- | FRR | (C) |
