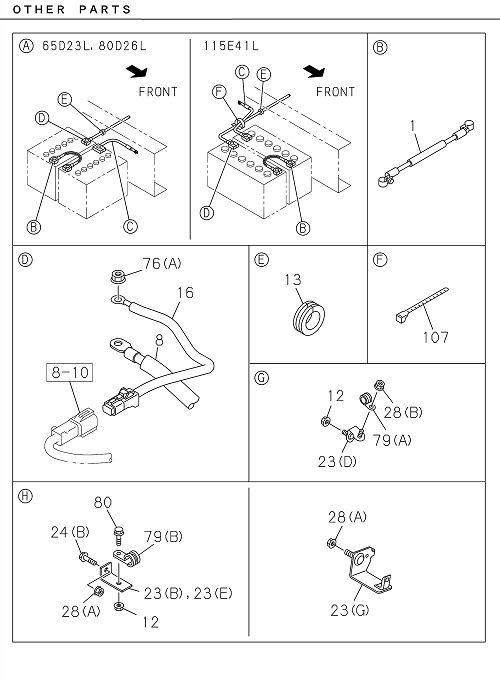

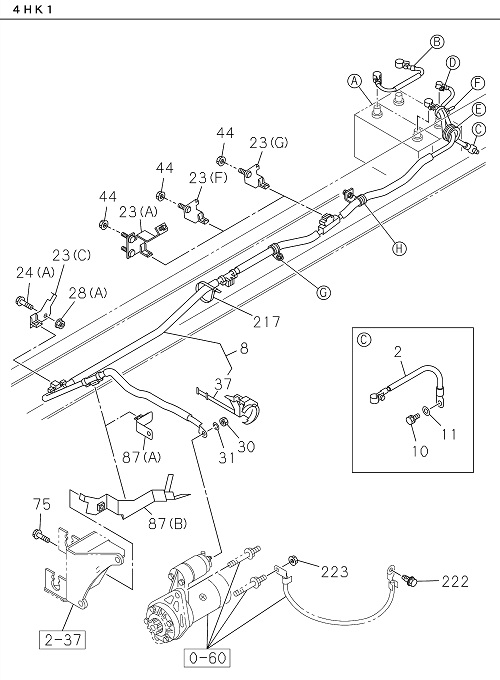

0-61 | BATTERY AND ENGINE ELECTRICAL PARTS
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 028 | I7-05110 010-A | NUT; BRKT TO FRAME | 1 | 2203- | FRR | (A) M10 FLANGE | ||
| 024 | I0-28651 030-0 | BOLT; BRKT TO FRAME | 1 | 2203- | FRR | (A) M10X30 FLANGE | ||
| 087 | I8-98171 733-0 | BRACKET; HARNESS | 1 | 2203- | FRR | (A) | ||
| 023 | I8-98047 277-1 | BRACKET; CABLE CLIP TO FRAME | 1 | 2203- | FRR | (C) | ||
| 013 | I9-09956 256-2 | GROMMET; BATTERY CABLE | 1 | 2203- | FRR | ID=28 OD=35 T=17 | ||
| 001 | I7-42502 223-A | CABLE; BATTERY | 1 | 2203- | FRR | L=280 | ||
| 023 | I8-98051 381-2 | BRACKET; CABLE CLIP TO FRAME | 1 | 2203- | FRR | (D) | ||
| 008 | I8-97675 610-1 | CABLE; BATTERY,STARTER | 1 | 2203- | FRR | |||
| 076 | I0-91110 506-0 | NUT; BATTERY CABLE | 1 | 2203- | FRR | (A) M6 | ||
| 044 | I7-05110 010-A | NUT; BRKT | 2 | 2203- | FRR | M10 FLANGE | ||
| 016 | I7-42050 306-A | CABLE; STARTER TO RELAY | 1 | 2203- | FRR | L=400 | ||
| 222 | I8-94279 219-0 | BOLT; EARTH CABLE | 1 | 2203- | FRR | M10X25 W/LK&PL WASHER | ||
| 079 | I8-98019 191-0 | CLIP; BATTERY CABLE | 2 | 2203- | FRR | (A) ID=21 L=24 | ||
| 030 | I0-91110 508-0 | NUT; CABLE,STARTER TO BATTERY | 1 | 2203- | FRR | M8 | ||
| 010 | I8-94279 219-0 | BOLT; BATTERY CABLE CLIP | 1 | 2203- | FRR | M10X25 W/LK&PL WASHER | ||
| 002 | I8-97619 727-A | CABLE; BATTERY | 1 | 2203- | FRR | L=240 | ||
| 075 | I7-04508 025-A | BOLT; BRKT | 1 | 2203- | FRR | M8X20 FLANGE | ||
| 011 | I1-09503 265-0 | WASHER; BATTERY CABLE EARTH | 1 | 2203- | FRR | ID=10.5 OD=22 T=2.0 | ||
| 028 | I7-05108 010-A | NUT; BRKT TO FRAME | 2 | 2203- | FRR | (B) M8 FLANGE | ||
| 023 | I8-98077 904-1 | BRACKET; CABLE CLIP TO FRAME | 1 | 2203- | FRR | (A) | ||
| 023 | I1-82699 085-0 | BRACKET; CABLE CLIP TO FRAME | 1 | 2203- | FRR | (B) L=95 H=25 | ||
| 012 | I7-05108 010-A | NUT; BATTERY CABLE CLIP | 2 | 2203- | FRR | M8 FLANGE | ||
| 080 | I0-28650 825-0 | BOLT; BATTERY CABLE CLIP | 1 | 2203- | FRR | M8X25 FLANGE | ||
| 037 | I8-98042 507-0 | CAP; TERMINAL,BATTERY CABLE | 1 | 2203- | FRR | |||
| 024 | I0-28650 830-0 | BOLT; BRKT TO FRAME | 1 | 2203- | FRR | (B) M8X30 FLANGE | ||
| 031 | I0-91510 508-0 | WASHER; LK,CABLE,STARTER TO BATTERY | 1 | 2203- | FRR | ID=8.2 | ||
| 223 | I7-05110 010-A | NUT; EARTH CABLE | 1 | 2203- | FRR | M10 FLANGE |
