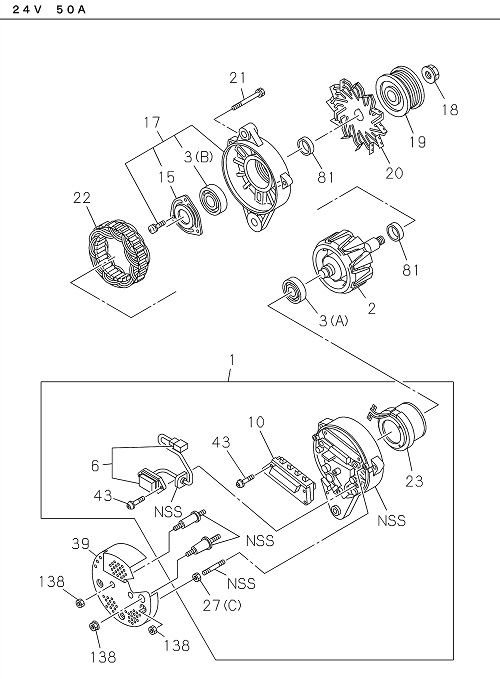

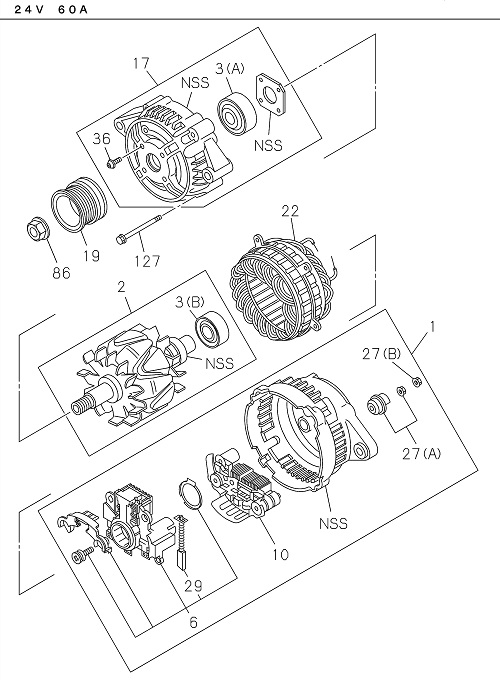

0-66 | GENERATOR
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 017 | I8-97382 872-0 | COVER ASM; FRT,GEN | 1 | 2203- | FRR | |||
| 021 | I1-81229 382-0 | BOLT; THROUGH,GEN | 3 | 2203- | FRR | |||
| 138 | I8-98040 690-0 | NUT; COVER,GENERATOR | 3 | 2203- | FRR | |||
| 003 | I1-81229 758-0 | BEARING; ROTOR,GEN | 1 | 2203- | FRR | (B) | ||
| 027 | I8-98040 687-0 | NUT; RECTIFIER,GEN | 1 | 2203- | FRR | (C) | ||
| 081 | I8-97382 870-0 | SPACER; ROTOR,GEN | 2 | 2203- | FRR | |||
| 015 | I1-81229 760-1 | RETAINER; ROTOR,GEN | 1 | 2203- | FRR | |||
| 006 | I8-97678 782-0 | REGULATOR ASM; VOLTAGE,GEN | 1 | 2203- | FRR | |||
| 022 | I8-98040 639-0 | STATOR; GEN | 1 | 2203- | FRR | |||
| 018 | I8-98040 643-0 | NUT; PULLEY,GEN | 1 | 2203- | FRR | |||
| 001 | I8-97678 785-0 | COVER ASM; RR,GEN | 1 | 2203- | FRR | |||
| 002 | I8-98040 638-0 | ROTOR; GEN | 1 | 2203- | FRR | |||
| 019 | I8-98048 005-0 | PULLEY; GEN | 1 | 2203- | FRR | |||
| 039 | I8-97522 661-0 | COVER; END,RR COVER,GEN | 1 | 2203- | FRR | |||
| 043 | I1-81229 476-0 | SCREW; RR END COVER | 3 | 2203- | FRR | |||
| 023 | I8-98040 645-0 | COIL; ROTOR GEN | 1 | 2203- | FRR | |||
| 020 | I8-97382 874-0 | FAN; GEN | 1 | 2203- | FRR | |||
| 010 | I8-98040 686-0 | RECTIFIER; GEN | 1 | 2203- | FRR | |||
| 003 | I1-81229 723-0 | BEARING; ROTOR,GEN | 1 | 2203- | FRR | (A) |
