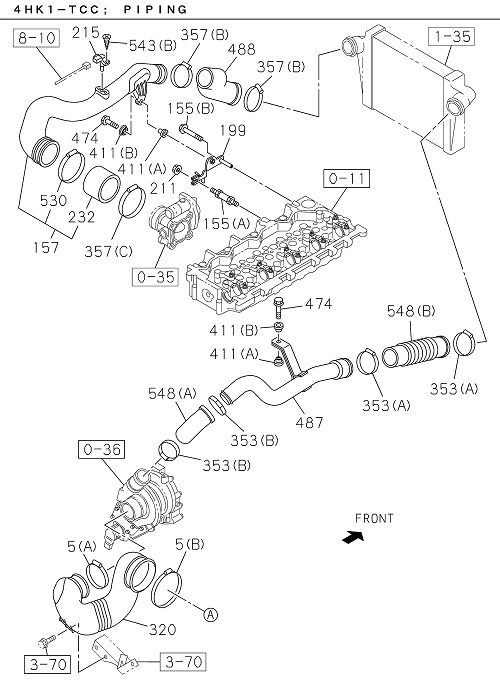

| 242 |
I8-98019 301-3 |
|
BRACKET; AIR DUCT |
1 |
2203- |
|
FRR |
(B) |
| 379 |
I8-98062 621-1 |
|
HOSE; RUBBER |
1 |
2203- |
|
FRR |
|
| 155 |
I0-50640 820-0 |
|
BOLT; BRKT |
1 |
2203- |
|
FRR |
(B) M10X110 FLANGE |
| 353 |
I8-98141 459-0 |
|
CLIP; RUBBER HOSE |
2 |
2203- |
|
FRR |
(A) ID=55-75 |
| 180 |
I8-98025 921-0 |
|
CLIP; AIR INT HOSE |
2 |
2203- |
|
FRR |
ID=24 |
| 487 |
I8-98038 759-3 |
|
PIPE; TURBO TO CHARGE AIR COOLER |
1 |
2203- |
|
FRR |
|
| 353 |
I8-98194 605-0 |
|
CLIP; RUBBER HOSE |
2 |
2203- |
|
FRR |
(B) ID=60-65 |
| 211 |
I7-05110 010-A |
|
NUT; BRKT |
1 |
2203- |
|
FRR |
M10 FLANGE |
| 548 |
I8-98486 840-0 |
|
HOSE; RUBBER,TURBO TO INL PIPE |
1 |
2203- |
|
FRR |
(A) |
| 357 |
I8-98025 921-0 |
|
CLIP; RUBBER HOSE |
2 |
2203- |
|
FRR |
(A) ID=24 |
| 215 |
I8-98009 418-0 |
|
SENSOR; MAP |
1 |
2203- |
|
FRR |
|
| 548 |
I8-98486 856-0 |
|
HOSE; RUBBER,TURBO TO INL PIPE |
1 |
2203- |
|
FRR |
(B) |
| 242 |
I8-98019 302-1 |
|
BRACKET; AIR DUCT |
1 |
2203- |
|
FRR |
(C) |
| 357 |
I8-98141 459-0 |
|
CLIP; RUBBER HOSE |
2 |
2203- |
|
FRR |
(B) ID=55-75 |
| 242 |
I8-98019 303-1 |
|
BRACKET; AIR DUCT |
1 |
2203-2408 |
|
FRR |
(A) |
| 155 |
I8-97233 428-0 |
|
BOLT; BRKT |
1 |
2203- |
|
FRR |
(A) M10X17,M10X30 L=105 |
| 159 |
I0-28650 825-0 |
|
BOLT; AIR PIPE |
1 |
2203- |
|
FRR |
(B) M8X25 FLANGE |
| 316 |
I8-98152 269-0 |
|
RUBBER; CUSHION,DUCT |
1 |
2203- |
|
FRR |
|
| 026 |
I8-98010 361-2 |
|
DUCT; AIR INT |
1 |
2203- |
|
FRR |
|
| 005 |
I8-98308 274-0 |
|
CLIP; AIR DUCT |
1 |
2203- |
|
FRR |
(A) ID=75-95 |
| 179 |
I8-98063 233-0 |
|
HOSE; AIR INT |
1 |
2203- |
|
FRR |
|
| 056 |
I0-91610 708-0 |
|
WASHER; LK,AIR INT DUCT |
2 |
2203- |
|
FRR |
(B) ID=8.4 OD=22 |
| 058 |
I1-14119 267-0 |
|
SUPPORT; AIR INL DUCT |
4 |
2203- |
|
FRR |
(A) OD=40 T=18.5 |
| 005 |
I8-98308 276-0 |
|
CLIP; AIR DUCT |
1 |
2203- |
|
FRR |
(B) ID=110-130 |
| 048 |
I1-09030 044-1 |
|
BOLT; AIR DUCT |
2 |
2203- |
|
FRR |
M10X60 |
| 210 |
I0-28651 025-0 |
|
BOLT; ACL BRKT |
4 |
2203- |
|
FRR |
M10X25 FLANGE |
| 049 |
I8-94327 073-0 |
|
NUT; AIR DUCT |
2 |
2203- |
|
FRR |
(C) M8 FLANGE |
| 450 |
I1-09707 157-0 |
|
CLAMP; HOSE |
1 |
2203- |
|
FRR |
|
| 411 |
I8-94395 766-0 |
|
RUBBER; CUSHION |
1 |
2203- |
|
FRR |
(A) OD=32 |
| 411 |
I8-97105 689-A |
|
RUBBER; CUSHION |
1 |
2203- |
|
FRR |
(B) OD=23 |
| 071 |
I8-98308 277-0 |
|
CLIP; AIR DUCT |
1 |
2203- |
|
FRR |
ID=120-140 |
| 058 |
I8-98125 944-A |
|
SUPPORT; AIR INL DUCT |
1 |
2203- |
|
FRR |
(B) |
| 252 |
I8-97837 255-1 |
|
DUCT; AIR INT |
1 |
2301- |
|
FRR |
|
| 252 |
I8-98095 778-0 |
|
DUCT; AIR INT |
1 |
2203-2212 |
|
FRR |
|
| 049 |
I0-91110 508-0 |
|
NUT; AIR DUCT |
1 |
2203- |
|
FRR |
(B) M8 |
| 225 |
I1-09623 057-0 |
|
GASKET; AIR PIPE |
1 |
2203- |
|
FRR |
ID=24.4 |
| 049 |
I1-09984 126-0 |
|
NUT; AIR DUCT |
1 |
2203- |
|
FRR |
(A) M8 CAP NUT |
| 159 |
I0-28050 616-0 |
|
BOLT; AIR PIPE |
2 |
2203- |
|
FRR |
(A) M6X16 FLANGE |
| 320 |
I8-97554 812-0 |
|
HOSE; CONN,ACL |
1 |
2203- |
|
FRR |
|
| 113 |
I8-98094 071-0 |
|
BOLT; RESONATOR |
3 |
2203- |
|
FRR |
M6X16 W/PL WASHER |
| 543 |
I0-36230 410-0 |
|
SCREW; SENSOR |
2 |
2203- |
|
FRR |
(A) M4X10 W/LK&PL WASHER |
| 296 |
I7-05108 010-A |
|
NUT; ACL |
4 |
2203- |
|
FRR |
M8 FLANGE |
| 543 |
I0-36230 412-0 |
|
SCREW; SENSOR |
2 |
2203- |
|
FRR |
(B) M4X12 W/LK&PL WASHER |
| 061 |
I8-98074 570-0 |
|
BOLT; BRKT,AIR DUCT |
2 |
2203- |
|
FRR |
M8X25 FLANGE |
| 474 |
I0-28650 840-0 |
|
BOLT; PIPE |
1 |
2203- |
|
FRR |
M8X40 FLANGE |
| 424 |
I8-98081 835-0 |
|
PIPE; AIR,INL |
1 |
2203- |
|
FRR |
|
| 357 |
I8-98308 273-0 |
|
CLIP; RUBBER HOSE |
1 |
2203- |
|
FRR |
(C) ID=65-85 |
| 242 |
I7-55200 431-0 |
|
BRACKET; AIR DUCT |
1 |
2409- |
|
FRR |
(A) |
| 209 |
I8-97948 478-0 |
|
BRACKET; ACL |
1 |
2203- |
|
FRR |
|
| 157 |
I8-98096 274-1 |
|
PIPE; AIR |
1 |
2203- |
|
FRR |
|
| 560 |
I8-98061 675-0 |
|
FILTER; VERTICAL DUCT |
1 |
2203- |
|
FRR |
|
| 232 |
I8-98128 293-0 |
|
HOSE; CONN |
1 |
2203- |
|
FRR |
|
| 245 |
I1-79998 228-0 |
|
PIECE; DIST,AIR DUCT |
2 |
2203- |
|
FRR |
|
| 488 |
I8-97950 125-A |
|
HOSE; RUBBER,PIPE |
1 |
2203- |
|
FRR |
|
| 056 |
I1-09985 177-0 |
|
WASHER; LK,AIR INT DUCT |
2 |
2203- |
|
FRR |
(A) ID=8.2 |
| 174 |
I8-97601 967-0 |
|
SENSOR; AIR FLOW CONT |
1 |
2203- |
|
FRR |
|
| 515 |
I8-98061 569-1 |
|
PIPE; AIR,SUCTION |
1 |
2203- |
|
FRR |
|
| 530 |
I8-98133 350-0 |
|
CLAMP; AIR DUCT |
1 |
2203- |
|
FRR |
ID=65-85 |
| 199 |
I8-98252 223-0 |
|
BRACKET; PIPE |
1 |
2203- |
|
FRR |
|
