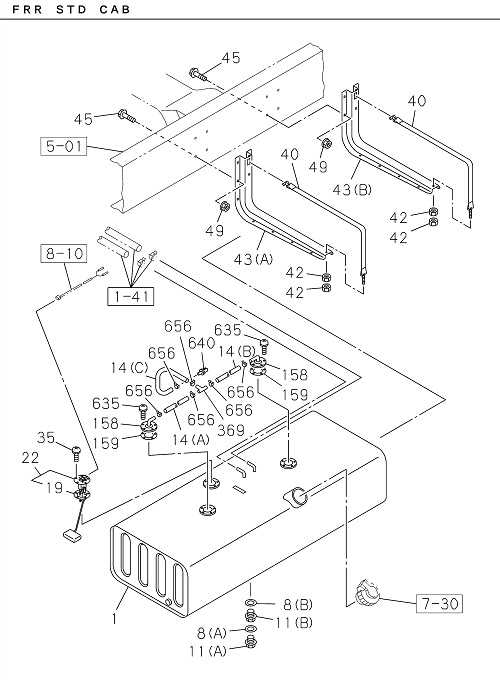

| 158 |
I8-98067 039-0 |
|
VALVE; ROLL OVER & FLOAT |
2 |
2203- |
|
FRR |
|
| 019 |
I5-83148 001-0 |
|
GASKET; FUEL TANK UNIT |
1 |
2203- |
|
FRR |
ID=42 OD=71 |
| 011 |
I8-98068 006-0 |
|
PLUG; DRAIN,FUEL TANK |
1 |
2203- |
|
FRR |
(A) M18X11 |
| 008 |
I9-09571 418-0 |
|
GASKET; DRAIN PLUG,FUEL TANK |
1 |
2203- |
|
FRR |
(A) ID=18.2 OD=26.0 |
| 040 |
I8-98042 715-1 |
|
BELT; SUPPORT,FUEL TANK |
2 |
2203- |
|
FRR |
L=880 |
| 043 |
I8-98088 123-0 |
|
BRACKET; FUEL TANK |
1 |
2203- |
|
FRR |
(A) |
| 640 |
I8-98092 398-0 |
|
VENTILATOR; HOSE,BREATHER |
1 |
2203- |
|
FRR |
|
| 042 |
I0-91110 512-0 |
|
NUT; SUPPORT BELT |
4 |
2203- |
|
FRR |
M12 |
| 045 |
I0-28651 235-0 |
|
BOLT; BRKT,FUEL TANK |
8 |
2203- |
|
FRR |
M12X35 FLANGE |
| 008 |
I8-98067 041-0 |
|
GASKET; DRAIN PLUG,FUEL TANK |
1 |
2203- |
|
FRR |
(B) ID=30 |
| 049 |
I0-91180 212-0 |
|
NUT; BRKT |
8 |
2203- |
|
FRR |
M12 FLANGE |
| 635 |
I0-36220 512-0 |
|
SCREW; ROLL OVER & FLOAT VALVE |
10 |
2203- |
|
FRR |
M5X12 W/LK WASHER |
| 014 |
I8-98304 415-0 |
|
HOSE; BREATHER,OUTLET |
1 |
2203- |
|
FRR |
(B) L=90 |
| 014 |
I8-98304 414-0 |
|
HOSE; BREATHER,OUTLET |
1 |
2203- |
|
FRR |
(C) L=460 |
| 035 |
I0-36220 512-0 |
|
SCREW; FUEL TANK UNIT |
5 |
2203- |
|
FRR |
M5X12 W/LK WASHER |
| 011 |
I8-98067 038-0 |
|
PLUG; DRAIN,FUEL TANK |
1 |
2203- |
|
FRR |
(B) M30 |
| 043 |
I8-98122 883-0 |
|
BRACKET; FUEL TANK |
1 |
2203- |
|
FRR |
(B) |
| 369 |
I8-98067 080-0 |
|
JOINT; HOSE |
1 |
2203- |
|
FRR |
|
| 022 |
I8-98099 320-0 |
|
UNIT; FUEL TANK |
1 |
2203- |
|
FRR |
|
| 001 |
I7-56200 311-B |
|
TANK; FUEL |
1 |
2203- |
|
FRR |
|
| 159 |
I1-83149 003-0 |
|
SEAL; ROLL OVER & FLOAT VALVE |
2 |
2203- |
|
FRR |
ID=45 OD=67 |
| 014 |
I8-98131 037-0 |
|
HOSE; BREATHER,OUTLET |
1 |
2203- |
|
FRR |
(A) L=430 |
| 656 |
I8-98304 416-0 |
|
CLAMP; FUEL TANK |
6 |
2203- |
|
FRR |
|
