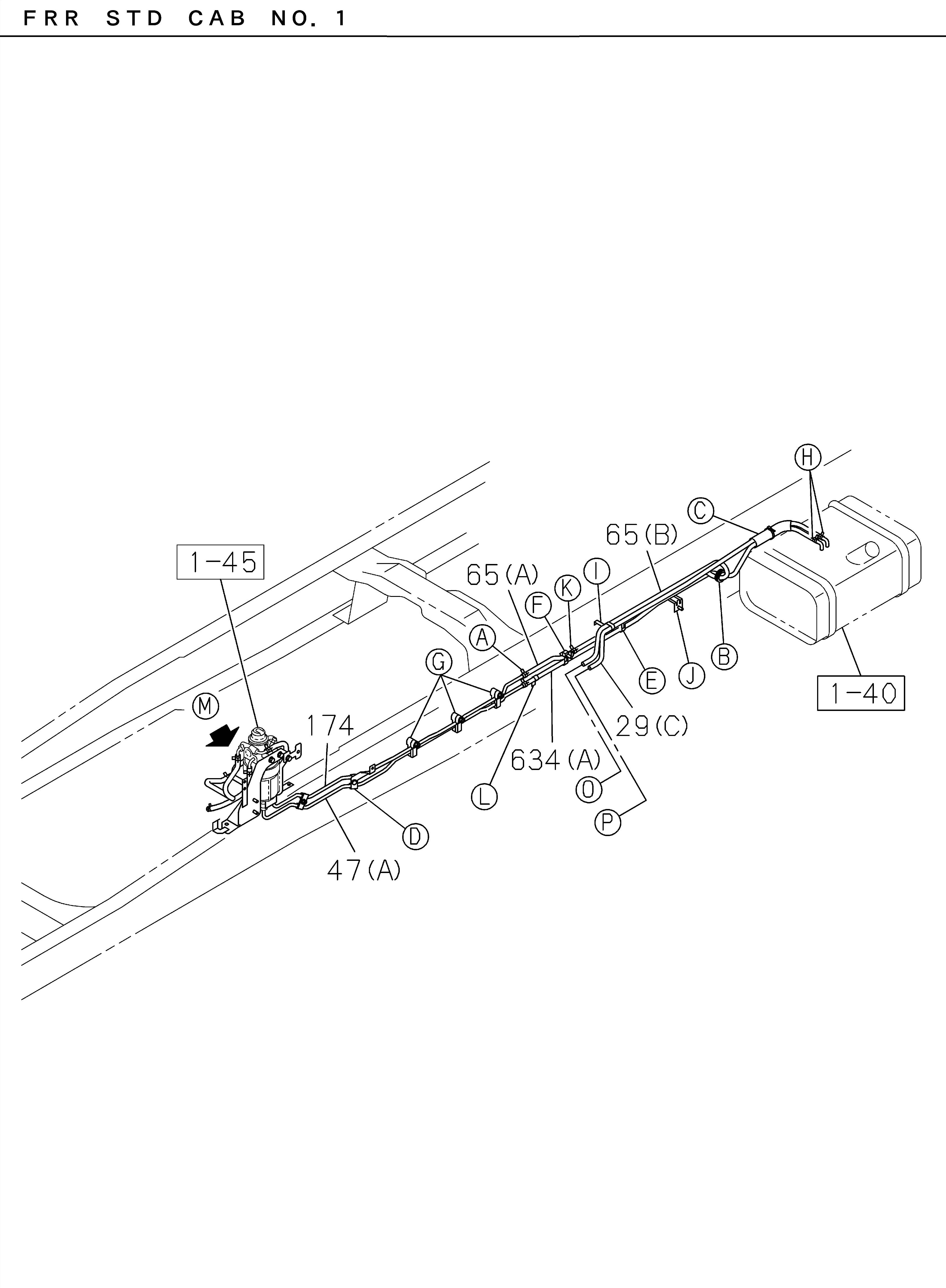

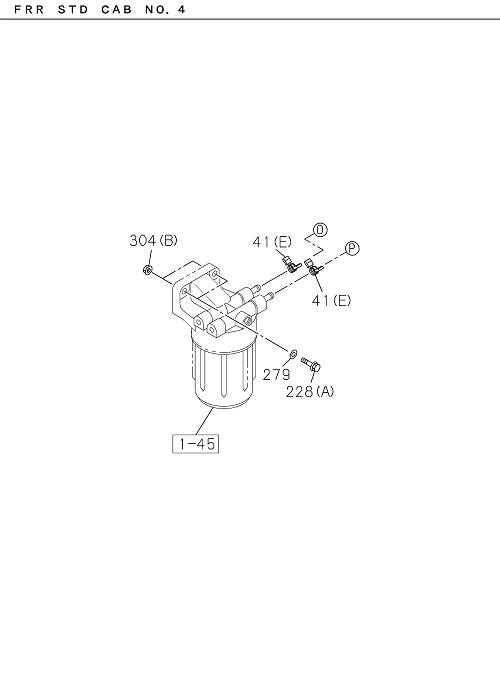

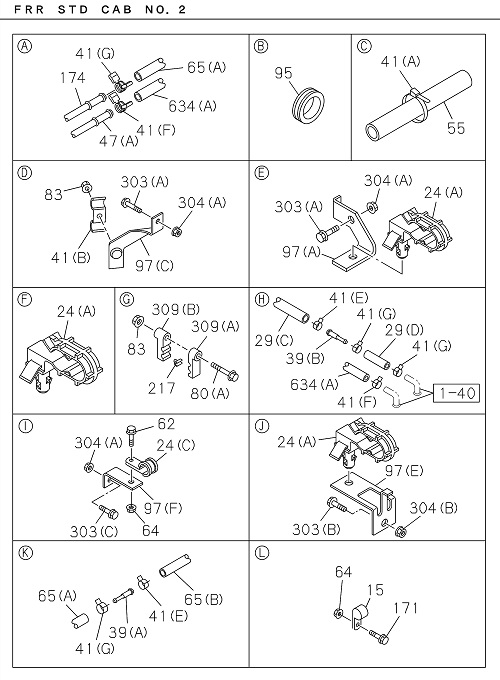

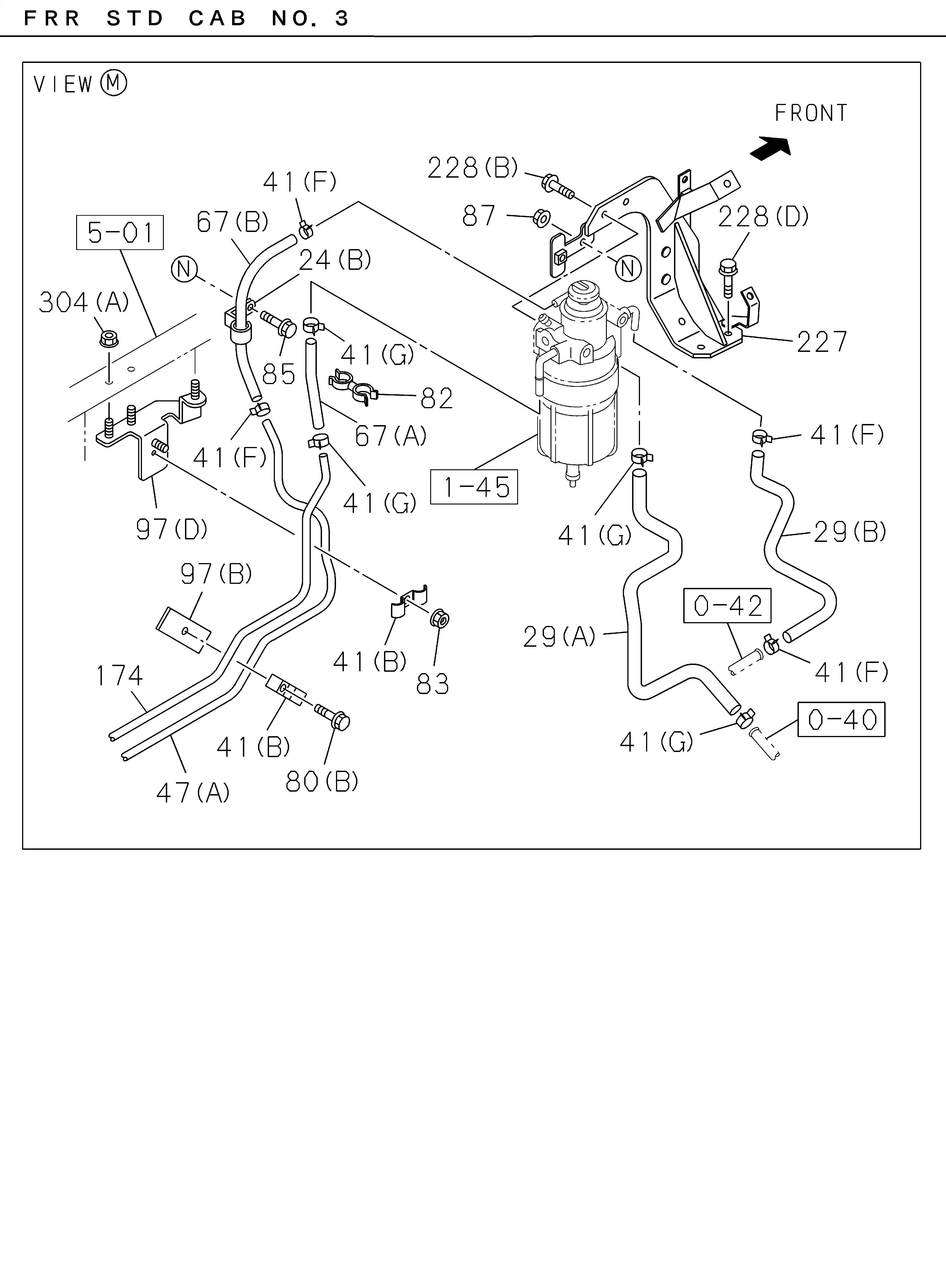

1-41 | FUEL PIPING; CHASSIS
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 015 | I0-95235 235-0 | CLIP; FUEL PIPE | 1 | 2203- | FRR | ID=13 L=20 | ||
| 087 | I7-05108 010-A | NUT; CLIP,FUEL HOSE | 1 | 2203- | FRR | M8 FLANGE | ||
| 097 | I1-47477 713-0 | BRACKET; CLIP | 1 | 2203- | FRR | (F) L=65 | ||
| 041 | I5-09707 030-1 | CLIP; FUEL PIPE,FUEL TANK | 3 | 2203- | FRR | (A) L=250 | ||
| 064 | I7-05108 010-A | NUT; CLIP | 2 | 2203- | FRR | M8 FLANGE | ||
| 080 | I7-04508 025-A | BOLT; CLIP,FUEL TANK | 1 | 2203- | FRR | (B) M8X20 FLANGE | ||
| 065 | I0-01859 300-0 | HOSE; FUEL,DELIVERY PIPE | 1 | 2203- | FRR | (A) L=300 | ||
| 024 | I1-09701 246-1 | CLIP; FUEL HOSE | 4 | 2203- | FRR | (A) ID=14.5 & 14.5 | ||
| 041 | I8-98150 357-0 | CLIP; FUEL PIPE,FUEL TANK | 2 | 2203- | FRR | (F) ID=13 | ||
| 067 | I0-01558 300-0 | HOSE; FUEL,DELIVERY | 1 | 2203- | FRR | (B) L=210 | ||
| 228 | I7-04508 025-A | BOLT; BRKT,SEDIMENTER | 2 | 2203- | FRR | (C) M8X20 FLANGE | ||
| 082 | I8-94473 320-0 | CLIP; FUEL HOSE | 1 | 2203- | FRR | ID=16.5 & 16.5 | ||
| 097 | I8-98078 201-0 | BRACKET; CLIP | 1 | 2203- | FRR | (C) | ||
| 024 | I8-94176 807-1 | CLIP; FUEL HOSE | 1 | 2203- | FRR | (C) ID=21 L=24 | ||
| 228 | I0-28051 050-0 | BOLT; BRKT,SEDIMENTER | 2 | 2203- | FRR | (A) M10X50 FLANGE | ||
| 279 | I0-91614 710-0 | WASHER | 2 | 2203- | FRR | ID=10.5 OD=26 | ||
| 097 | I8-98083 349-0 | BRACKET; CLIP | 1 | 2203- | FRR | (A) | ||
| 055 | I1-09360 677-1 | COVER; PIPE,FUEL TANK | 2 | 2203- | FRR | L=150 | ||
| 309 | I1-09709 243-0 | CLIP; PIPE | 3 | 2203- | FRR | (B) ID=10 & 10 | ||
| 097 | I1-47475 299-2 | BRACKET; CLIP | 1 | 2203- | FRR | (B) L=50 | ||
| 309 | I1-09709 241-0 | CLIP; PIPE | 3 | 2203- | FRR | (A) ID=10 & 10 | ||
| 303 | I0-28650 830-0 | BOLT; BRKT | 1 | 2203- | FRR | (A) M8X30 FLANGE | ||
| 095 | I9-09956 256-2 | BUSHING; PIPE,FUEL TANK | 2 | 2203- | FRR | ID=28 OD=35 T=17 | ||
| 228 | I0-28050 825-0 | BOLT; BRKT,SEDIMENTER | 2 | 2203- | FRR | (D) M8X25 FLANGE | ||
| 039 | I8-98359 701-0 | PIPE; FUEL | 1 | 2203- | FRR | (B) | ||
| 097 | I8-98083 537-0 | BRACKET; CLIP | 1 | 2203- | FRR | (D) | ||
| 080 | I0-28050 850-0 | BOLT; CLIP,FUEL TANK | 3 | 2203- | FRR | (A) M8X50 FLANGE | ||
| 171 | I7-04508 025-A | BOLT; CLIP | 1 | 2203- | FRR | M8X20 FLANGE | ||
| 304 | I7-05110 010-A | NUT; BRKT | 1 | 2203- | FRR | (B) M10 FLANGE | ||
| 067 | I0-01859 300-0 | HOSE; FUEL,DELIVERY | 1 | 2203- | FRR | (F) L=1400 | ||
| 029 | I8-98285 410-A | HOSE; FUEL | 1 | 2203- | FRR | (A) | ||
| 024 | I1-09700 606-0 | CLIP; FUEL HOSE | 1 | 2203- | FRR | (B) ID=15 H=24 L=20 | ||
| 062 | I7-04508 025-A | BOLT; CLIP FIX | 1 | 2203- | FRR | M8X20 FLANGE | ||
| 055 | I8-98077 126-0 | COVER; PIPE,FUEL TANK | 1 | 2203- | FRR | L=50 | ||
| 039 | I8-97645 708-0 | PIPE; FUEL | 1 | 2203- | FRR | (A) | ||
| 634 | I0-01558 300-0 | HOSE; RUBBER RETURN | 1 | 2203- | FRR | (A) L=1500 | ||
| 227 | I8-97244 486-0 | BRACKET; FUEL SEDIMENTER | 1 | 2408- | FRR | |||
| 303 | I0-28651 030-0 | BOLT; BRKT | 1 | 2203- | FRR | (B) M10X30 FLANGE | ||
| 303 | I0-28650 825-0 | BOLT; BRKT | 2 | 2203- | FRR | (C) M8X25 FLANGE | ||
| 227 | I8-98133 172-0 | BRACKET; FUEL SEDIMENTER | 1 | 2203-2407 | FRR | |||
| 174 | I8-98285 411-A | PIPE; FUEL,FEED,FRT | 1 | 2203- | FRR | L=1953 | ||
| 083 | I7-05108 010-A | NUT; CLIP,FUEL TANK | 6 | 2203- | FRR | M8 FLANGE | ||
| 029 | I0-01859 300-0 | HOSE; FUEL | 1 | 2203- | FRR | (D) L=60 | ||
| 029 | I0-01862 125-0 | HOSE; FUEL | 1 | 2203- | FRR | (C) | ||
| 097 | I1-47476 758-0 | BRACKET; CLIP | 1 | 2203- | FRR | (F) L=115 B=25 | ||
| 041 | I8-98150 356-0 | CLIP; FUEL PIPE,FUEL TANK | 4 | 2203- | FRR | (E) ID=19 | ||
| 304 | I7-05110 010-A | NUT; BRKT | 2 | 2203- | FRR | (B) M10 FLANGE | ||
| 047 | I8-98285 412-A | PIPE; FUEL,RETURN | 1 | 2203- | FRR | (A) L=2251 | ||
| 041 | I8-98008 098-0 | CLIP; FUEL PIPE,FUEL TANK | 4 | 2203- | FRR | (G) ID=16 | ||
| 217 | I1-47459 011-0 | COLLAR; FUEL PIPE FIX | 3 | 2203- | FRR | ID=8 | ||
| 097 | I8-98109 768-0 | BRACKET; CLIP | 1 | 2203- | FRR | (E) | ||
| 041 | I1-09700 688-0 | CLIP; FUEL PIPE,FUEL TANK | 3 | 2203- | FRR | (B) ID=11 & 9 L=17.5 & 17.5 | ||
| 304 | I7-05108 010-A | NUT; BRKT | 3 | 2203- | FRR | (A) M8 FLANGE | ||
| 085 | I7-04508 025-A | BOLT; CLIP,FUEL HOSE | 1 | 2203- | FRR | M8X20 FLANGE | ||
| 041 | I8-98150 357-0 | CLIP; FUEL PIPE,FUEL TANK | 4 | 2203- | FRR | (F) ID=13 | ||
| 029 | I8-98078 195-A | HOSE; FUEL | 1 | 2203- | FRR | (B) ID=7.5 OD=13.5 | ||
| 065 | I0-01812 520-0 | HOSE; FUEL,DELIVERY PIPE | 1 | 2203- | FRR | (B) L=520 |
