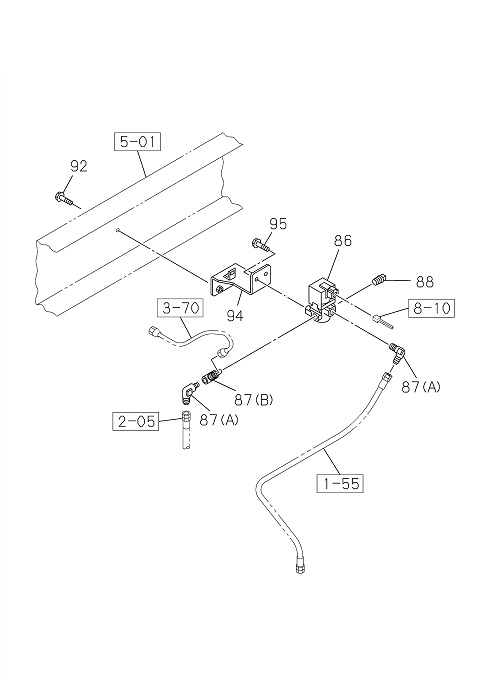

1-56 | EXHAUST BRAKE SYSTEM
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 087 | I1-09656 586-1 | CONNECTOR | 1 | 2203- | FRR | (B) M12 & PT1/4 3WAY | ||
| 087 | I1-09650 430-0 | CONNECTOR | 2 | 2203- | FRR | (A) M12 & PT1/4 ELBOW | ||
| 095 | I7-04508 025-A | BOLT; BRKT,MAG VLV,EXH BRAKE | 2 | 2203- | FRR | M8X20 FLANGE | ||
| 092 | I0-28651 030-0 | BOLT; MAG VLV | 2 | 2203- | FRR | M10X30 FLANGE | ||
| 094 | I8-98078 098-0 | BRACKET; MAG VLV,EXH BRAKE | 1 | 2203- | FRR | |||
| 086 | I8-97948 152-0 | VALVE; MAG,EXH BRK | 1 | 2203- | FRR | |||
| 088 | I9-99204 513-0 | PLUG | 1 | 2203- | FRR | PT1/4 |
