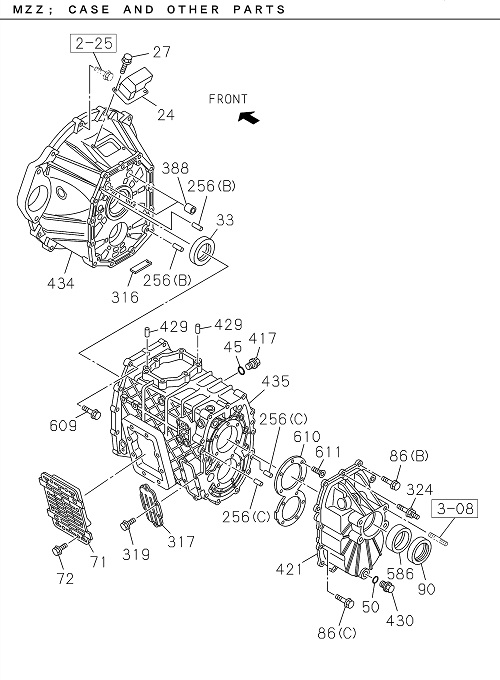

2-20 | MANUAL TRANSMISSION ASM AND CASE
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 611 | I8-97365 354-0 | SCREW | 10 | 2203- | FRR | M10X27 HEXALOBULAR | ||
| 256 | I9-08160 612-0 | PIN; KNOCK | 2 | 2203- | FRR | (C) OD=6 L=12 | ||

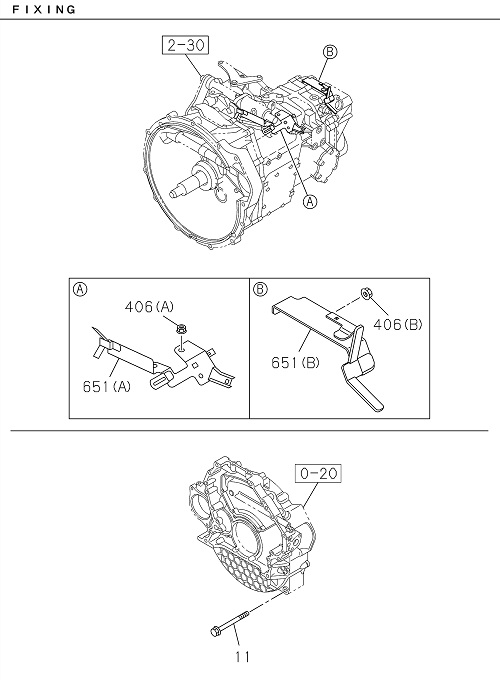

| 651 | I8-98044 568-1 | BRACKET; T/M HARNESS | 1 | 2203- | FRR | (B) | ||
| 086 | I0-28151 040-0 | BOLT RR COVER | 10 | 2203- | FRR | (B) M10X40 FLANGE | ||
| 421 | I8-97238 934-5 | COVER; RR,TRANS | 1 | 2203- | FRR | |||
| 406 | I7-05110 010-A | NUT; BRKT | 1 | 2203- | FRR | (B) M10 FLANGE | ||
| 611 | I8-97365 354-0 | SCREW | 10 | 2203- | FRR | M10X27 HEXALOBULAR | ||
| 256 | I8-97135 423-0 | PIN KNOCK | 2 | 2203- | FRR | (B) OD=10 L=20 | ||
| 086 | I8-97365 377-0 | BOLT RR COVER | 2 | 2203- | FRR | (C) M10X40 FLANGE | ||
| 050 | I8-97115 712-0 | GASKET DRAIN PLUG | 1 | 2203- | FRR | ID=17 | ||
| 417 | I8-98009 333-0 | PLUG OIL FILLER,TRANS | 1 | 2203- | FRR | M20X10.5 | ||
| 045 | I8-97115 712-0 | GASKET; FILLER PLUG | 1 | 2203- | FRR | ID=17 | ||
| 033 | I6-97253 550-0 | SEAL OIL,FRT COVER,T/M | 1 | 2203- | FRR | (IADG) | ||
| 045 | I8-97115 712-0 | GASKET FILLER PLUG | 1 | 2203- | FRR | ID=17 | ||
| 319 | I0-28050 820-0 | BOLT COVER | 6 | 2203- | FRR | M8X20 FLANGE | ||
| 609 | I0-28151 040-0 | BOLT HSG TO CASE | 13 | 2203- | FRR | M10X40 FLANGE | ||
| 072 | I8-98014 142-0 | BOLT; SIDE COVER | 8 | 2203- | FRR | M10X20 FLANGE | ||
| 317 | I8-97252 626-0 | COVER CASE | 1 | 2203- | FRR | |||
| 256 | I9-08160 612-0 | PIN KNOCK | 2 | 2203- | FRR | (C) OD=6 L=12 | ||
| 071 | I8-97252 624-2 | COVER; SIDE,TRANS CASE | 1 | 2203- | FRR | |||
| 033 | I8-97253 550-0 | SEAL; OIL,FRT COVER,T/M | 1 | 2203- | FRR | |||
| 421 | I8-97238 934-5 | COVER RR,TRANS | 1 | 2203- | FRR | |||
| 072 | I8-98014 142-0 | BOLT SIDE COVER | 8 | 2203- | FRR | M10X20 FLANGE | ||
| 609 | I0-28151 040-0 | BOLT; HSG TO CASE | 13 | 2203- | FRR | M10X40 FLANGE | ||
| 011 | I0-28151 225-0 | BOLT; BRKT | 1 | 2203- | FRR | M12X25 FLANGE | ||
| 256 | I8-97135 423-0 | PIN; KNOCK | 2 | 2203- | FRR | (B) OD=10 L=20 | ||
| 429 | I8-97135 423-0 | PIN STRAIGHT | 2 | 2203- | FRR | OD=10 L=20 | ||
| 024 | I8-98284 107-0 | COVER; CHECK HOLE,DUST | 1 | 2203- | FRR | |||
| 033 | I6-97253 550-0 | SEAL; OIL,FRT COVER,T/M | 1 | 2203- | FRR | (IADG) | ||
| 610 | I8-97241 314-2 | RETAINER; BRG | 1 | 2203- | FRR | |||
| 086 | I8-97365 377-0 | BOLT; RR COVER | 2 | 2203- | FRR | (C) M10X40 FLANGE | ||
| 406 | I7-05108 010-A | NUT; BRKT | 2 | 2203- | FRR | (A) M8 FLANGE | ||
| 434 | I8-97382 931-1 | HOUSING CLU | 1 | 2203- | FRR | |||
| 086 | I0-28151 040-0 | BOLT; RR COVER | 10 | 2203- | FRR | (B) M10X40 FLANGE | ||
| 317 | I8-97252 626-0 | COVER; CASE | 1 | 2203- | FRR | |||
| 324 | I8-97365 379-0 | STUD RR COVER | 1 | 2203- | FRR | M10X15,M10X40 L=65 | ||
| 435 | I8-97382 868-2 | CASE; TRANS | 1 | 2203- | FRR | |||
| 050 | I8-97115 712-0 | GASKET; DRAIN PLUG | 1 | 2203- | FRR | ID=17 | ||
| 388 | I8-97241 326-2 | BUSHING; CLU HSG | 2 | 2203- | FRR | |||
| 388 | I8-97241 326-2 | BUSHING CLU HSG | 2 | 2203- | FRR | |||
| 430 | I8-97365 374-0 | PLUG OIL DRAIN | 1 | 2203- | FRR | M20X12 W/MAGNET | ||
| 610 | I8-97241 314-2 | RETAINER BRG | 1 | 2203- | FRR | |||
| 417 | I8-98009 333-0 | PLUG; OIL FILLER,TRANS | 1 | 2203- | FRR | M20X10.5 | ||
| 001 | I8-98171 396-0 | TRANSMISSION ASM; MANUAL | 1 | 2203- | FRR | |||
| 001 | I8-98171 396-0 | TRANSMISSION ASM MANUAL | 1 | 2203- | FRR | |||
| 430 | I8-97365 374-0 | PLUG; OIL DRAIN | 1 | 2203- | FRR | M20X12 W/MAGNET | ||
| 316 | I8-94249 524-2 | MAGNET; TRANS CASE | 1 | 2203- | FRR | |||
| 027 | I0-28050 816-0 | BOLT COVER TO CLU HSG | 2 | 2203- | FRR | M8X16 FLANGE | ||
| 319 | I0-28050 820-0 | BOLT; COVER | 6 | 2203- | FRR | M8X20 FLANGE | ||
| 435 | I8-97382 868-2 | CASE TRANS | 1 | 2203- | FRR | |||
| 406 | I7-05108 010-A | NUT BRKT | 2 | 2203- | FRR | (A) M8 FLANGE | ||
| 586 | I8-97253 108-0 | BEARING NEEDLE | 1 | 2203- | FRR | |||
| 651 | I8-97609 800-3 | BRACKET; T/M HARNESS | 1 | 2203- | FRR | (A) | ||
| 316 | I8-94249 524-2 | MAGNET TRANS CASE | 1 | 2203- | FRR | |||
| 024 | I8-98284 107-0 | COVER CHECK HOLE,DUST | 1 | 2203- | FRR | |||
| 027 | I0-28050 816-0 | BOLT; COVER TO CLU HSG | 2 | 2203- | FRR | M8X16 FLANGE | ||
| 033 | I8-97253 550-0 | SEAL OIL,FRT COVER,T/M | 1 | 2203- | FRR | |||
| 090 | I8-97253 551-1 | SEAL; OIL,RR COVER | 1 | 2203- | FRR | |||
| 586 | I8-97253 108-0 | BEARING; NEEDLE | 1 | 2203- | FRR | |||
| 324 | I8-97365 379-0 | STUD; RR COVER | 1 | 2203- | FRR | M10X15,M10X40 L=65 | ||
| 429 | I8-97135 423-0 | PIN; STRAIGHT | 2 | 2203- | FRR | OD=10 L=20 | ||
| 071 | I8-97252 624-2 | COVER SIDE,TRANS CASE | 1 | 2203- | FRR | |||
| 406 | I7-05110 010-A | NUT BRKT | 1 | 2203- | FRR | (B) M10 FLANGE | ||
| 651 | I8-98044 568-1 | BRACKET T/M HARNESS | 1 | 2203- | FRR | (B) | ||
| 651 | I8-97609 800-3 | BRACKET T/M HARNESS | 1 | 2203- | FRR | (A) | ||
| 011 | I0-28151 225-0 | BOLT BRKT | 1 | 2203- | FRR | M12X25 FLANGE | ||
| 090 | I8-97253 551-1 | SEAL OIL,RR COVER | 1 | 2203- | FRR | |||
| 434 | I8-97382 931-1 | HOUSING; CLU | 1 | 2203- | FRR |
