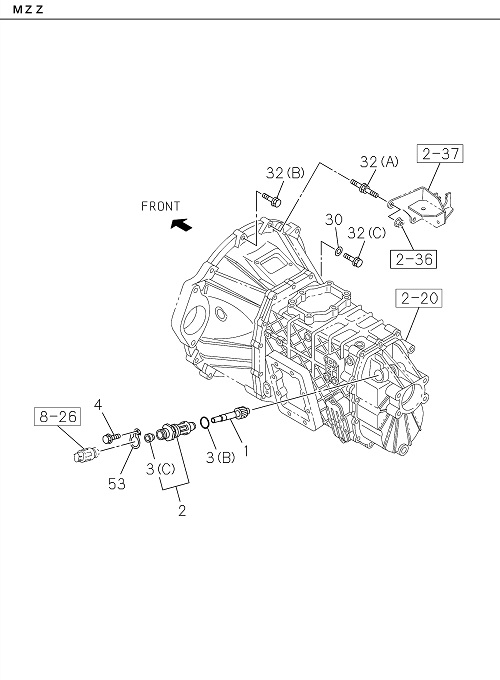

2-25 | SPEEDOMETER DRIVEN GEAR
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 032 | I8-98010 335-0 | BOLT CLU HSG TO FLYWHEEL HSG | 2 | 2203- | FRR | (A) M10X20,M10X45 L=75 | ||
| 032 | I0-28051 045-0 | BOLT; CLU HSG TO FLYWHEEL HSG | 6 | 2203- | FRR | (B) M10X45 FLANGE | ||
| 004 | I7-04508 025-A | BOLT; RET,DRIVEN GEAR | 1 | 2203- | FRR | M8X20 FLANGE | ||
| 053 | I8-98046 217-0 | PLATE LOCK,DRIVEN GEAR | 1 | 2203- | FRR | |||
| 030 | I8-94152 902-0 | WASHER PL,TRANS | 2 | 2203- | FRR | ID=11 OD=24 | ||
| 003 | I8-97131 328-1 | GASKET BUSHING | 1 | 2203- | FRR | (C) | ||
| 032 | I8-97365 449-0 | BOLT CLU HSG TO FLYWHEEL HSG | 2 | 2203- | FRR | (C) M10X55 FLANGE | ||
| 001 | I8-97253 563-1 | GEAR; DRIVEN,SPD | 1 | 2203- | FRR | Z=12 | ||
| 002 | I8-97253 125-0 | BUSHING DRIVEN GEAR, SPEEDOMETER | 1 | 2203- | FRR | MARK "12,13,14,15" | ||
| 002 | I8-97253 125-0 | BUSHING; DRIVEN GEAR, SPEEDOMETER | 1 | 2203- | FRR | MARK "12,13,14,15" | ||
| 053 | I8-98046 217-0 | PLATE; LOCK,DRIVEN GEAR | 1 | 2203- | FRR | |||
| 003 | I8-97131 328-1 | GASKET; BUSHING | 1 | 2203- | FRR | (C) | ||
| 032 | I0-28051 045-0 | BOLT CLU HSG TO FLYWHEEL HSG | 6 | 2203- | FRR | (B) M10X45 FLANGE | ||
| 032 | I8-98010 335-0 | BOLT; CLU HSG TO FLYWHEEL HSG | 2 | 2203- | FRR | (A) M10X20,M10X45 L=75 | ||
| 001 | I8-97253 563-1 | GEAR DRIVEN,SPD | 1 | 2203- | FRR | Z=12 | ||
| 003 | I8-97075 755-0 | GASKET BUSHING | 1 | 2203- | FRR | (B) | ||
| 004 | I7-04508 025-A | BOLT RET,DRIVEN GEAR | 1 | 2203- | FRR | M8X20 FLANGE | ||
| 032 | I8-97365 449-0 | BOLT; CLU HSG TO FLYWHEEL HSG | 2 | 2203- | FRR | (C) M10X55 FLANGE | ||
| 030 | I8-94152 902-0 | WASHER; PL,TRANS | 2 | 2203- | FRR | ID=11 OD=24 | ||
| 003 | I8-97075 755-0 | GASKET; BUSHING | 1 | 2203- | FRR | (B) |
