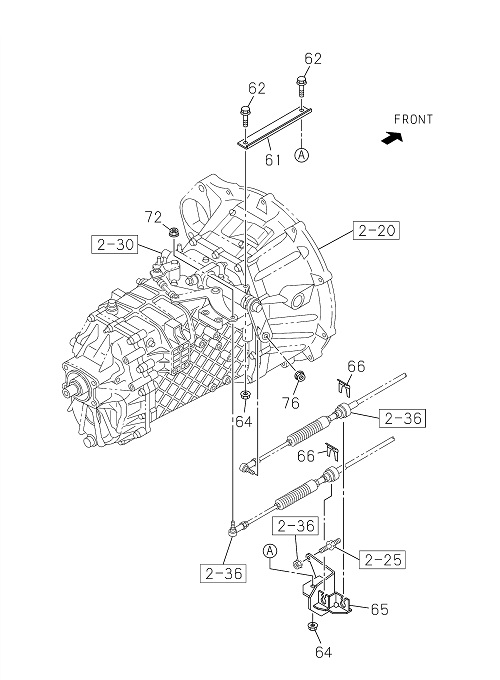

2-37 | MANUAL TRANSMISSION CONT MISSION SIDE
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 064 | I7-05110 010-A | NUT STAY | 2 | 2203- | FRR | M10 FLANGE | ||
| 065 | I8-98167 239-0 | BRACKET SHIFT TO SELECT,TRANS CONT | 1 | 2203- | FRR | |||
| 061 | I1-33657 267-0 | STAY; BRKT,TRANS CONT | 1 | 2203- | FRR | |||
| 061 | I1-33657 267-0 | STAY BRKT,TRANS CONT | 1 | 2203- | FRR | |||
| 066 | I1-09701 209-1 | CLIP SELECT BRKT | 2 | 2203- | FRR | ID=22.2 | ||
| 072 | I1-09440 049-0 | NUT; TRANS CONT,SELECT | 1 | 2203- | FRR | M8 FLANGE | ||
| 064 | I7-05110 010-A | NUT; STAY | 2 | 2203- | FRR | M10 FLANGE | ||
| 062 | I0-28651 030-0 | BOLT STAY | 2 | 2203- | FRR | M10X30 FLANGE | ||
| 065 | I8-98167 239-0 | BRACKET; SHIFT TO SELECT,TRANS CONT | 1 | 2203- | FRR | |||
| 072 | I1-09440 049-0 | NUT TRANS CONT,SELECT | 1 | 2203- | FRR | M8 FLANGE | ||
| 076 | I1-09440 049-0 | NUT; BALL JOINT,SELECT WIRE | 1 | 2203- | FRR | M8 FLANGE | ||
| 076 | I1-09440 049-0 | NUT BALL JOINT,SELECT WIRE | 1 | 2203- | FRR | M8 FLANGE | ||
| 066 | I1-09701 209-1 | CLIP; SELECT BRKT | 2 | 2203- | FRR | ID=22.2 | ||
| 062 | I0-28651 030-0 | BOLT; STAY | 2 | 2203- | FRR | M10X30 FLANGE |
