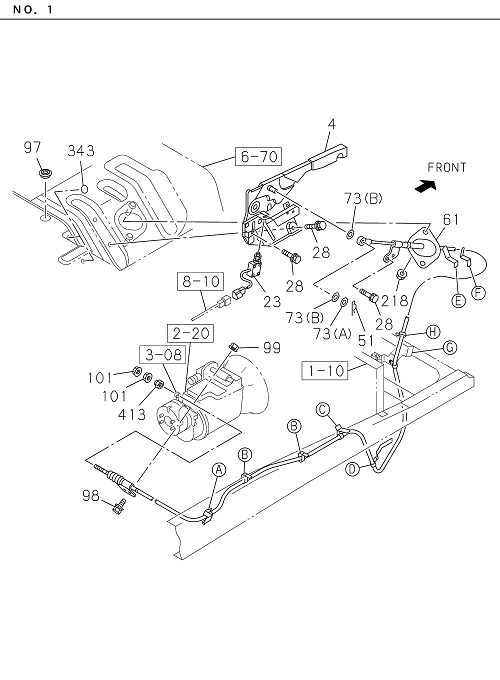

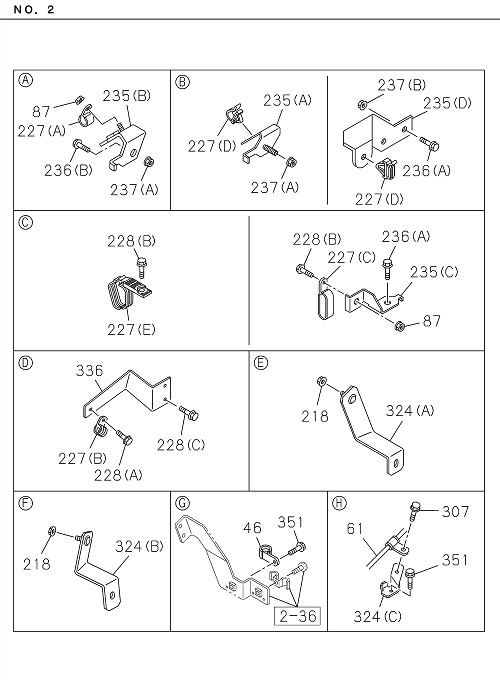

3-11 | PARKING BRAKE CONTROL
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 343 | I1-76798 029-0 | SEAL | 5 | 2203- | FRR | OD=25 BLACK | ||
| 228 | I0-28650 825-0 | BOLT CLIP RAD MTG | 2 | 2203- | FRR | (B) M8X25 FLANGE | ||
| 235 | I8-98100 152-0 | BRACKET CONT CABLE TO FRAME | 1 | 2203- | FRR | (D) | ||
| 004 | I1-79996 548-0 | STEM PARKING BRK | 1 | 2203- | FRR | |||
| 051 | I1-09987 243-1 | PIN; JOINT,RELAY LEVER | 1 | 2203- | FRR | |||
| 099 | I7-05110 010-A | NUT CONT CABLE | 2 | 2203- | FRR | M10 FLANGE | ||
| 099 | I7-05110 010-A | NUT; CONT CABLE | 2 | 2203- | FRR | M10 FLANGE | ||
| 413 | I8-98356 021-0 | JOINT PARK BRK CABLE | 1 | 2203- | FRR | |||
| 343 | I1-76798 029-0 | SEAL | 5 | 2203- | FRR | OD=25 BLACK | ||
| 324 | I8-98067 482-1 | BRACKET | 1 | 2203- | FRR | (C) | ||
| 073 | I0-91610 516-0 | WASHER; PL,CABLE | 1 | 2203- | FRR | (A) ID=17 OD=30 | ||
| 336 | I8-98065 276-0 | BRACKET RADIATOR | 1 | 2203- | FRR | |||
| 023 | I1-82440 100-0 | SWITCH; PARKING BRK | 1 | 2203- | FRR | |||
| 073 | I8-94206 429-1 | WASHER PL,CABLE | 2 | 2203- | FRR | (B) ID=19 | ||
| 097 | I8-94122 971-0 | GROMMET PARKING BRK CABLE | 1 | 2203- | FRR | OD=35 | ||
| 324 | I8-98067 482-1 | BRACKET | 1 | 2203- | FRR | (C) | ||
| 336 | I8-98065 276-0 | BRACKET; RADIATOR | 1 | 2203- | FRR | |||
| 073 | I8-94206 429-1 | WASHER; PL,CABLE | 2 | 2203- | FRR | (B) ID=19 | ||
| 073 | I0-91610 516-0 | WASHER PL,CABLE | 1 | 2203- | FRR | (A) ID=17 OD=30 | ||
| 235 | I8-98126 426-0 | BRACKET; CONT CABLE TO FRAME | 1 | 2203- | FRR | (C) | ||
| 236 | I0-28650 825-0 | BOLT BRKT TO FRAME | 3 | 2203- | FRR | (A) M8X25 FLANGE | ||
| 228 | I0-28050 816-0 | BOLT CLIP RAD MTG | 1 | 2203- | FRR | (A) M8X16 FLANGE | ||
| 061 | I8-98171 946-A | CABLE PARKING BRK | 1 | 2203- | FRR | L=4253 | ||
| 046 | I0-95235 235-0 | CLIP FRT CABLE TO FLOOR | 1 | 2203- | FRR | ID=13 L=20 | ||
| 228 | I0-28650 825-0 | BOLT; CLIP RAD MTG | 2 | 2203- | FRR | (B) M8X25 FLANGE | ||
| 228 | I0-28050 816-0 | BOLT; CLIP RAD MTG | 1 | 2203- | FRR | (A) M8X16 FLANGE | ||
| 227 | I5-09709 020-0 | CLIP RAD | 1 | 2203- | FRR | (D) ID=9.5 | ||
| 087 | I7-05108 010-A | NUT | 2 | 2203- | FRR | M8 FLANGE | ||
| 228 | I8-98051 939-0 | BOLT CLIP RAD MTG | 2 | 2203- | FRR | (C) M8X16 W/LK&PL WASHER | ||
| 413 | I8-98356 021-0 | JOINT; PARK BRK CABLE | 1 | 2203- | FRR | |||
| 307 | I0-51640 825-0 | BOLT; BRKT,PARKING BRK CABLE | 1 | 2203- | FRR | M8X25 W/WASHER | ||
| 051 | I1-09987 243-1 | PIN JOINT,RELAY LEVER | 1 | 2203- | FRR | |||
| 098 | I0-28651 030-0 | BOLT; RR COVER | 1 | 2203- | FRR | M10X30 FLANGE | ||
| 023 | I1-82440 100-0 | SWITCH PARKING BRK | 1 | 2203- | FRR | |||
| 351 | I0-51640 825-0 | BOLT; CLIP | 3 | 2203- | FRR | M8X25 W/WASHER | ||
| 028 | I8-98059 720-0 | BOLT; HAND BRK LEVER | 3 | 2203- | FRR | M8X24.5 W/LK&PL WASHER | ||
| 237 | I7-05108 010-A | NUT BRKT TO FRAME | 2 | 2203- | FRR | (B) M8 FLANGE | ||
| 101 | I7-05108 010-A | NUT CABLE TO LEVER | 2 | 2203- | FRR | M8 FLANGE | ||
| 307 | I0-51640 825-0 | BOLT BRKT,PARKING BRK CABLE | 1 | 2203- | FRR | M8X25 W/WASHER | ||
| 004 | I1-79996 548-0 | STEM; PARKING BRK | 1 | 2203- | FRR | |||
| 227 | I5-09709 020-0 | CLIP; RAD | 1 | 2203- | FRR | (D) ID=9.5 | ||
| 235 | I8-98100 152-0 | BRACKET; CONT CABLE TO FRAME | 1 | 2203- | FRR | (D) | ||
| 218 | I7-05108 010-A | NUT; BRKT,PARKING BRK CABLE | 2 | 2203- | FRR | M8 FLANGE | ||
| 227 | I0-95235 535-0 | CLIP; RAD | 1 | 2203- | FRR | (A) ID=16 L=20 | ||
| 061 | I8-98171 946-A | CABLE; PARKING BRK | 1 | 2203- | FRR | L=4253 | ||
| 351 | I0-51640 825-0 | BOLT CLIP | 3 | 2203- | FRR | M8X25 W/WASHER | ||
| 236 | I0-28650 825-0 | BOLT; BRKT TO FRAME | 3 | 2203- | FRR | (A) M8X25 FLANGE | ||
| 227 | I8-98292 921-0 | CLIP RAD | 1 | 2203- | FRR | (E) ID=13 & 10 & 10 L=43.5 | ||
| 235 | I8-98126 426-0 | BRACKET CONT CABLE TO FRAME | 1 | 2203- | FRR | (C) | ||
| 227 | I0-95235 535-0 | CLIP RAD | 1 | 2203- | FRR | (A) ID=16 L=20 | ||
| 228 | I8-98051 939-0 | BOLT; CLIP RAD MTG | 2 | 2203- | FRR | (C) M8X16 W/LK&PL WASHER | ||
| 046 | I0-95235 235-0 | CLIP; FRT CABLE TO FLOOR | 1 | 2203- | FRR | ID=13 L=20 | ||
| 227 | I1-09701 236-0 | CLIP; RAD | 1 | 2203- | FRR | (B) ID=26 L=26 | ||
| 227 | I8-97389 264-0 | CLIP; RAD | 1 | 2203- | FRR | (C) ID=13 & 13 L=32 | ||
| 237 | I7-05108 010-A | NUT; BRKT TO FRAME | 2 | 2203- | FRR | (B) M8 FLANGE | ||
| 028 | I8-98059 720-0 | BOLT HAND BRK LEVER | 3 | 2203- | FRR | M8X24.5 W/LK&PL WASHER | ||
| 227 | I8-98292 921-0 | CLIP; RAD | 1 | 2203- | FRR | (E) ID=13 & 10 & 10 L=43.5 | ||
| 087 | I7-05108 010-A | NUT | 2 | 2203- | FRR | M8 FLANGE | ||
| 101 | I7-05108 010-A | NUT; CABLE TO LEVER | 2 | 2203- | FRR | M8 FLANGE | ||
| 098 | I0-28651 030-0 | BOLT RR COVER | 1 | 2203- | FRR | M10X30 FLANGE | ||
| 218 | I7-05108 010-A | NUT BRKT,PARKING BRK CABLE | 2 | 2203- | FRR | M8 FLANGE | ||
| 227 | I8-97389 264-0 | CLIP RAD | 1 | 2203- | FRR | (C) ID=13 & 13 L=32 | ||
| 227 | I1-09701 236-0 | CLIP RAD | 1 | 2203- | FRR | (B) ID=26 L=26 | ||
| 097 | I8-94122 971-0 | GROMMET; PARKING BRK CABLE | 1 | 2203- | FRR | OD=35 |
