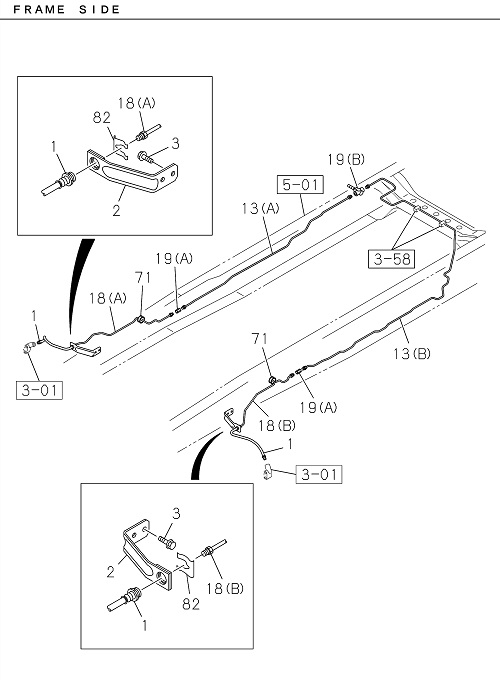

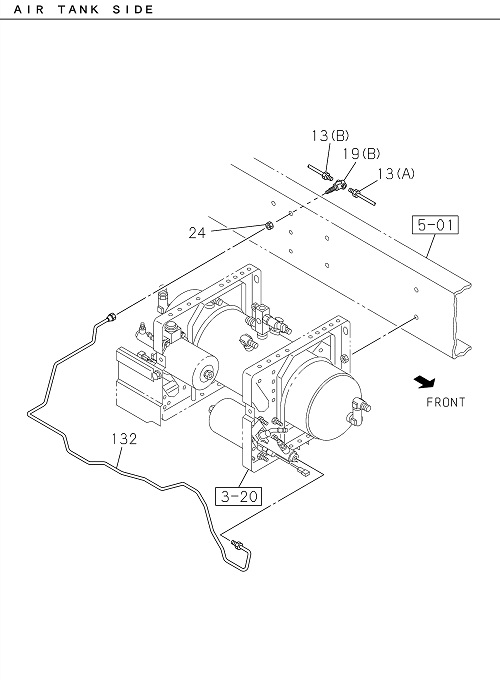

3-52 | BRAKE PIPING OIL,FRONT

Partial Engine Partial Engine

GIGA E4

GIGA FRR E4

Key PART NO ITC DESCRIPTION QTY APP DATE LR MODEL REMARKS
013 I8-98067 417-A PIPE OIL,UNION TO UNION 1 2203- FRR (A) RH LINE L=967
018 I8-98067 426-A PIPE OIL,UNION TO FRT FLEX HOSE 1 2203- FRR (A) RH LINE L=567
013 I8-98113 684-A PIPE; OIL,UNION TO UNION 1 2203- FRR (B) LH LINE L=1891
132 I8-98213 211-0 PIPE OIL,BRK,HYD UNIT 1 2203- FRR L=1505
082 I8-97360 054-0 PLATE FLEX HOSE 2 2203- FRR
002 I8-98011 946-1 BRACKET; FLEX HOSE,FRT BRK 2 2203- FRR
001 I8-98172 789-0 HOSE FLEX,FRT BRK 2 2203- FRR L=480
082 I8-97360 054-0 PLATE; FLEX HOSE 2 2203- FRR
003 I0-28650 825-0 BOLT; BRKT,FLEX HOSE,FRT BRK 4 2203- FRR M8X25 FLANGE
132 I8-98213 211-0 PIPE; OIL,BRK,HYD UNIT 1 2203- FRR L=1505
024 I1-09400 029-0 NUT; UNION,OIL PIPE 1 2203- FRR M10 H=8
002 I8-98011 946-1 BRACKET FLEX HOSE,FRT BRK 2 2203- FRR
019 I0-92107 005-0 UNION OIL PIPE 2 2203- FRR (A) M10X2 STRAIGHT
071 I9-09956 092-A GROMMET OIL PIPE 2 2203- FRR ID=24 OD=30 T=17
024 I1-09400 029-0 NUT UNION,OIL PIPE 1 2203- FRR M10 H=8
019 I0-92107 005-0 UNION; OIL PIPE 2 2203- FRR (A) M10X2 STRAIGHT
013 I8-98067 417-A PIPE; OIL,UNION TO UNION 1 2203- FRR (A) RH LINE L=967
001 I8-98172 789-0 HOSE; FLEX,FRT BRK 2 2203- FRR L=480
018 I8-98065 376-A PIPE OIL,UNION TO FRT FLEX HOSE 1 2203- FRR (B) LH LINE L=1016
019 I8-98113 738-0 UNION OIL PIPE 1 2203- FRR (B) M10X3 3WAY
071 I9-09956 092-A GROMMET; OIL PIPE 2 2203- FRR ID=24 OD=30 T=17
018 I8-98065 376-A PIPE; OIL,UNION TO FRT FLEX HOSE 1 2203- FRR (B) LH LINE L=1016
019 I8-98113 738-0 UNION; OIL PIPE 1 2203- FRR (B) M10X3 3WAY
003 I0-28650 825-0 BOLT BRKT,FLEX HOSE,FRT BRK 4 2203- FRR M8X25 FLANGE
018 I8-98067 426-A PIPE; OIL,UNION TO FRT FLEX HOSE 1 2203- FRR (A) RH LINE L=567
013 I8-98113 684-A PIPE OIL,UNION TO UNION 1 2203- FRR (B) LH LINE L=1891
