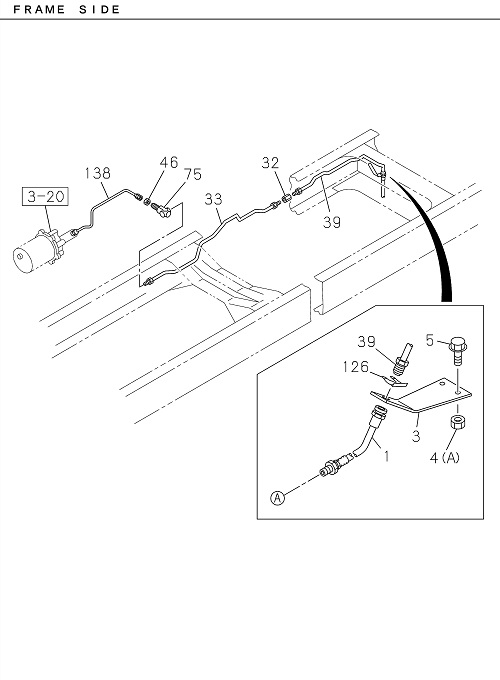

3-55 | BRAKE PIPING OIL,REAR
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 001 | I8-98175 918-0 | HOSE FLEX,RR BRK | 1 | 2203- | FRR | L=520 | ||
| 046 | I1-09400 029-0 | NUT UNION,OIL PIPE | 1 | 2203- | FRR | M10 H=8 | ||
| 032 | I0-92107 005-0 | UNION; OIL PIPE | 1 | 2203- | FRR | M10X2 STRAIGHT | ||
| 033 | I8-98183 304-A | PIPE OIL,UNION TO UNION | 1 | 2203- | FRR | L=2923 | ||
| 075 | I8-98018 438-0 | UNION; OIL PIPE | 1 | 2203- | FRR | M10X2 ELBOW | ||
| 138 | I8-98213 366-A | PIPE HYDRAULIC UNIT | 1 | 2203- | FRR | L=697 | ||
| 013 | I1-47427 105-A | PIPE; BRK,RR AXLE | 1 | 2203- | FRR | (A) L=675 | ||
| 075 | I8-98018 438-0 | UNION OIL PIPE | 1 | 2203- | FRR | M10X2 ELBOW | ||
| 033 | I8-98183 304-A | PIPE; OIL,UNION TO UNION | 1 | 2203- | FRR | L=2923 | ||
| 126 | I8-97360 054-0 | CLIP FLEX HOSE | 1 | 2203- | FRR | |||
| 039 | I8-98175 941-A | PIPE OIL,UNION TO RR FLEX HOSE | 1 | 2203- | FRR | L=2100 | ||
| 013 | I1-47427 106-A | PIPE; BRK,RR AXLE | 1 | 2203- | FRR | (B) L=847 | ||
| 138 | I8-98213 366-A | PIPE; HYDRAULIC UNIT | 1 | 2203- | FRR | L=697 | ||
| 005 | I0-28650 830-0 | BOLT BRKT,FLEX HOSE,RR BRK | 2 | 2203- | FRR | M8X30 FLANGE | ||
| 001 | I8-98175 918-0 | HOSE; FLEX,RR BRK | 1 | 2203- | FRR | L=520 | ||
| 039 | I8-98175 941-A | PIPE; OIL,UNION TO RR FLEX HOSE | 1 | 2203- | FRR | L=2100 | ||
| 046 | I1-09400 029-0 | NUT; UNION,OIL PIPE | 1 | 2203- | FRR | M10 H=8 | ||
| 004 | I7-05108 010-A | NUT; BRKT,FLEX HOSE,RR BRK | 2 | 2203- | FRR | (A) M8 FLANGE | ||
| 005 | I0-28650 830-0 | BOLT; BRKT,FLEX HOSE,RR BRK | 2 | 2203- | FRR | M8X30 FLANGE | ||
| 013 | I1-47427 105-A | PIPE BRK,RR AXLE | 1 | 2203- | FRR | (A) L=675 | ||
| 126 | I8-97360 054-0 | CLIP; FLEX HOSE | 1 | 2203- | FRR | |||
| 004 | I7-05108 010-A | NUT BRKT,FLEX HOSE,RR BRK | 2 | 2203- | FRR | (A) M8 FLANGE | ||
| 013 | I1-47427 106-A | PIPE BRK,RR AXLE | 1 | 2203- | FRR | (B) L=847 | ||
| 003 | I8-98175 942-0 | BRACKET FLEX HOSE,RR BRK | 1 | 2203- | FRR | |||
| 003 | I8-98175 942-0 | BRACKET; FLEX HOSE,RR BRK | 1 | 2203- | FRR | |||
| 032 | I0-92107 005-0 | UNION OIL PIPE | 1 | 2203- | FRR | M10X2 STRAIGHT |
