3-77 | BRAKE PIPING AIR,REAR
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

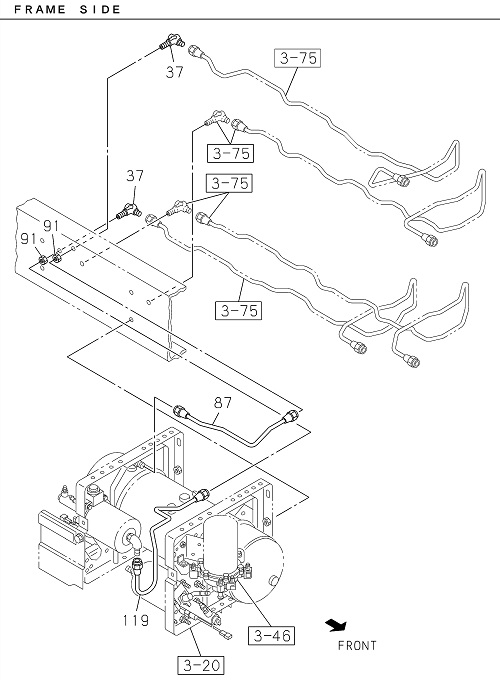

| 091 | I0-91111 516-0 | NUT PIPE UNION | 2 | 2203- | FRR | M16 | ||
| 037 | I0-92135 210-0 | UNION AIR PIPE | 2 | 2203- | FRR | M16 ELBOW | ||
| 050 | I7-05108 010-A | NUT UNION BRKT | 2 | 2203- | FRR | M8 FLANGE | ||
| 087 | I1-47428 868-0 | PIPE; AIR,AIR TANK TO UNION | 1 | 2203- | FRR | L=586 | ||
| 119 | I1-47428 871-0 | PIPE AIR,VLV TO AIR MASTER | 1 | 2203- | FRR | L=729 | ||
| 091 | I0-91111 516-0 | NUT; PIPE UNION | 2 | 2203- | FRR | M16 | ||
| 087 | I1-47428 868-0 | PIPE AIR,AIR TANK TO UNION | 1 | 2203- | FRR | L=586 | ||

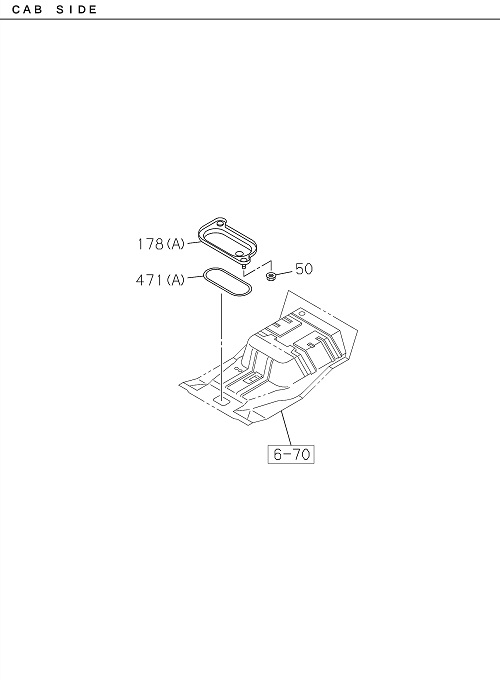

| 178 | I8-98017 052-1 | BRACKET; UNION | 1 | 2203- | FRR | (A) | ||
| 050 | I7-05108 010-A | NUT; UNION BRKT | 2 | 2203- | FRR | M8 FLANGE | ||
| 178 | I8-98017 052-1 | BRACKET UNION | 1 | 2203- | FRR | (A) | ||
| 037 | I0-92135 210-0 | UNION; AIR PIPE | 2 | 2203- | FRR | M16 ELBOW | ||
| 119 | I1-47428 871-0 | PIPE; AIR,VLV TO AIR MASTER | 1 | 2203- | FRR | L=729 | ||
| 471 | I1-79738 832-0 | SEAL; BRKT | 1 | 2203- | FRR | (A) | ||
| 471 | I1-79738 832-0 | SEAL BRKT | 1 | 2203- | FRR | (A) |
