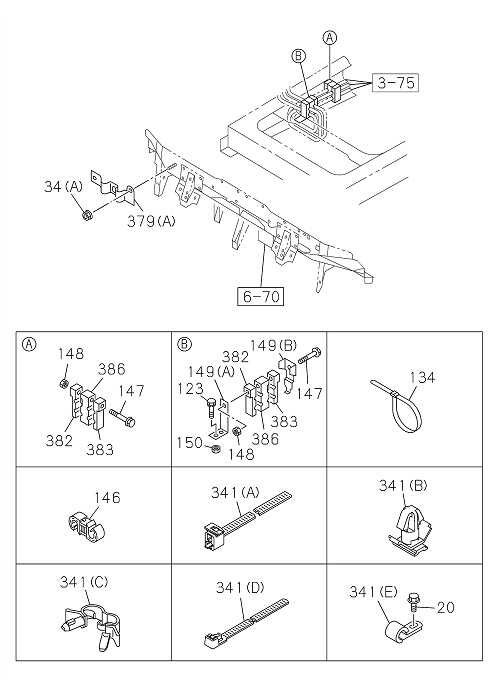

3-78 | FIXING PARTS AIR PIPING
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 379 | I8-98044 013-0 | BRACKET NYLON TUBE | 1 | 2203- | FRR | (A) | ||
| 034 | I0-91180 106-0 | NUT; BRKT | 2 | 2203- | FRR | (A) M6 FLANGE | ||
| 382 | I1-09709 241-0 | CLIP; UPR | 3 | 2203- | FRR | ID=10 & 10 | ||
| 341 | I1-09709 178-0 | CLIP HARNESS | 2 | 2203- | FRR | (B) OD=9 H=6 | ||
| 341 | I0-95235 035-0 | CLIP HARNESS | 1 | 2203- | FRR | (E) ID=11 L=20 | ||
| 020 | I7-04508 025-A | BOLT; CLIP | 1 | 2203- | FRR | M8X20 FLANGE | ||
| 341 | I9-09917 544-0 | CLIP; HARNESS | 1 | 2203- | FRR | (E) ID=11 L=28 | ||
| 148 | I7-05108 010-A | NUT PIPE CLIP | 3 | 2203- | FRR | M8 FLANGE | ||
| 147 | I0-28050 870-0 | BOLT; PIPE CLIP | 3 | 2203- | FRR | M8X70 FLANGE | ||
| 146 | I1-09709 277-1 | CLIP AIR PIPE | 2 | 2203- | FRR | ID=10 & 10 | ||
| 382 | I1-09709 241-0 | CLIP UPR | 3 | 2203- | FRR | ID=10 & 10 | ||
| 341 | I5-09707 030-1 | CLIP; HARNESS | 2 | 2203- | FRR | (D) L=250 | ||
| 149 | I8-98296 534-0 | BRACKET PIPE CLIP | 1 | 2203- | FRR | (A) | ||
| 341 | I1-09709 178-0 | CLIP; HARNESS | 2 | 2203- | FRR | (B) OD=9 H=6 | ||
| 123 | I0-28650 825-0 | BOLT; PIPE CLIP | 2 | 2203- | FRR | M8X25 FLANGE | ||
| 123 | I0-28650 825-0 | BOLT PIPE CLIP | 2 | 2203- | FRR | M8X25 FLANGE | ||
| 134 | I1-09707 183-0 | CLIP AIR PIPE | 1 | 2203- | FRR | L=350 | ||
| 341 | I1-09987 221-0 | CLIP; HARNESS | 2 | 2203- | FRR | (C) ID=5-12 L=14.5 | ||
| 341 | I5-09707 030-1 | CLIP HARNESS | 2 | 2203- | FRR | (D) L=250 | ||
| 149 | I8-98356 579-0 | BRACKET; PIPE CLIP | 1 | 2203- | FRR | (B) | ||
| 341 | I1-09707 162-1 | CLIP; HARNESS | 1 | 2203- | FRR | (A) L=180 | ||
| 146 | I1-09709 277-1 | CLIP; AIR PIPE | 2 | 2203- | FRR | ID=10 & 10 | ||
| 148 | I7-05108 010-A | NUT; PIPE CLIP | 3 | 2203- | FRR | M8 FLANGE | ||
| 149 | I8-98356 579-0 | BRACKET PIPE CLIP | 1 | 2203- | FRR | (B) | ||
| 150 | I7-05108 010-A | NUT CLIP BRKT | 2 | 2203- | FRR | M8 FLANGE | ||
| 379 | I8-98044 013-0 | BRACKET; NYLON TUBE | 1 | 2203- | FRR | (A) | ||
| 034 | I0-91180 106-0 | NUT BRKT | 2 | 2203- | FRR | (A) M6 FLANGE | ||
| 383 | I1-09709 241-0 | CLIP LWR | 3 | 2203- | FRR | ID=10 & 10 | ||
| 341 | I9-09917 544-0 | CLIP HARNESS | 1 | 2203- | FRR | (E) ID=11 L=28 | ||
| 341 | I1-09707 162-1 | CLIP HARNESS | 1 | 2203- | FRR | (A) L=180 | ||
| 150 | I7-05108 010-A | NUT; CLIP BRKT | 2 | 2203- | FRR | M8 FLANGE | ||
| 147 | I0-28050 870-0 | BOLT PIPE CLIP | 3 | 2203- | FRR | M8X70 FLANGE | ||
| 386 | I1-09709 242-0 | CLIP CENTER | 3 | 2203- | FRR | ID=10 | ||
| 020 | I0-28051 030-0 | BOLT CLIP | 1 | 2203- | FRR | M10X30 FLANGE | ||
| 020 | I0-28051 030-0 | BOLT; CLIP | 1 | 2203- | FRR | M10X30 FLANGE | ||
| 383 | I1-09709 241-0 | CLIP; LWR | 3 | 2203- | FRR | ID=10 & 10 | ||
| 149 | I8-98296 534-0 | BRACKET; PIPE CLIP | 1 | 2203- | FRR | (A) | ||
| 134 | I1-09707 183-0 | CLIP; AIR PIPE | 1 | 2203- | FRR | L=350 | ||
| 341 | I0-95235 035-0 | CLIP; HARNESS | 1 | 2203- | FRR | (E) ID=11 L=20 | ||
| 386 | I1-09709 242-0 | CLIP; CENTER | 3 | 2203- | FRR | ID=10 | ||
| 341 | I1-09987 221-0 | CLIP HARNESS | 2 | 2203- | FRR | (C) ID=5-12 L=14.5 | ||
| 020 | I7-04508 025-A | BOLT CLIP | 1 | 2203- | FRR | M8X20 FLANGE |
