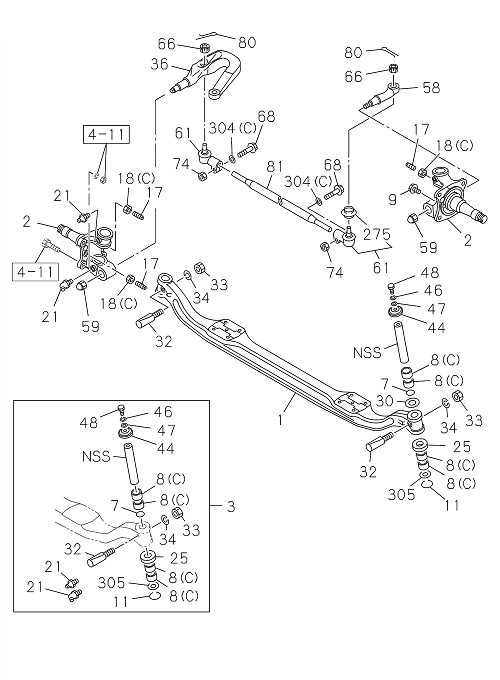

4-10 | FRONT AXLE
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 033 | I0-91110 510-0 | NUT KEY BOLT | 2 | 2203- | FRR | M10 | ||
| 068 | I0-28061 245-0 | BOLT; TIE ROD END | 2 | 2203- | FRR | M12X45 FLANGE | ||
| 018 | I0-91112 814-0 | NUT; STOPPER BOLT,KNUCKLE | 3 | 2203- | FRR | (C) M14 | ||
| 275 | I1-85574 063-0 | BOOT ROD END,TIE | 2 | 2203- | FRR | W/GREASE | ||
| 305 | I1-43175 030-0 | COVER; KNUCKLE | 2 | 2203- | FRR | |||
| 030 | I1-43171 319-0 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=4.262 | ||
| 030 | I1-43171 320-0 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=4.275 | ||
| 046 | I0-91510 512-0 | WASHER; LK,COVER | 2 | 2203- | FRR | ID=12.2 | ||
| 030 | I1-43171 276-1 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=4.087 | ||
| 044 | I1-43175 031-0 | COVER; KING PIN | 2 | 2203- | FRR | |||
| 030 | I1-43171 315-0 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=4.212 | ||
| 030 | I1-43171 270-1 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=4.012 | ||
| 030 | I1-43171 279-1 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=4.125 | ||
| 021 | I0-90301 510-0 | NIPPLE; GREASE,KING PIN | 2 | 2203- | FRR | PT1/8 ELBOW 67.5 DEGREES | ||
| 011 | I1-09589 017-1 | RING SNAP,KNUCKLE PLUG | 2 | 2203- | FRR | |||
| 030 | I1-43171 311-0 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=4.162 | ||
| 030 | I1-43171 324-0 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=4.325 | ||
| 059 | I1-09449 082-0 | NUT TIE ROD ARM | 2 | 2203- | FRR | M27 FLANGE | ||
| 030 | I1-43171 265-1 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=3.950 | ||
| 025 | I1-09829 033-1 | BEARING; THRUST,KING PIN | 1 | 2203- | FRR | |||
| 030 | I1-43171 268-1 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=3.987 | ||
| 030 | I1-43171 319-0 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=4.262 | ||
| 030 | I1-43171 261-1 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=3.900 | ||
| 030 | I1-43171 324-0 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=4.325 | ||
| 030 | I1-43171 263-1 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=3.925 | ||
| 030 | I1-43171 281-1 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=4.150 | ||
| 030 | I1-43171 272-1 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=4.037 | ||
| 002 | I8-98172 432-1 | KNUCKLE; FRT AXLE | 1 | 2203- | FRR | |||
| 047 | I0-91614 712-0 | WASHER; PL,COVER,KING PIN | 2 | 2203- | FRR | ID=12.5 OD=32 | ||
| 030 | I1-43171 322-0 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=4.300 | ||
| 068 | I0-28061 245-0 | BOLT TIE ROD END | 2 | 2203- | FRR | M12X45 FLANGE | ||
| 074 | I0-91110 512-0 | NUT; TIE ROD END | 2 | 2203- | FRR | M12 | ||
| 002 | I8-98172 431-1 | KNUCKLE FRT AXLE | 1 | 2203- | FRR | |||
| 061 | I1-43150 749-1 | ROD END TIE ROD | 1 | 2203- | FRR | |||
| 030 | I1-43171 322-0 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=4.300 | ||
| 007 | I1-09625 005-1 | SEAL; OIL,KING PIN | 2 | 2203- | FRR | |||
| 032 | I1-43116 013-0 | BOLT KEY,KING PIN | 2 | 2203- | FRR | |||
| 030 | I1-43171 271-1 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=4.025 | ||
| 030 | I1-43171 269-1 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=4.000 | ||
| 017 | I8-98065 261-0 | BOLT STOPPER KNUCKLE | 2 | 2203- | FRR | M14X53 | ||
| 080 | I0-81124 022-0 | PIN; SPLIT,ROD END | 2 | 2203- | FRR | OD=3.7 L=22 | ||
| 080 | I0-81124 022-0 | PIN SPLIT,ROD END | 2 | 2203- | FRR | OD=3.7 L=22 | ||
| 030 | I1-43171 326-0 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=4.350 | ||
| 003 | I1-87831 295-3 | KING PIN SET | 1 | 2203- | FRR | |||
| 030 | I1-43171 264-1 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=3.937 | ||
| 030 | I1-43171 312-0 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=4.175 | ||
| 030 | I1-43171 274-1 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=4.062 | ||
| 030 | I1-43171 315-0 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=4.212 | ||
| 030 | I1-43171 318-0 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=4.250 | ||
| 081 | I8-98038 703-1 | ROD TIE | 1 | 2203- | FRR | |||
| 304 | I9-09164 512-0 | WASHER; PL | 2 | 2203- | FRR | (C) ID=12.5 | ||
| 030 | I1-43171 325-0 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=4.337 | ||
| 046 | I0-91510 512-0 | WASHER LK,COVER | 2 | 2203- | FRR | ID=12.2 | ||
| 033 | I0-91110 510-0 | NUT; KEY BOLT | 2 | 2203- | FRR | M10 | ||
| 061 | I1-43150 748-1 | ROD END; TIE ROD | 1 | 2203- | FRR | |||
| 030 | I1-43171 270-1 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=4.012 | ||
| 030 | I1-43171 274-1 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=4.062 | ||
| 030 | I1-43171 313-0 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=4.187 | ||
| 009 | I8-97329 621-0 | PLUG; KNUCKLE | 1 | 2203- | FRR | M14X14 | ||
| 030 | I1-43171 312-0 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=4.175 | ||
| 275 | I1-85574 063-0 | BOOT; ROD END,TIE | 2 | 2203- | FRR | W/GREASE | ||
| 030 | I1-43171 272-1 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=4.037 | ||
| 034 | I0-91510 510-0 | WASHER; LK,KEY BOLT | 2 | 2203- | FRR | ID=10.2 | ||
| 030 | I1-43171 323-0 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=4.312 | ||
| 001 | I8-98057 479-2 | AXLE; FRT | 1 | 2203- | FRR | |||
| 030 | I1-43171 314-0 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=4.200 | ||
| 030 | I1-43171 269-1 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=4.000 | ||
| 030 | I1-43171 317-0 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=4.237 | ||
| 030 | I1-43171 321-0 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=4.287 | ||
| 030 | I1-43171 275-1 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=4.075 | ||
| 066 | I1-09442 021-1 | NUT; TIE ROD END | 2 | 2203- | FRR | M16 SLOTTED | ||
| 030 | I1-43171 276-1 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=4.087 | ||
| 048 | I1-09009 081-0 | BOLT; COVER | 2 | 2203- | FRR | M12X25 | ||
| 061 | I1-43150 749-1 | ROD END; TIE ROD | 1 | 2203- | FRR | |||
| 030 | I1-43171 323-0 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=4.312 | ||
| 030 | I1-43171 321-0 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=4.287 | ||
| 048 | I1-09009 081-0 | BOLT COVER | 2 | 2203- | FRR | M12X25 | ||
| 008 | I1-09811 339-0 | BEARING; NEEDLE,KING PIN | 8 | 2203- | FRR | (C) | ||
| 030 | I1-43171 280-1 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=4.137 | ||
| 030 | I1-43171 262-1 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=3.912 | ||
| 030 | I1-43171 316-0 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=4.225 | ||
| 030 | I1-43171 278-1 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=4.112 | ||
| 018 | I0-91112 814-0 | NUT STOPPER BOLT,KNUCKLE | 3 | 2203- | FRR | (C) M14 | ||
| 030 | I1-43171 326-0 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=4.350 | ||
| 030 | I1-43171 279-1 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=4.125 | ||
| 030 | I1-43171 273-1 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=4.050 | ||
| 047 | I0-91614 712-0 | WASHER PL,COVER,KING PIN | 2 | 2203- | FRR | ID=12.5 OD=32 | ||
| 030 | I1-43171 281-1 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=4.150 | ||
| 011 | I1-09589 017-1 | RING; SNAP,KNUCKLE PLUG | 2 | 2203- | FRR | |||
| 025 | I1-09829 031-0 | BEARING; THRUST,KING PIN | 1 | 2203- | FRR | |||
| 032 | I1-43116 013-0 | BOLT; KEY,KING PIN | 2 | 2203- | FRR | |||
| 001 | I8-98057 479-2 | AXLE FRT | 1 | 2203- | FRR | |||
| 044 | I1-43175 031-0 | COVER KING PIN | 2 | 2203- | FRR | |||
| 017 | I8-98065 261-0 | BOLT; STOPPER KNUCKLE | 2 | 2203- | FRR | M14X53 | ||
| 030 | I1-43171 267-1 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=3.975 | ||
| 003 | I1-87831 296-3 | KING PIN SET | 1 | 2203- | FRR | |||
| 036 | I8-98037 304-1 | ARM KNUCKLE | 1 | 2203- | FRR | |||
| 021 | I0-90301 510-0 | NIPPLE GREASE,KING PIN | 2 | 2203- | FRR | PT1/8 ELBOW 67.5 DEGREES | ||
| 030 | I1-43171 275-1 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=4.075 | ||
| 030 | I1-43171 318-0 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=4.250 | ||
| 030 | I1-43171 265-1 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=3.950 | ||
| 066 | I1-09442 021-1 | NUT TIE ROD END | 2 | 2203- | FRR | M16 SLOTTED | ||
| 009 | I8-97329 621-0 | PLUG KNUCKLE | 1 | 2203- | FRR | M14X14 | ||
| 030 | I1-43171 313-0 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=4.187 | ||
| 003 | I1-87831 295-3 | KING PIN SET | 1 | 2203- | FRR | |||
| 030 | I1-43171 280-1 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=4.137 | ||
| 030 | I1-43171 267-1 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=3.975 | ||
| 030 | I1-43171 264-1 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=3.937 | ||
| 074 | I0-91110 512-0 | NUT TIE ROD END | 2 | 2203- | FRR | M12 | ||
| 030 | I1-43171 278-1 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=4.112 | ||
| 034 | I0-91510 510-0 | WASHER LK,KEY BOLT | 2 | 2203- | FRR | ID=10.2 | ||
| 036 | I8-98037 304-1 | ARM; KNUCKLE | 1 | 2203- | FRR | |||
| 025 | I1-09829 033-1 | BEARING THRUST,KING PIN | 1 | 2203- | FRR | |||
| 030 | I1-43171 263-1 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=3.925 | ||
| 030 | I1-43171 268-1 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=3.987 | ||
| 059 | I1-09449 082-0 | NUT; TIE ROD ARM | 2 | 2203- | FRR | M27 FLANGE | ||
| 030 | I1-43171 314-0 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=4.200 | ||
| 017 | I1-09009 058-0 | BOLT; STOPPER KNUCKLE | 1 | 2203- | FRR | M14X47 | ||
| 030 | I1-43171 317-0 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=4.237 | ||
| 021 | I0-90301 410-0 | NIPPLE; GREASE,KING PIN | 2 | 2203- | FRR | PT1/8 STRAIGHT | ||
| 081 | I8-98038 703-1 | ROD; TIE | 1 | 2203- | FRR | |||
| 030 | I1-43171 316-0 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=4.225 | ||
| 030 | I1-43171 277-1 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=4.100 | ||
| 030 | I1-43171 273-1 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=4.050 | ||
| 058 | I8-98037 296-2 | ARM; TIE ROD | 1 | 2203- | FRR | |||
| 030 | I1-43171 266-1 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=3.962 | ||
| 030 | I1-43171 320-0 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=4.275 | ||
| 017 | I1-09009 058-0 | BOLT STOPPER KNUCKLE | 1 | 2203- | FRR | M14X47 | ||
| 058 | I8-98037 296-2 | ARM TIE ROD | 1 | 2203- | FRR | |||
| 030 | I1-43171 277-1 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=4.100 | ||
| 030 | I1-43171 311-0 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=4.162 | ||
| 025 | I1-09829 031-0 | BEARING THRUST,KING PIN | 1 | 2203- | FRR | |||
| 021 | I0-90301 410-0 | NIPPLE GREASE,KING PIN | 2 | 2203- | FRR | PT1/8 STRAIGHT | ||
| 003 | I1-87831 296-3 | KING PIN SET | 1 | 2203- | FRR | |||
| 304 | I9-09164 512-0 | WASHER PL | 2 | 2203- | FRR | (C) ID=12.5 | ||
| 002 | I8-98172 432-1 | KNUCKLE FRT AXLE | 1 | 2203- | FRR | |||
| 007 | I1-09625 005-1 | SEAL OIL,KING PIN | 2 | 2203- | FRR | |||
| 030 | I1-43171 325-0 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=4.337 | ||
| 030 | I1-43171 261-1 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=3.900 | ||
| 008 | I1-09811 339-0 | BEARING NEEDLE,KING PIN | 8 | 2203- | FRR | (C) | ||
| 061 | I1-43150 748-1 | ROD END TIE ROD | 1 | 2203- | FRR | |||
| 030 | I1-43171 271-1 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=4.025 | ||
| 030 | I1-43171 262-1 | WASHER; THRUST,KING PIN | AR | 2203- | FRR | T=3.912 | ||
| 305 | I1-43175 030-0 | COVER KNUCKLE | 2 | 2203- | FRR | |||
| 002 | I8-98172 431-1 | KNUCKLE; FRT AXLE | 1 | 2203- | FRR | |||
| 030 | I1-43171 266-1 | WASHER THRUST,KING PIN | AR | 2203- | FRR | T=3.962 |
