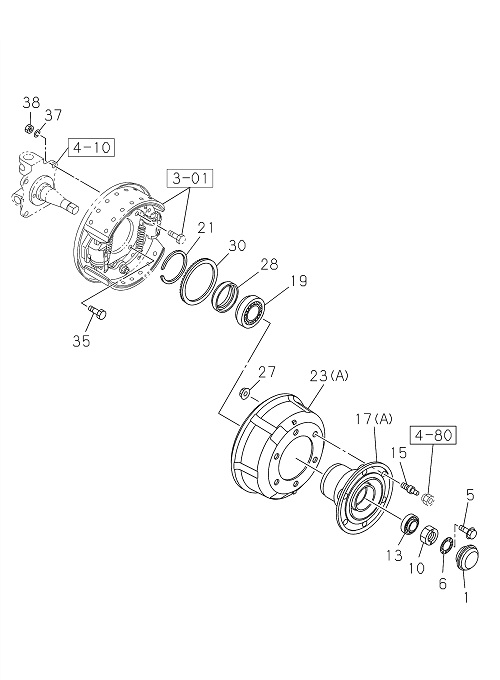

4-11 | FRONT HUB AND DRUM OR ROTOR
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 019 | I1-09812 206-0 | BEARING; HUB INNER,FRT AXLE | 2 | 2203- | FRR | |||
| 013 | I1-09812 207-A | BEARING; HUB OUTER,FRT AXLE | 2 | 2203- | FRR | (IADG) | ||
| 013 | I1-09812 207-0 | BEARING HUB OUTER,FRT AXLE | 2 | 2203- | FRR | |||
| 001 | I1-42313 032-0 | CAP; HUB,FRT AXLE | 2 | 2203- | FRR | |||
| 038 | I0-91110 514-0 | NUT BACK PLATE | 8 | 2203- | FRR | M14 | ||
| 015 | I1-42331 112-1 | PIN WHEEL,FRT AXLE | 6 | 2203- | FRR | M24X37.5,M22X51.5 RH THREAD | ||
| 035 | I0-20951 445-0 | BOLT DRUM COVER | 8 | 2203- | FRR | M14X45 | ||
| 027 | I1-09440 065-0 | NUT; WHEEL PIN,FRT AXLE | 12 | 2203- | FRR | M22 FLANGE | ||
| 006 | I1-09841 003-0 | WASHER LK,FRT HUB | 2 | 2203- | FRR | ID=39 | ||
| 010 | I8-97682 880-0 | NUT; FRT HUB BRG | 2 | 2203- | FRR | M39 | ||
| 023 | I1-42315 359-A | DRUM; BRK,FRT | 2 | 2203- | FRR | (A) | ||
| 013 | I1-09812 207-A | BEARING HUB OUTER,FRT AXLE | 2 | 2203- | FRR | (IADG) | ||
| 028 | I1-09625 568-0 | SEAL OIL,FRT HUB | 2 | 2203- | FRR | |||
| 010 | I8-97682 880-0 | NUT FRT HUB BRG | 2 | 2203- | FRR | M39 | ||
| 037 | I0-91510 814-0 | WASHER LK,BACK PLATE | 8 | 2203- | FRR | ID=14.2 | ||
| 017 | I1-42312 104-A | HUB; FRT AXLE | 2 | 2203- | FRR | (A) | ||
| 015 | I1-42332 112-1 | PIN; WHEEL,FRT AXLE | 6 | 2203- | FRR | M24X37.5 LH THREAD,M22X51.5 RH THREAD | ||
| 038 | I0-91110 514-0 | NUT; BACK PLATE | 8 | 2203- | FRR | M14 | ||
| 028 | I1-09625 568-0 | SEAL; OIL,FRT HUB | 2 | 2203- | FRR | |||
| 027 | I1-09440 065-0 | NUT WHEEL PIN,FRT AXLE | 12 | 2203- | FRR | M22 FLANGE | ||
| 005 | I0-28650 616-0 | BOLT; LK WASHER | 4 | 2203- | FRR | M6X16 FLANGE | ||
| 035 | I0-20951 445-0 | BOLT; DRUM COVER | 8 | 2203- | FRR | M14X45 | ||
| 015 | I1-42331 112-1 | PIN; WHEEL,FRT AXLE | 6 | 2203- | FRR | M24X37.5,M22X51.5 RH THREAD | ||
| 005 | I0-28650 616-0 | BOLT LK WASHER | 4 | 2203- | FRR | M6X16 FLANGE | ||
| 019 | I1-09812 206-0 | BEARING HUB INNER,FRT AXLE | 2 | 2203- | FRR | |||
| 006 | I1-09841 003-0 | WASHER; LK,FRT HUB | 2 | 2203- | FRR | ID=39 | ||
| 019 | I1-09812 206-A | BEARING HUB INNER,FRT AXLE | 2 | 2203- | FRR | (IADG) | ||
| 017 | I1-42312 104-A | HUB FRT AXLE | 2 | 2203- | FRR | (A) | ||
| 015 | I1-42332 112-1 | PIN WHEEL,FRT AXLE | 6 | 2203- | FRR | M24X37.5 LH THREAD,M22X51.5 RH THREAD | ||
| 037 | I0-91510 814-0 | WASHER; LK,BACK PLATE | 8 | 2203- | FRR | ID=14.2 | ||
| 013 | I1-09812 207-0 | BEARING; HUB OUTER,FRT AXLE | 2 | 2203- | FRR | |||
| 021 | I1-09587 001-0 | RING SNAP,HUB | 2 | 2203- | FRR | OD=117 | ||
| 019 | I1-09812 206-A | BEARING; HUB INNER,FRT AXLE | 2 | 2203- | FRR | (IADG) | ||
| 028 | I6-09625 568-0 | SEAL OIL,FRT HUB | 2 | 2203- | FRR | (IADG) | ||
| 001 | I1-42313 032-0 | CAP HUB,FRT AXLE | 2 | 2203- | FRR | |||
| 028 | I6-09625 568-0 | SEAL; OIL,FRT HUB | 2 | 2203- | FRR | (IADG) | ||
| 023 | I1-42315 359-A | DRUM BRK,FRT | 2 | 2203- | FRR | (A) | ||
| 021 | I1-09587 001-0 | RING; SNAP,HUB | 2 | 2203- | FRR | OD=117 |
