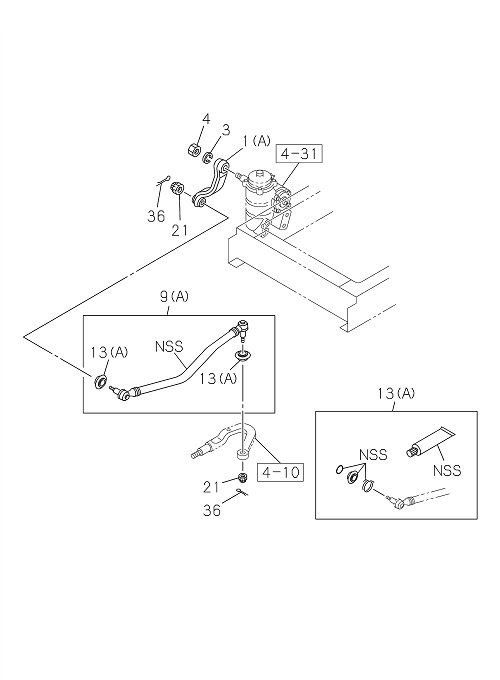

4-33 | STEERING LINKAGE
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 036 | I0-81124 025-0 | PIN SPLIT,DRAG LINK | 2 | 2203- | FRR | OD=3.7 L=25 | ||
| 013 | I1-85574 063-0 | BOOT; DRAG LINK | 2 | 2203- | FRR | (A) W/GREASE | ||
| 036 | I0-81124 025-0 | PIN; SPLIT,DRAG LINK | 2 | 2203- | FRR | OD=3.7 L=25 | ||
| 009 | I1-44380 321-0 | LINK; DRAG | 1 | 2203- | FRR | (A) | ||
| 003 | I1-09500 055-0 | WASHER LK,PITMAN ARM | 1 | 2203- | FRR | ID=30.5 | ||
| 009 | I1-44380 321-0 | LINK DRAG | 1 | 2203- | FRR | (A) | ||
| 021 | I1-09442 021-1 | NUT LK,JOINT BALL | 2 | 2203- | FRR | M16 SLOTTED | ||
| 013 | I1-85574 063-0 | BOOT DRAG LINK | 2 | 2203- | FRR | (A) W/GREASE | ||
| 021 | I1-09442 021-1 | NUT; LK,JOINT BALL | 2 | 2203- | FRR | M16 SLOTTED | ||
| 004 | I1-09400 166-0 | NUT; PITMAN ARM | 1 | 2203- | FRR | M30 | ||
| 004 | I1-09400 166-0 | NUT PITMAN ARM | 1 | 2203- | FRR | M30 | ||
| 003 | I1-09500 055-0 | WASHER; LK,PITMAN ARM | 1 | 2203- | FRR | ID=30.5 | ||
| 001 | I8-98053 721-1 | ARM PITMAN,STRG | 1 | 2203- | FRR | (A) | ||
| 001 | I8-98053 721-1 | ARM; PITMAN,STRG | 1 | 2203- | FRR | (A) |
