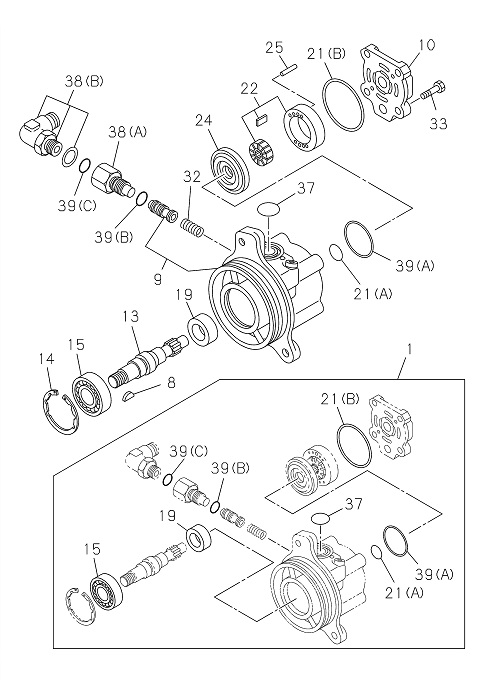

4-42 | POWER STEERING OIL PUMP
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 019 | I1-19519 256-0 | SEAL; OIL,OIL PUMP | 1 | 2203- | FRR | |||
| 032 | I8-94475 376-0 | SPRING; OIL PUMP | 1 | 2203- | FRR | |||
| 021 | I8-97182 099-0 | GASKET; FRT COVER TO BODY | 1 | 2203- | FRR | (A) | ||
| 001 | I1-85574 073-0 | REPAIR KIT OIL PUMP | 1 | 2203- | FRR | |||
| 015 | I9-00090 211-0 | BEARING BALL,OIL PUMP | 1 | 2203- | FRR | |||
| 014 | I1-19519 257-0 | RING RET,OIL PUMP | 1 | 2203- | FRR | |||
| 038 | I8-98072 517-0 | CONNECTOR OIL PUMP | 1 | 2203- | FRR | (B) | ||
| 014 | I1-19519 257-0 | RING; RET,OIL PUMP | 1 | 2203- | FRR | |||
| 021 | I1-19519 345-0 | GASKET FRT COVER TO BODY | 1 | 2203- | FRR | (B) | ||
| 038 | I8-98072 517-0 | CONNECTOR; OIL PUMP | 1 | 2203- | FRR | (B) | ||
| 025 | I1-33739 271-0 | PIN HSG,P/S | 2 | 2203- | FRR | |||
| 033 | I1-19519 346-1 | BOLT COVER | 4 | 2203- | FRR | |||
| 039 | I1-19519 308-0 | GASKET; OIL PUMP | 1 | 2203- | FRR | (C) | ||
| 008 | I9-19519 089-0 | KEY SHAFT,OIL PUMP | 1 | 2203- | FRR | |||
| 038 | I1-19519 343-1 | CONNECTOR OIL PUMP | 1 | 2203- | FRR | (A) | ||
| 022 | I1-19519 341-0 | CARTRIDGE ASM OIL PUMP | 1 | 2203- | FRR | |||
| 021 | I8-97182 099-0 | GASKET FRT COVER TO BODY | 1 | 2203- | FRR | (A) | ||
| 024 | I8-97182 103-0 | PLATE ASM THRUST | 1 | 2203- | FRR | |||
| 037 | I1-33739 070-0 | GASKET PIPE CONN,OIL PUMP | 1 | 2203- | FRR | |||
| 032 | I8-94475 376-0 | SPRING OIL PUMP | 1 | 2203- | FRR | |||
| 010 | I1-19511 160-0 | BODY ASM RR,OIL PUMP | 1 | 2203- | FRR | |||
| 009 | I1-19511 158-1 | BODY ASM FRT,OIL PUMP | 1 | 2203- | FRR | |||
| 039 | I1-19519 259-0 | GASKET OIL PUMP | 1 | 2203- | FRR | (A) | ||
| 019 | I1-19519 256-0 | SEAL OIL,OIL PUMP | 1 | 2203- | FRR | |||
| 037 | I1-33739 070-0 | GASKET; PIPE CONN,OIL PUMP | 1 | 2203- | FRR | |||
| 033 | I1-19519 346-1 | BOLT; COVER | 4 | 2203- | FRR | |||
| 038 | I1-19519 343-1 | CONNECTOR; OIL PUMP | 1 | 2203- | FRR | (A) | ||
| 039 | I1-19519 308-0 | GASKET OIL PUMP | 1 | 2203- | FRR | (C) | ||
| 001 | I1-85574 073-0 | REPAIR KIT; OIL PUMP | 1 | 2203- | FRR | |||
| 008 | I9-19519 089-0 | KEY; SHAFT,OIL PUMP | 1 | 2203- | FRR | |||
| 039 | I9-48429 028-0 | GASKET; OIL PUMP | 1 | 2203- | FRR | (B) | ||
| 025 | I1-33739 271-0 | PIN; HSG,P/S | 2 | 2203- | FRR | |||
| 024 | I8-97182 103-0 | PLATE ASM; THRUST | 1 | 2203- | FRR | |||
| 039 | I9-48429 028-0 | GASKET OIL PUMP | 1 | 2203- | FRR | (B) | ||
| 022 | I1-19519 341-0 | CARTRIDGE ASM; OIL PUMP | 1 | 2203- | FRR | |||
| 009 | I1-19511 158-1 | BODY ASM; FRT,OIL PUMP | 1 | 2203- | FRR | |||
| 013 | I1-19521 038-0 | SHAFT KIT; RET | 1 | 2203- | FRR | |||
| 013 | I1-19521 038-0 | SHAFT KIT RET | 1 | 2203- | FRR | |||
| 015 | I9-00090 211-0 | BEARING; BALL,OIL PUMP | 1 | 2203- | FRR | |||
| 021 | I1-19519 345-0 | GASKET; FRT COVER TO BODY | 1 | 2203- | FRR | (B) | ||
| 010 | I1-19511 160-0 | BODY ASM; RR,OIL PUMP | 1 | 2203- | FRR | |||
| 039 | I1-19519 259-0 | GASKET; OIL PUMP | 1 | 2203- | FRR | (A) |
