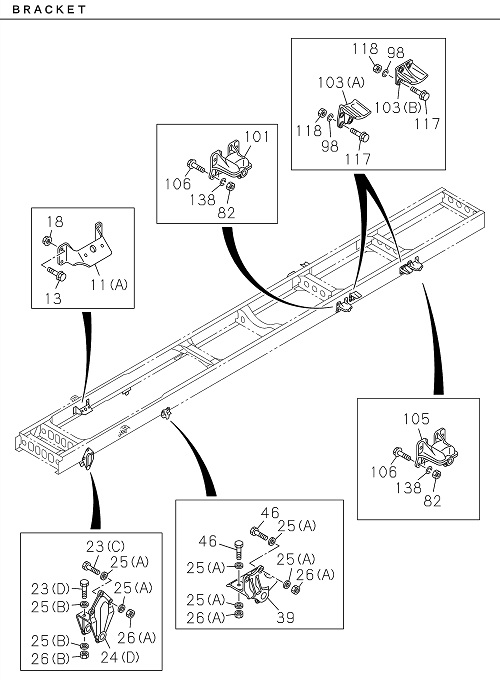

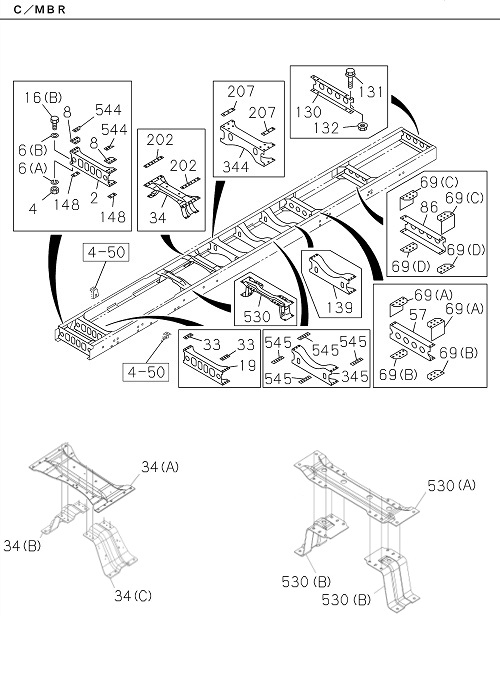

5-01 | FRAME AND OTHER PARTS
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 034 | I8-97695 012-A | MEMBER; CROSS,3RD | 1 | 2203- | FRR | (B) LOWER | ||
| 016 | I0-20851 440-0 | BOLT 1ST C/MBR TO S/MBR | 2 | 2203- | FRR | (B) M14X40 | ||
| 207 | I8-97609 758-0 | SPACER 4TH C/MBR | 2 | 2203- | FRR | |||
| 016 | I0-20851 230-0 | BOLT; 1ST C/MBR TO S/MBR | 2 | 2203- | FRR | (A) M12X30 | ||
| 530 | I8-97695 013-A | MEMBER; CROSS,T/M | 1 | 2203- | FRR | (A) | ||
| 004 | I0-91110 514-0 | NUT 1ST C/MBR TO S/MBR | 2 | 2203- | FRR | M14 | ||
| 117 | I0-20951 450-0 | BOLT; STOPPER | 16 | 2203- | FRR | M14X50 | ||
| 106 | I0-20951 450-0 | BOLT BRKT | 10 | 2203- | FRR | M14X50 | ||
| 082 | I0-91110 514-0 | NUT; BRKT | 10 | 2203- | FRR | M14 | ||
| 345 | I8-97695 010-A | MEMBER; CROSS,5TH | 1 | 2203- | FRR | |||
| 019 | I8-97695 008-A | MEMBER CROSS,2ND | 1 | 2203- | FRR | |||
| 023 | I0-20951 450-0 | BOLT; BRKT,SPR | 8 | 2203- | FRR | (C) M14X50 | ||
| 008 | I8-97695 124-A | GUSSET 1ST C/MBR | 1 | 2203- | FRR | |||
| 013 | I0-28661 235-0 | BOLT; BRKT,ENG MTG | 8 | 2203- | FRR | M12X35 FLANGE | ||
| 363 | I0-28661 225-0 | BOLT GUSSET | 4 | 2203- | FRR | M12X25 FLANGE | ||
| 077 | I8-97695 003-A | MEMBER; CROSS,TRUNNION RR | 2 | 2203- | FRR | |||
| 545 | I8-97609 758-0 | SPACER 5TH C/MBR | 2 | 2203- | FRR | LOWER | ||
| 031 | I8-98082 176-0 | BUSHING; FRT SPR,RR | 2 | 2203- | FRR | ID=25 | ||
| 530 | I8-97695 015-A | MEMBER; CROSS,T/M | 1 | 2203- | FRR | (C) | ||
| 545 | I8-97609 758-0 | SPACER; 5TH C/MBR | 2 | 2203- | FRR | LOWER | ||
| 031 | I8-98082 176-0 | BUSHING FRT SPR,RR | 2 | 2203- | FRR | ID=25 | ||
| 118 | I0-91110 514-0 | NUT; STOPPER | 16 | 2203- | FRR | M14 | ||
| 006 | I0-91510 512-0 | WASHER; LK,1ST C/MBR | 2 | 2203- | FRR | (C) ID=12.2 | ||
| 018 | I0-91180 212-0 | NUT; BRKT,ENG MTG | 8 | 2203- | FRR | M12 FLANGE | ||
| 024 | I8-98059 203-0 | BRACKET; FRT SPR,FRT | 1 | 2203- | FRR | (C) | ||
| 530 | I8-97695 015-A | MEMBER CROSS,T/M | 1 | 2203- | FRR | (C) | ||
| 131 | I0-50741 025-0 | BOLT END C/MBR | 4 | 2203- | FRR | M10X25 W/LK WASHER | ||
| 105 | I1-53354 074-A | BRACKET; RR SPR,RR | 2 | 2203- | FRR | |||
| 530 | I8-97695 014-A | MEMBER CROSS,T/M | 1 | 2203- | FRR | (B) | ||
| 344 | I8-97695 010-A | MEMBER CROSS,4TH | 1 | 2203- | FRR | |||
| 027 | I0-91510 614-0 | WASHER LK,BRKT,FRT SPR | 12 | 2203- | FRR | ID=14.2 | ||
| 002 | I8-97695 007-A | MEMBER CROSS,1ST | 1 | 2203- | FRR | |||
| 138 | I0-91510 614-0 | WASHER LK,BRKT | 10 | 2203- | FRR | ID=14.2 | ||
| 025 | I8-98010 627-1 | WASHER PL,BRKT | 16 | 2203- | FRR | (A) ID=15 | ||
| 039 | I1-53352 154-2 | BRACKET; FRT SPR,RR | 2 | 2203- | FRR | |||
| 202 | I8-97609 756-1 | SPACER; 3RD C/MBR | 2 | 2203- | FRR | |||
| 101 | I1-53353 090-4 | BRACKET RR SPR,FRT | 2 | 2203- | FRR | |||
| 106 | I0-20951 450-0 | BOLT; BRKT | 10 | 2203- | FRR | M14X50 | ||
| 103 | I1-53356 059-1 | STOPPER; SUB SPR | 4 | 2203- | FRR | (D) | ||
| 530 | I8-97695 014-A | MEMBER; CROSS,T/M | 1 | 2203- | FRR | (B) | ||
| 105 | I1-53354 074-A | BRACKET RR SPR,RR | 2 | 2203- | FRR | |||
| 023 | I0-20951 450-0 | BOLT BRKT,SPR | 8 | 2203- | FRR | (C) M14X50 | ||
| 026 | I0-91110 514-0 | NUT BRKT,SPR | 20 | 2203- | FRR | (A) M14 | ||
| 039 | I1-53352 154-2 | BRACKET FRT SPR,RR | 2 | 2203- | FRR | |||
| 067 | I0-91110 512-0 | NUT; C/MBR | 2 | 2203- | FRR | M12 | ||
| 008 | I8-97695 124-A | GUSSET; 1ST C/MBR | 1 | 2203- | FRR | |||
| 027 | I0-91510 614-0 | WASHER; LK,BRKT,FRT SPR | 12 | 2203- | FRR | ID=14.2 | ||
| 024 | I8-98059 203-0 | BRACKET FRT SPR,FRT | 1 | 2203- | FRR | (C) | ||
| 118 | I0-91110 514-0 | NUT STOPPER | 16 | 2203- | FRR | M14 | ||
| 034 | I8-97695 011-A | MEMBER CROSS,3RD | 1 | 2203- | FRR | (A) UPPER | ||
| 082 | I0-91110 514-0 | NUT BRKT | 10 | 2203- | FRR | M14 | ||
| 067 | I0-91110 512-0 | NUT C/MBR | 2 | 2203- | FRR | M12 | ||
| 132 | I0-91110 510-0 | NUT; END C/MBR | 4 | 2203- | FRR | M10 | ||
| 034 | I8-97695 012-A | MEMBER CROSS,3RD | 1 | 2203- | FRR | (B) LOWER | ||
| 002 | I8-97695 007-A | MEMBER; CROSS,1ST | 1 | 2203- | FRR | |||
| 018 | I0-91180 212-0 | NUT BRKT,ENG MTG | 8 | 2203- | FRR | M12 FLANGE | ||
| 004 | I0-91110 514-0 | NUT; 1ST C/MBR TO S/MBR | 2 | 2203- | FRR | M14 | ||
| 006 | I8-98010 627-1 | WASHER LK,1ST C/MBR | 2 | 2203- | FRR | (B) ID=15 | ||
| 101 | I1-53353 090-4 | BRACKET; RR SPR,FRT | 2 | 2203- | FRR | |||
| 026 | I0-91110 514-0 | NUT; BRKT,SPR | 20 | 2203- | FRR | (A) M14 | ||
| 077 | I8-97695 003-A | MEMBER CROSS,TRUNNION RR | 2 | 2203- | FRR | |||
| 138 | I0-91510 614-0 | WASHER; LK,BRKT | 10 | 2203- | FRR | ID=14.2 | ||
| 006 | I8-98010 627-1 | WASHER; LK,1ST C/MBR | 2 | 2203- | FRR | (B) ID=15 | ||
| 019 | I8-97695 008-A | MEMBER; CROSS,2ND | 1 | 2203- | FRR | |||
| 098 | I0-91510 614-0 | WASHER; LK,STOPPER | 16 | 2203- | FRR | ID=14.2 | ||
| 025 | I8-98010 627-1 | WASHER; PL,BRKT | 16 | 2203- | FRR | (A) ID=15 | ||
| 531 | I8-97695 160-A | SPACER C/MBR,T/M | 2 | 2203- | FRR | |||
| 531 | I8-97695 160-A | SPACER; C/MBR,T/M | 2 | 2203- | FRR | |||
| 132 | I0-91110 510-0 | NUT END C/MBR | 4 | 2203- | FRR | M10 | ||
| 024 | I8-98059 201-0 | BRACKET FRT SPR,FRT | 1 | 2203- | FRR | (C) | ||
| 011 | I8-97604 129-0 | BRACKET; ENG MTG | 2 | 2203- | FRR | (C) | ||
| 131 | I0-50741 025-0 | BOLT; END C/MBR | 4 | 2203- | FRR | M10X25 W/LK WASHER | ||
| 364 | I0-91180 212-0 | NUT; GUSSET | 4 | 2203- | FRR | M12 FLANGE | ||
| 016 | I0-20851 230-0 | BOLT 1ST C/MBR TO S/MBR | 2 | 2203- | FRR | (A) M12X30 | ||
| 024 | I8-98059 201-0 | BRACKET; FRT SPR,FRT | 1 | 2203- | FRR | (C) | ||
| 008 | I8-97695 125-A | GUSSET 1ST C/MBR | 1 | 2203- | FRR | |||
| 013 | I0-28661 235-0 | BOLT BRKT,ENG MTG | 8 | 2203- | FRR | M12X35 FLANGE | ||
| 046 | I0-20951 450-0 | BOLT; BRKT FIX | 12 | 2203- | FRR | M14X50 | ||
| 006 | I0-91510 814-0 | WASHER LK,1ST C/MBR | 2 | 2203- | FRR | (A) ID=14.2 | ||
| 130 | I8-97695 009-A | MEMBER CROSS,END | 1 | 2203- | FRR | |||
| 202 | I8-97609 756-1 | SPACER 3RD C/MBR | 2 | 2203- | FRR | |||
| 363 | I0-28661 225-0 | BOLT; GUSSET | 4 | 2203- | FRR | M12X25 FLANGE | ||
| 117 | I0-20951 450-0 | BOLT STOPPER | 16 | 2203- | FRR | M14X50 | ||
| 207 | I8-97609 758-0 | SPACER; 4TH C/MBR | 2 | 2203- | FRR | |||
| 130 | I8-97695 009-A | MEMBER; CROSS,END | 1 | 2203- | FRR | |||
| 098 | I0-91510 614-0 | WASHER LK,STOPPER | 16 | 2203- | FRR | ID=14.2 | ||
| 046 | I0-20951 450-0 | BOLT BRKT FIX | 12 | 2203- | FRR | M14X50 | ||
| 016 | I0-20851 440-0 | BOLT; 1ST C/MBR TO S/MBR | 2 | 2203- | FRR | (B) M14X40 | ||
| 530 | I8-97695 013-A | MEMBER CROSS,T/M | 1 | 2203- | FRR | (A) | ||
| 006 | I0-91510 512-0 | WASHER LK,1ST C/MBR | 2 | 2203- | FRR | (C) ID=12.2 | ||
| 011 | I8-97604 129-0 | BRACKET ENG MTG | 2 | 2203- | FRR | (C) | ||
| 034 | I8-97695 011-A | MEMBER; CROSS,3RD | 1 | 2203- | FRR | (A) UPPER | ||
| 103 | I1-53356 059-1 | STOPPER SUB SPR | 4 | 2203- | FRR | (D) | ||
| 345 | I8-97695 010-A | MEMBER CROSS,5TH | 1 | 2203- | FRR | |||
| 344 | I8-97695 010-A | MEMBER; CROSS,4TH | 1 | 2203- | FRR | |||
| 008 | I8-97695 125-A | GUSSET; 1ST C/MBR | 1 | 2203- | FRR | |||
| 364 | I0-91180 212-0 | NUT GUSSET | 4 | 2203- | FRR | M12 FLANGE | ||
| 006 | I0-91510 814-0 | WASHER; LK,1ST C/MBR | 2 | 2203- | FRR | (A) ID=14.2 |
