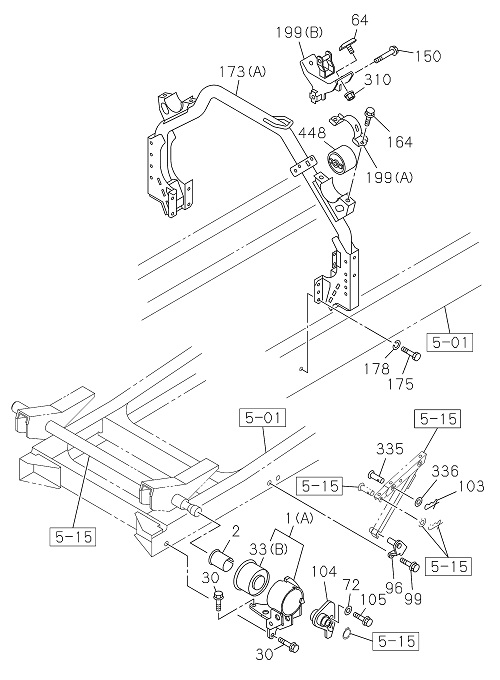

5-10 | CAB MOUNTING FRAME SIDE
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 103 | I8-98062 280-0 | PIN SPLIT,CAB STAY | 1 | 2203- | FRR | L=32.6 | ||
| 336 | I1-09985 183-0 | WASHER PL,STAY LOCK | 1 | 2203- | FRR | ID=10.5 T=2.0 | ||
| 064 | I8-97113 340-0 | RUBBER; CUSHION | 4 | 2203- | FRR | |||
| 072 | I0-91614 714-0 | WASHER PL,BRKT TO FRAME | 1 | 2203- | FRR | ID=15 OD=36 | ||
| 105 | I0-28661 435-0 | BOLT BRKT TO CAB FRAME | 1 | 2203- | FRR | M14X35 FLANGE | ||
| 335 | I1-09744 107-0 | PIN; ADJ,STAY LOCK | 1 | 2203- | FRR | OD=10 L=48 | ||
| 099 | I0-28661 030-0 | BOLT BRKT | 2 | 2203- | FRR | M10X30 FLANGE | ||
| 001 | I8-98010 750-2 | BRACKET CAB MTG | 1 | 2203- | FRR | (A) | ||
| 199 | I8-98044 556-1 | BRACKET; CAB RR MTG | 2 | 2203- | FRR | (A) | ||
| 164 | I0-28651 225-0 | BOLT CUSHION RUBBER,CAB MTG | 4 | 2203- | FRR | M12X25 FLANGE | ||
| 099 | I0-28661 030-0 | BOLT; BRKT | 2 | 2203- | FRR | M10X30 FLANGE | ||
| 064 | I8-97113 340-0 | RUBBER CUSHION | 4 | 2203- | FRR | |||
| 175 | I0-20951 235-0 | BOLT; MEMBER TO FRAME | 8 | 2203- | FRR | M12X35 | ||
| 096 | I1-62500 628-0 | BRACKET CAB STAY | 1 | 2203- | FRR | |||
| 335 | I1-09744 107-0 | PIN ADJ,STAY LOCK | 1 | 2203- | FRR | OD=10 L=48 | ||
| 178 | I0-91510 612-0 | WASHER LK,MEMBER | 8 | 2203- | FRR | ID=12.2 | ||
| 199 | I8-98044 556-1 | BRACKET CAB RR MTG | 2 | 2203- | FRR | (A) | ||
| 175 | I0-20951 235-0 | BOLT MEMBER TO FRAME | 8 | 2203- | FRR | M12X35 | ||
| 310 | I7-05108 010-A | NUT; CUSHION | 4 | 2203- | FRR | M8 FLANGE | ||
| 001 | I8-98056 501-2 | BRACKET CAB MTG | 1 | 2203- | FRR | (A) | ||
| 173 | I8-98486 407-0 | MEMBER; CAB MTG RR | 1 | 2203- | FRR | (A) | ||
| 030 | I0-28861 445-0 | BOLT CAB FRT FOOT | 10 | 2203- | FRR | M14X45 FLANGE | ||
| 336 | I1-09985 183-0 | WASHER; PL,STAY LOCK | 1 | 2203- | FRR | ID=10.5 T=2.0 | ||
| 096 | I1-62500 628-0 | BRACKET; CAB STAY | 1 | 2203- | FRR | |||
| 448 | I8-98013 934-A | BUSHING CAB MTG | 2 | 2203- | FRR | |||
| 103 | I8-98062 280-0 | PIN; SPLIT,CAB STAY | 1 | 2203- | FRR | L=32.6 | ||
| 104 | I8-98330 224-0 | BRACKET; CAB FRAME,CAB FRT MTG | 1 | 2203- | FRR | |||
| 072 | I0-91614 714-0 | WASHER; PL,BRKT TO FRAME | 1 | 2203- | FRR | ID=15 OD=36 | ||
| 199 | I8-98099 068-0 | BRACKET; CAB RR MTG | 2 | 2203- | FRR | (B) | ||
| 150 | I0-10956 400-0 | BOLT; CAB MTG RR | 2 | 2203- | FRR | M14X100 | ||
| 002 | I8-98010 767-A | BUSHING TORSION BAR | 2 | 2203- | FRR | |||
| 104 | I8-98330 224-0 | BRACKET CAB FRAME,CAB FRT MTG | 1 | 2203- | FRR | |||
| 002 | I8-98010 767-A | BUSHING; TORSION BAR | 2 | 2203- | FRR | |||
| 105 | I0-28661 435-0 | BOLT; BRKT TO CAB FRAME | 1 | 2203- | FRR | M14X35 FLANGE | ||
| 033 | I8-98013 933-1 | BUSHING; RUBBER,CAB MTG BRKT, FRT | 2 | 2203- | FRR | (B) | ||
| 448 | I8-98013 934-A | BUSHING; CAB MTG | 2 | 2203- | FRR | |||
| 178 | I0-91510 612-0 | WASHER; LK,MEMBER | 8 | 2203- | FRR | ID=12.2 | ||
| 199 | I8-98099 068-0 | BRACKET CAB RR MTG | 2 | 2203- | FRR | (B) | ||
| 001 | I8-98010 750-2 | BRACKET; CAB MTG | 1 | 2203- | FRR | (A) | ||
| 033 | I8-98013 933-1 | BUSHING RUBBER,CAB MTG BRKT, FRT | 2 | 2203- | FRR | (B) | ||
| 150 | I0-10956 400-0 | BOLT CAB MTG RR | 2 | 2203- | FRR | M14X100 | ||
| 030 | I0-28861 445-0 | BOLT; CAB FRT FOOT | 10 | 2203- | FRR | M14X45 FLANGE | ||
| 164 | I0-28651 225-0 | BOLT; CUSHION RUBBER,CAB MTG | 4 | 2203- | FRR | M12X25 FLANGE | ||
| 001 | I8-98056 501-2 | BRACKET; CAB MTG | 1 | 2203- | FRR | (A) | ||
| 310 | I7-05108 010-A | NUT CUSHION | 4 | 2203- | FRR | M8 FLANGE | ||
| 173 | I8-98486 407-0 | MEMBER CAB MTG RR | 1 | 2203- | FRR | (A) |
