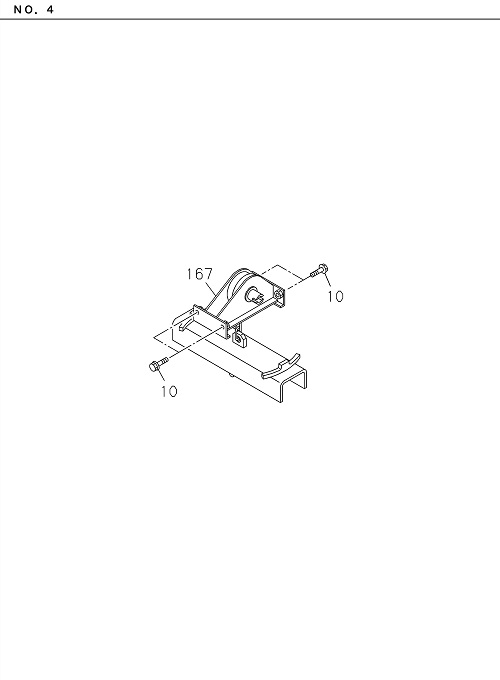

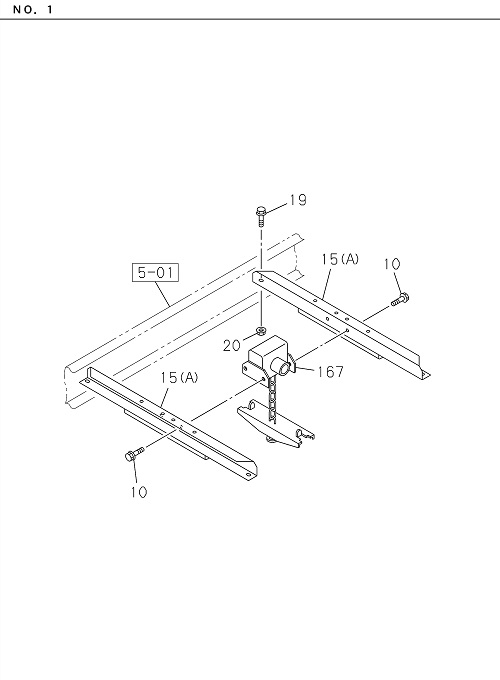

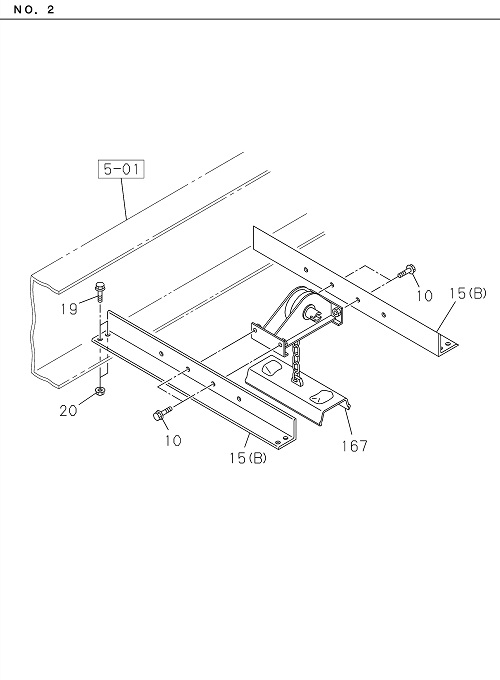

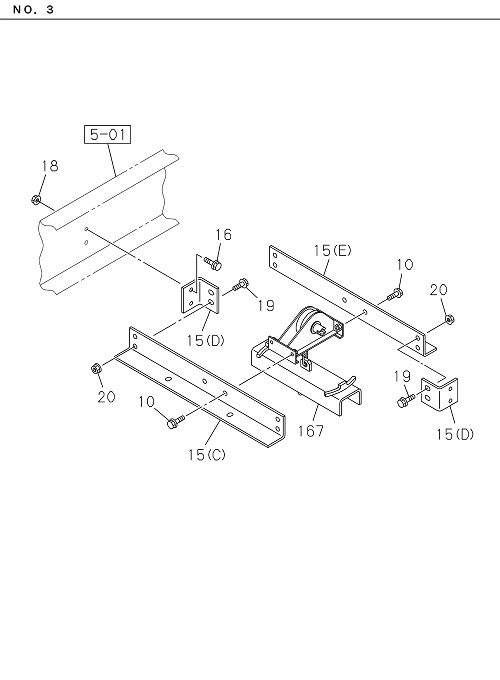

5-30 | SPARE TIRE CARRIER AND COVER
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 167 | I8-98036 383-0 | HANGER; TIRE | 1 | 2203- | FRR | |||
| 019 | I0-28051 025-0 | BOLT; C/MBR | 4 | 2203- | FRR | M10X25 FLANGE | ||
| 015 | I8-98044 388-0 | MEMBER CROSS,SPARE TIRE | 2 | 2203- | FRR | (A) | ||
| 010 | I7-04508 025-A | BOLT TIRE HANGER | 4 | 2203- | FRR | M8X20 FLANGE | ||
| 015 | I8-98044 388-0 | MEMBER; CROSS,SPARE TIRE | 2 | 2203- | FRR | (A) | ||
| 010 | I7-04508 025-A | BOLT; TIRE HANGER | 4 | 2203- | FRR | M8X20 FLANGE | ||
| 019 | I0-28051 025-0 | BOLT C/MBR | 4 | 2203- | FRR | M10X25 FLANGE | ||
| 020 | I7-05110 010-A | NUT C/MBR | 4 | 2203- | FRR | M10 FLANGE | ||
| 020 | I7-05110 010-A | NUT; C/MBR | 4 | 2203- | FRR | M10 FLANGE | ||
| 167 | I8-98036 383-0 | HANGER TIRE | 1 | 2203- | FRR |
