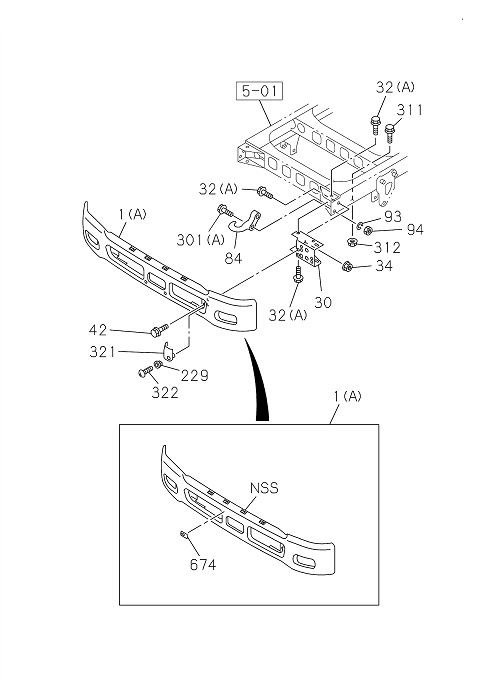

6-01 | FRONT BUMPER
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 030 | I8-97611 516-4 | BRACKET; FRT BUMPER | 1 | 2203- | FRR | |||
| 301 | I0-10861 460-0 | BOLT HOOK TO FRAME | 2 | 2203- | FRR | (A) M14X60 | ||
| 311 | I0-28851 445-0 | BOLT; BRKT | 2 | 2203- | FRR | M14X45 FLANGE | ||
| 321 | I8-97616 294-0 | COVER BUMPER FRT SIDE | 1 | 2203- | FRR | |||
| 229 | I5-09983 007-0 | GROMMET | 2 | 2203- | FRR | D=7X7 L=7.5 | ||
| 321 | I8-97616 294-0 | COVER; BUMPER FRT SIDE | 1 | 2203- | FRR | |||
| 312 | I0-91180 214-0 | NUT; BRKT | 2 | 2203- | FRR | M14 FLANGE | ||
| 001 | I8-97619 292-1 | BUMPER ASM; FRT | 1 | 2203- | FRR | (A) | ||
| 084 | I8-97948 026-0 | HOOK | 1 | 2203- | FRR | |||
| 094 | I0-91110 514-0 | NUT; HOOK | 2 | 2203- | FRR | M14 | ||
| 674 | I8-97611 491-1 | BRACKET; BUMPER,PLATE | 1 | 2203- | FRR | |||
| 321 | I8-97616 293-0 | COVER; BUMPER FRT SIDE | 1 | 2203- | FRR | |||
| 032 | I0-28651 035-0 | BOLT; BRKT,BUMPER | 6 | 2203- | FRR | (A) M10X35 FLANGE | ||
| 030 | I8-97611 515-4 | BRACKET FRT BUMPER | 1 | 2203- | FRR | |||
| 322 | I0-72180 516-0 | SCREW COVER FIX | 2 | 2203- | FRR | M5X16 TAPPING HEXALOBULAR | ||
| 042 | I8-94324 205-0 | BOLT; BUMPER | 4 | 2203- | FRR | M10X30 | ||
| 042 | I8-94324 205-0 | BOLT BUMPER | 4 | 2203- | FRR | M10X30 | ||
| 034 | I7-05110 010-A | NUT BRKT,BUMPER | 2 | 2203- | FRR | M10 FLANGE | ||
| 094 | I0-91110 514-0 | NUT HOOK | 2 | 2203- | FRR | M14 | ||
| 301 | I0-10861 460-0 | BOLT; HOOK TO FRAME | 2 | 2203- | FRR | (A) M14X60 | ||
| 093 | I0-91510 814-0 | WASHER LK,HOOK | 2 | 2203- | FRR | ID=14.2 | ||
| 084 | I8-97948 026-0 | HOOK | 1 | 2203- | FRR | |||
| 229 | I5-09983 007-0 | GROMMET | 2 | 2203- | FRR | D=7X7 L=7.5 | ||
| 322 | I0-72180 516-0 | SCREW; COVER FIX | 2 | 2203- | FRR | M5X16 TAPPING HEXALOBULAR | ||
| 093 | I0-91510 814-0 | WASHER; LK,HOOK | 2 | 2203- | FRR | ID=14.2 | ||
| 312 | I0-91180 214-0 | NUT BRKT | 2 | 2203- | FRR | M14 FLANGE | ||
| 674 | I8-97611 491-1 | BRACKET BUMPER,PLATE | 1 | 2203- | FRR | |||
| 030 | I8-97611 515-4 | BRACKET; FRT BUMPER | 1 | 2203- | FRR | |||
| 034 | I7-05110 010-A | NUT; BRKT,BUMPER | 2 | 2203- | FRR | M10 FLANGE | ||
| 001 | I8-97619 292-1 | BUMPER ASM FRT | 1 | 2203- | FRR | (A) | ||
| 311 | I0-28851 445-0 | BOLT BRKT | 2 | 2203- | FRR | M14X45 FLANGE | ||
| 032 | I0-28651 035-0 | BOLT BRKT,BUMPER | 6 | 2203- | FRR | (A) M10X35 FLANGE | ||
| 030 | I8-97611 516-4 | BRACKET FRT BUMPER | 1 | 2203- | FRR | |||
| 321 | I8-97616 293-0 | COVER BUMPER FRT SIDE | 1 | 2203- | FRR |
