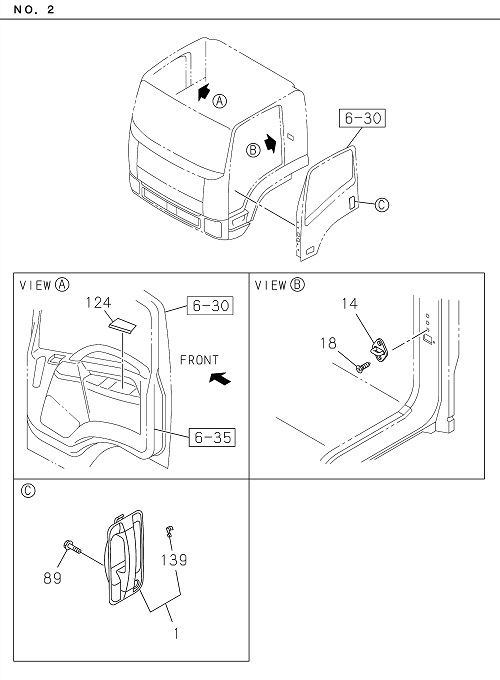

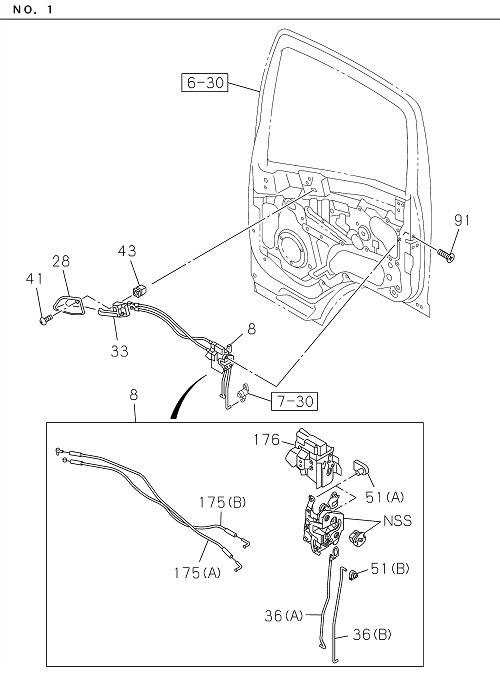

6-32 | FRONT DOOR LOCK AND HANDLE
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 041 | I0-72380 516-0 | SCREW INSIDE HANDLE | 2 | 2203- | FRR | M5X16 TAPPING HEXALOBULAR | ||
| 176 | I8-98058 239-0 | COVER DOOR LOCK | 1 | 2203- | FRR | |||
| 036 | I8-97520 806-0 | LINK; DOOR LOCK,OUTSIDE | 1 | 2203- | FRR | (B) | ||
| 028 | I8-97405 312-0 | BEZEL; INSIDE LEVER,FRT DOOR | 1 | 2203- | FRR | |||
| 001 | I8-98037 100-2 | HANDLE; OUTSIDE,FRT DOOR | 1 | 2203- | FRR | |||
| 091 | I8-98004 342-0 | BOLT; DOOR LOCK | 6 | 2203- | FRR | M6X14.5 | ||
| 018 | I8-98004 343-2 | SCREW; DOOR STRIKER | 4 | 2203- | FRR | M8X20 CK-HEAD | ||
| 008 | I8-97520 627-A | LOCK; DOOR,FRT DOOR | 1 | 2203- | FRR | |||
| 008 | I8-97520 627-A | LOCK DOOR,FRT DOOR | 1 | 2203- | FRR | |||
| 036 | I8-97520 807-0 | LINK DOOR LOCK,OUTSIDE | 1 | 2203- | FRR | (B) | ||
| 051 | I8-98058 226-0 | SNAP FRT DOOR LOCK CONT ROD | 2 | 2203- | FRR | (A) NATURAL | ||
| 124 | I8-97422 055-1 | COVER; DOOR PULL | 1 | 2203- | FRR | |||
| 028 | I8-97405 311-0 | BEZEL INSIDE LEVER,FRT DOOR | 1 | 2203- | FRR | |||
| 028 | I8-97405 312-0 | BEZEL INSIDE LEVER,FRT DOOR | 1 | 2203- | FRR | |||
| 008 | I8-97520 628-A | LOCK DOOR,FRT DOOR | 1 | 2203- | FRR | |||
| 175 | I8-97520 809-0 | CABLE ASM LOCK CONTROL | 1 | 2203- | FRR | (A) LOCK | ||
| 089 | I0-28050 610-0 | BOLT DOOR OUTSIDE HANDLE | 4 | 2203- | FRR | M6X10 FLANGE | ||
| 124 | I8-97422 055-1 | COVER DOOR PULL | 1 | 2203- | FRR | |||
| 051 | I8-98058 228-0 | SNAP FRT DOOR LOCK CONT ROD | 1 | 2203- | FRR | (B) BLACK | ||
| 091 | I8-98004 342-0 | BOLT DOOR LOCK | 6 | 2203- | FRR | M6X14.5 | ||
| 033 | I8-97405 310-1 | LEVER ASM; INSIDE,FRT DOOR | 1 | 2203- | FRR | |||
| 139 | I8-97333 303-0 | HOLDER ROD,DOOR HANDLE | 1 | 2203- | FRR | WHITE | ||
| 033 | I8-97405 309-1 | LEVER ASM INSIDE,FRT DOOR | 1 | 2203- | FRR | |||
| 001 | I8-98037 100-2 | HANDLE OUTSIDE,FRT DOOR | 1 | 2203- | FRR | |||
| 001 | I6-98037 100-0 | HANDLE OUTSIDE,FRT DOOR | 1 | 2203- | FRR | (IADG) | ||
| 051 | I8-98058 227-0 | SNAP FRT DOOR LOCK CONT ROD | 2 | 2203- | FRR | (A) BLUE | ||
| 018 | I8-98004 343-2 | SCREW DOOR STRIKER | 4 | 2203- | FRR | M8X20 CK-HEAD | ||
| 001 | I8-98037 101-2 | HANDLE; OUTSIDE,FRT DOOR | 1 | 2203- | FRR | |||
| 175 | I8-97520 810-0 | CABLE ASM LOCK CONTROL | 2 | 2203- | FRR | (B) OPEN | ||
| 001 | I8-98037 101-2 | HANDLE OUTSIDE,FRT DOOR | 1 | 2203- | FRR | |||
| 124 | I8-97422 056-1 | COVER; DOOR PULL | 1 | 2203- | FRR | |||
| 139 | I8-97333 303-0 | HOLDER; ROD,DOOR HANDLE | 1 | 2203- | FRR | WHITE | ||
| 175 | I8-97520 810-0 | CABLE ASM; LOCK CONTROL | 2 | 2203- | FRR | (B) OPEN | ||
| 175 | I8-97520 809-0 | CABLE ASM; LOCK CONTROL | 1 | 2203- | FRR | (A) LOCK | ||
| 036 | I8-97520 807-0 | LINK; DOOR LOCK,OUTSIDE | 1 | 2203- | FRR | (B) | ||
| 036 | I8-97520 805-0 | LINK DOOR LOCK,OUTSIDE | 1 | 2203- | FRR | (A) | ||
| 036 | I8-97520 806-0 | LINK DOOR LOCK,OUTSIDE | 1 | 2203- | FRR | (B) | ||
| 051 | I8-98058 227-0 | SNAP; FRT DOOR LOCK CONT ROD | 2 | 2203- | FRR | (A) BLUE | ||
| 001 | I6-98037 101-0 | HANDLE; OUTSIDE,FRT DOOR | 1 | 2203- | FRR | (IADG) | ||
| 175 | I8-97520 808-0 | CABLE ASM LOCK CONTROL | 1 | 2203- | FRR | (A) LOCK | ||
| 051 | I8-98058 229-0 | SNAP FRT DOOR LOCK CONT ROD | 1 | 2203- | FRR | (B) RED | ||
| 036 | I8-97520 804-0 | LINK; DOOR LOCK,OUTSIDE | 1 | 2203- | FRR | (A) | ||
| 028 | I8-97405 311-0 | BEZEL; INSIDE LEVER,FRT DOOR | 1 | 2203- | FRR | |||
| 051 | I8-98058 228-0 | SNAP; FRT DOOR LOCK CONT ROD | 1 | 2203- | FRR | (B) BLACK | ||
| 036 | I8-97520 804-0 | LINK DOOR LOCK,OUTSIDE | 1 | 2203- | FRR | (A) | ||
| 176 | I8-98058 238-0 | COVER DOOR LOCK | 1 | 2203- | FRR | |||
| 051 | I8-98058 229-0 | SNAP; FRT DOOR LOCK CONT ROD | 1 | 2203- | FRR | (B) RED | ||
| 051 | I8-98058 226-0 | SNAP; FRT DOOR LOCK CONT ROD | 2 | 2203- | FRR | (A) NATURAL | ||
| 033 | I8-97405 309-1 | LEVER ASM; INSIDE,FRT DOOR | 1 | 2203- | FRR | |||
| 014 | I8-98029 173-2 | STRIKER FRT DOOR | 2 | 2203- | FRR | |||
| 139 | I8-98095 813-0 | HOLDER ROD,DOOR HANDLE | 1 | 2203- | FRR | BLACK | ||
| 043 | I8-94279 078-A | GROMMET SCREW,INSIDE LEVER, DOOR | 2 | 2203- | FRR | D=8.6X7.7 L=7.5 | ||
| 089 | I0-28050 610-0 | BOLT; DOOR OUTSIDE HANDLE | 4 | 2203- | FRR | M6X10 FLANGE | ||
| 014 | I8-98029 173-2 | STRIKER; FRT DOOR | 2 | 2203- | FRR | |||
| 175 | I8-97520 808-0 | CABLE ASM; LOCK CONTROL | 1 | 2203- | FRR | (A) LOCK | ||
| 176 | I8-98058 239-0 | COVER; DOOR LOCK | 1 | 2203- | FRR | |||
| 001 | I6-98037 101-0 | HANDLE OUTSIDE,FRT DOOR | 1 | 2203- | FRR | (IADG) | ||
| 001 | I6-98037 100-0 | HANDLE; OUTSIDE,FRT DOOR | 1 | 2203- | FRR | (IADG) | ||
| 176 | I8-98058 238-0 | COVER; DOOR LOCK | 1 | 2203- | FRR | |||
| 139 | I8-98095 813-0 | HOLDER; ROD,DOOR HANDLE | 1 | 2203- | FRR | BLACK | ||
| 041 | I0-72380 516-0 | SCREW; INSIDE HANDLE | 2 | 2203- | FRR | M5X16 TAPPING HEXALOBULAR | ||
| 036 | I8-97520 805-0 | LINK; DOOR LOCK,OUTSIDE | 1 | 2203- | FRR | (A) | ||
| 008 | I8-97520 628-A | LOCK; DOOR,FRT DOOR | 1 | 2203- | FRR | |||
| 043 | I8-94279 078-A | GROMMET; SCREW,INSIDE LEVER, DOOR | 2 | 2203- | FRR | D=8.6X7.7 L=7.5 | ||
| 124 | I8-97422 056-1 | COVER DOOR PULL | 1 | 2203- | FRR | |||
| 033 | I8-97405 310-1 | LEVER ASM INSIDE,FRT DOOR | 1 | 2203- | FRR |
