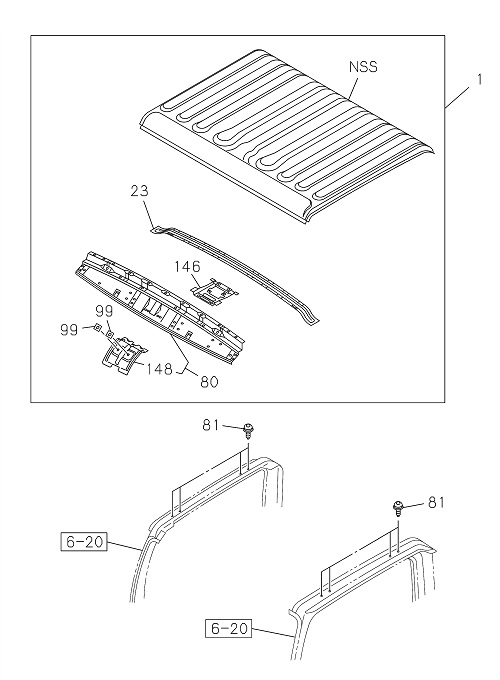

6-60 | ROOF PANEL
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 080 | I8-97584 191-3 | PANEL; HEADER,ROOF | 1 | 2203- | FRR | |||
| 001 | I8-98158 310-0 | PANEL; ROOF | 1 | 2203- | FRR | |||
| 001 | I8-98158 310-0 | PANEL ROOF | 1 | 2203- | FRR | |||
| 146 | I8-98075 827-0 | REINFORCEMENT ROOM LAMP | 1 | 2203- | FRR | |||
| 080 | I8-97584 191-3 | PANEL HEADER,ROOF | 1 | 2203- | FRR | |||
| 081 | I8-98141 874-0 | BOLT; ROOF | 8 | 2203- | FRR | M8X15.5 HEXALOBULAR | ||
| 148 | I8-97411 015-1 | REINFORCEMENT MIRROR | 1 | 2203- | FRR | |||
| 081 | I8-98141 874-0 | BOLT ROOF | 8 | 2203- | FRR | M8X15.5 HEXALOBULAR | ||
| 023 | I8-98019 310-0 | REINFORCEMENT ROOF PANEL,FRT | 1 | 2203- | FRR | |||
| 146 | I8-98075 827-0 | REINFORCEMENT; ROOM LAMP | 1 | 2203- | FRR | |||
| 099 | I1-61281 380-2 | SEAL BODY,METAL | 2 | 2203- | FRR | 30X30 ID=20 T=0.7 | ||
| 148 | I8-97411 015-1 | REINFORCEMENT; MIRROR | 1 | 2203- | FRR | |||
| 023 | I8-98019 310-0 | REINFORCEMENT; ROOF PANEL,FRT | 1 | 2203- | FRR | |||
| 099 | I1-61281 380-2 | SEAL; BODY,METAL | 2 | 2203- | FRR | 30X30 ID=20 T=0.7 |
