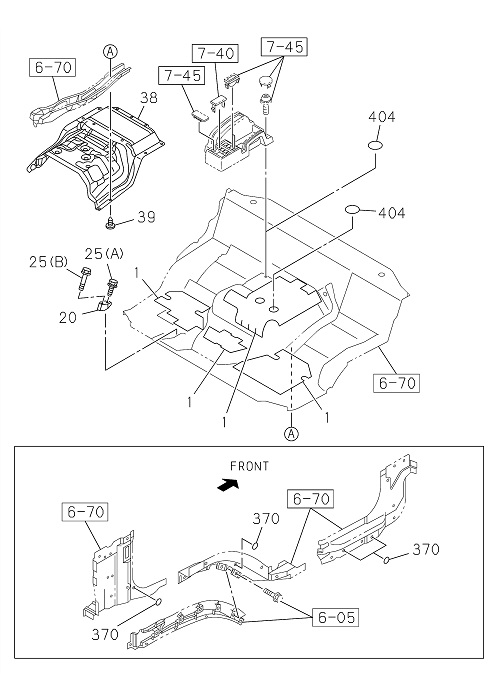

6-76 | FLOOR EQUIPMENT AND SEALING
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 001 | I8-94262 093-0 | SHEET MELTING,FLOOR | AR | 2203- | FRR | T=1.5 | ||
| 039 | I8-97808 623-0 | CLIP INSULATOR,COVER | 17 | 2203- | FRR | ID=6.2 L=11.4 | ||
| 001 | I8-94262 093-0 | SHEET; MELTING,FLOOR | AR | 2203- | FRR | T=1.5 | ||
| 039 | I8-97808 623-0 | CLIP; INSULATOR,COVER | 17 | 2203- | FRR | ID=6.2 L=11.4 | ||
| 404 | I1-76798 029-0 | SEAL FLOOR,HOLE | 2 | 2203- | FRR | OD=25 BLACK | ||
| 020 | I1-73907 176-1 | REST FOOT | 1 | 2203- | FRR | |||
| 404 | I1-76798 029-0 | SEAL; FLOOR,HOLE | 12 | 2203- | FRR | OD=25 BLACK | ||
| 404 | I1-76798 029-0 | SEAL FLOOR,HOLE | 12 | 2203- | FRR | OD=25 BLACK | ||
| 038 | I8-98248 305-0 | INSULATOR; ENG COVER | 1 | 2203- | FRR | |||
| 025 | I8-97510 913-0 | SCREW FOOT REST | 1 | 2203- | FRR | (B) M6X47 | ||
| 038 | I8-98248 305-0 | INSULATOR ENG COVER | 1 | 2203- | FRR | |||
| 404 | I1-76798 029-0 | SEAL; FLOOR,HOLE | 2 | 2203- | FRR | OD=25 BLACK | ||
| 025 | I8-97510 913-0 | SCREW; FOOT REST | 1 | 2203- | FRR | (B) M6X47 | ||
| 020 | I1-73907 176-1 | REST; FOOT | 1 | 2203- | FRR | |||
| 025 | I8-94279 201-0 | SCREW; FOOT REST | 1 | 2203- | FRR | (A) M6X19.5 W/LK&PL WASHER | ||
| 370 | I8-98230 420-0 | SEAL LOCATION HOLE | 8 | 2203- | FRR | OD=30 T=0.8 | ||
| 025 | I8-94279 201-0 | SCREW FOOT REST | 1 | 2203- | FRR | (A) M6X19.5 W/LK&PL WASHER | ||
| 370 | I8-98230 420-0 | SEAL; LOCATION HOLE | 8 | 2203- | FRR | OD=30 T=0.8 |
