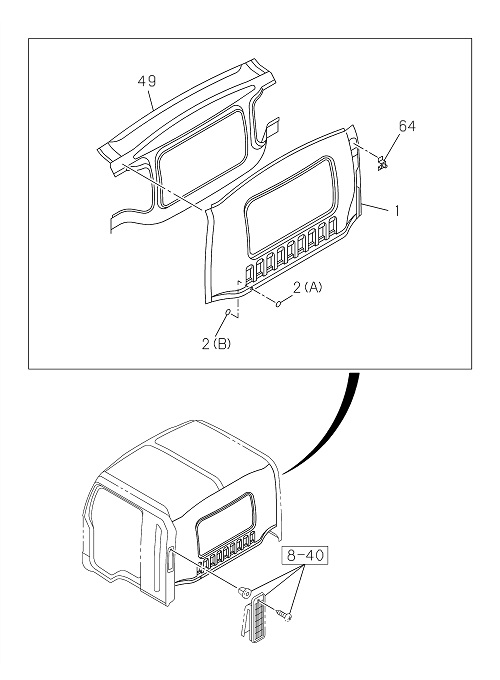

| 064 |
I8-97584 611-1 |
|
BRACKET AIR INTAKE DUCT |
1 |
2203- |
|
FRR |
|
| 002 |
I1-76798 029-0 |
|
GROMMET LOCATION HOLE,BACK PANEL |
2 |
2203- |
|
FRR |
(A) OD=25 |
| 049 |
I8-97584 609-3 |
|
PANEL BACK INNER |
1 |
2203- |
|
FRR |
|
| 002 |
I5-76777 035-0 |
|
GROMMET LOCATION HOLE,BACK PANEL |
2 |
2203- |
|
FRR |
(B) OD=36 T=0.05 |
| 001 |
I8-97584 312-3 |
|
PANEL BACK OUTER |
1 |
2203- |
|
FRR |
|
| 001 |
I8-97584 312-3 |
|
PANEL; BACK OUTER |
1 |
2203- |
|
FRR |
|
| 002 |
I5-76777 035-0 |
|
GROMMET; LOCATION HOLE,BACK PANEL |
2 |
2203- |
|
FRR |
(B) OD=36 T=0.05 |
| 049 |
I8-97584 609-3 |
|
PANEL; BACK INNER |
1 |
2203- |
|
FRR |
|
| 002 |
I1-76798 029-0 |
|
GROMMET; LOCATION HOLE,BACK PANEL |
2 |
2203- |
|
FRR |
(A) OD=25 |
| 064 |
I8-97584 611-1 |
|
BRACKET; AIR INTAKE DUCT |
1 |
2203- |
|
FRR |
|
