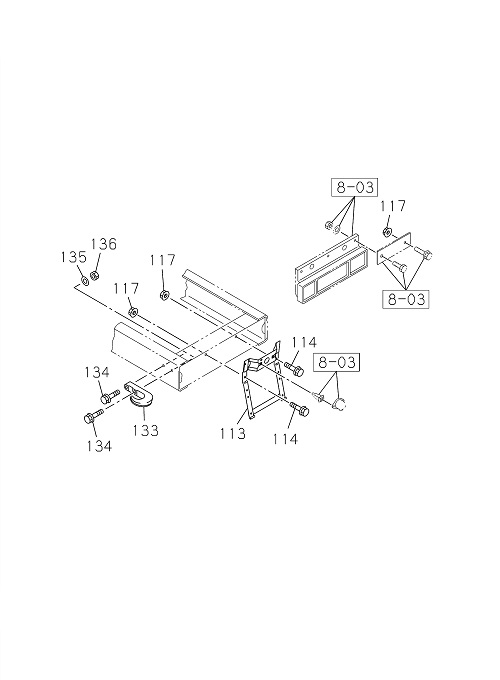

6-90 | REAR BUMPER
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 113 | I1-53485 074-0 | BRACKET; LICENSE PLATE | 1 | 2203- | FRR | |||
| 133 | I1-57181 003-5 | HOOK | 1 | 2203- | FRR | |||
| 114 | I0-28650 825-0 | BOLT; BRKT,LICENSE PLATE | 2 | 2203- | FRR | M8X25 FLANGE | ||
| 114 | I0-28650 825-0 | BOLT BRKT,LICENSE PLATE | 2 | 2203- | FRR | M8X25 FLANGE | ||
| 117 | I7-05108 010-A | NUT BRKT | 4 | 2203- | FRR | M8 FLANGE | ||
| 133 | I1-57181 003-5 | HOOK | 1 | 2203- | FRR | |||
| 117 | I7-05108 010-A | NUT; BRKT | 4 | 2203- | FRR | M8 FLANGE | ||
| 134 | I0-10861 450-0 | BOLT; HOOK | 2 | 2203- | FRR | M14X50 | ||
| 134 | I0-10861 450-0 | BOLT HOOK | 2 | 2203- | FRR | M14X50 | ||
| 135 | I0-91510 814-0 | WASHER; LK,HOOK | 2 | 2203- | FRR | ID=14.2 | ||
| 113 | I1-53485 074-0 | BRACKET LICENSE PLATE | 1 | 2203- | FRR | |||
| 136 | I0-91110 514-0 | NUT; HOOK | 2 | 2203- | FRR | M14 | ||
| 136 | I0-91110 514-0 | NUT HOOK | 2 | 2203- | FRR | M14 | ||
| 135 | I0-91510 814-0 | WASHER LK,HOOK | 2 | 2203- | FRR | ID=14.2 |
