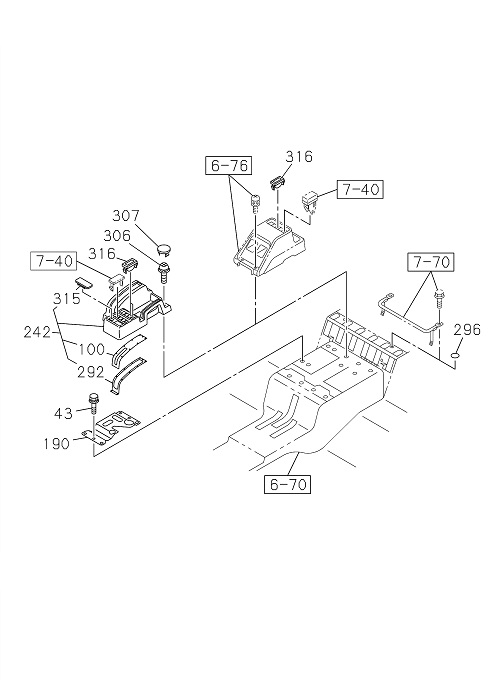

7-45 | CONSOLE BOX
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 242 | I8-97407 950-2 | TRAY ASM; CTR CONSOLE | 1 | 2203- | FRR | |||
| 292 | I1-72538 162-1 | RETAINER COVER | 1 | 2203- | FRR | |||
| 242 | I8-97407 950-2 | TRAY ASM CTR CONSOLE | 1 | 2203- | FRR | |||
| 307 | I8-97407 951-0 | COVER; HOLE,CTR CONSOLE | 4 | 2203- | FRR | |||
| 296 | I1-76798 029-0 | SEAL | 4 | 2203- | FRR | OD=25 | ||
| 315 | I8-97409 339-0 | COVER; HOLE,SW | 1 | 2203- | FRR | |||
| 316 | I8-94482 280-2 | BOX; COIN | 2 | 2203- | FRR | |||
| 307 | I8-97407 951-0 | COVER HOLE,CTR CONSOLE | 4 | 2203- | FRR | |||
| 296 | I1-76798 029-0 | SEAL | 4 | 2203- | FRR | OD=25 | ||
| 306 | I0-38050 616-0 | SCREW TRAY | 4 | 2203- | FRR | M6X16 HEXALOBULAR | ||
| 315 | I8-97409 339-0 | COVER HOLE,SW | 1 | 2203- | FRR | |||
| 292 | I1-72538 162-1 | RETAINER; COVER | 1 | 2203- | FRR | |||
| 100 | I1-72538 161-3 | RUBBER CONSOLE,FRT | 1 | 2203- | FRR | |||
| 100 | I1-72538 161-3 | RUBBER; CONSOLE,FRT | 1 | 2203- | FRR | |||
| 306 | I0-38050 616-0 | SCREW; TRAY | 4 | 2203- | FRR | M6X16 HEXALOBULAR | ||
| 316 | I8-94482 280-2 | BOX COIN | 2 | 2203- | FRR |
