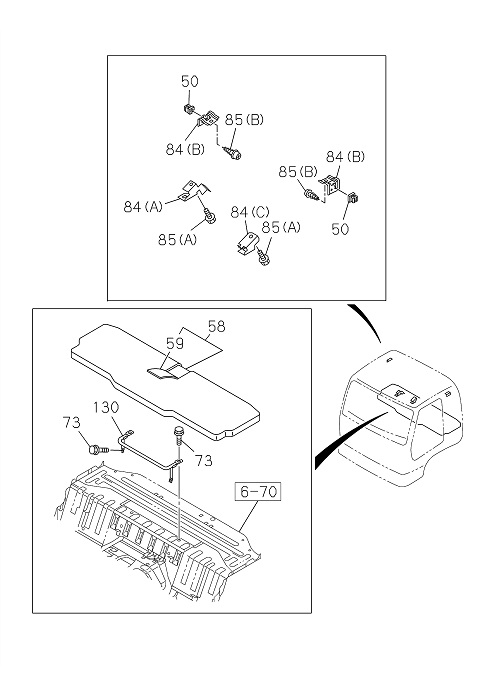

7-70 | SEPARATER AND BED
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 084 | I8-98042 152-0 | BRACKET; CURTAIN RAIL | 2 | 2203- | FRR | (B) | ||
| 085 | I8-97108 669-0 | SCREW; BRKT | 2 | 2203- | FRR | (A) BOLT M6X12 FLANGE | ||
| 084 | I8-98074 740-0 | BRACKET; CURTAIN RAIL | 1 | 2203- | FRR | (C) | ||
| 085 | I5-09981 093-0 | SCREW BRKT | 2 | 2203- | FRR | (B) M5X20 | ||
| 084 | I8-98042 152-0 | BRACKET CURTAIN RAIL | 2 | 2203- | FRR | (B) | ||
| 050 | I8-94279 078-A | GROMMET SCREW,CURTAIN RAIL | 2 | 2203- | FRR | D=8.6X7.7 L=7.5 | ||
| 084 | I8-98049 290-1 | BRACKET; CURTAIN RAIL | 1 | 2203- | FRR | (A) | ||
| 050 | I8-94279 078-A | GROMMET; SCREW,CURTAIN RAIL | 2 | 2203- | FRR | D=8.6X7.7 L=7.5 | ||
| 084 | I8-98049 290-1 | BRACKET CURTAIN RAIL | 1 | 2203- | FRR | (A) | ||
| 085 | I8-97108 669-0 | SCREW BRKT | 2 | 2203- | FRR | (A) BOLT M6X12 FLANGE | ||
| 085 | I5-09981 093-0 | SCREW; BRKT | 2 | 2203- | FRR | (B) M5X20 | ||
| 084 | I8-98074 740-0 | BRACKET CURTAIN RAIL | 1 | 2203- | FRR | (C) |
