8-15 | FIXING PARTS; WIRING HARNESS
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

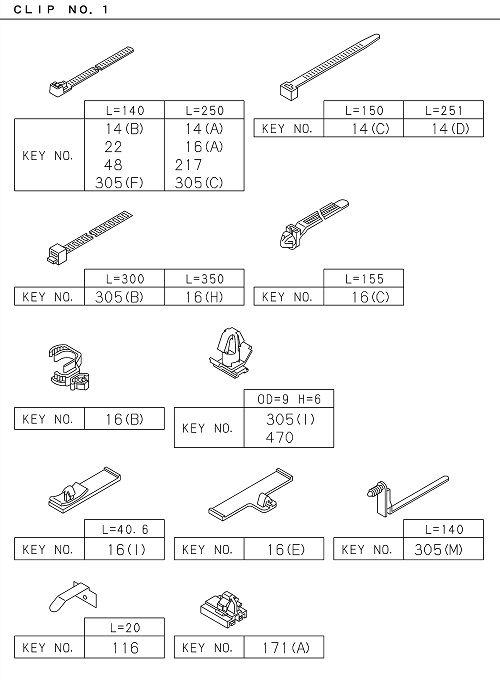

| 305 | I5-09707 030-1 | CLIP; ENG HARNESS | 1 | 2203- | FRR | (C) L=250 | ||
| 014 | I5-09707 031-1 | CLIP BAND,HARNESS | 2 | 2203- | FRR | (B) L=140 | ||
| 525 | I7-05108 010-A | NUT CLIP | 1 | 2203- | FRR | T=8.0 M8 FLANGE | ||
| 483 | I8-94224 891-1 | CLIP ENG HARNESS | 1 | 2203- | FRR | (F) L=36 | ||
| 016 | I8-98052 679-0 | CLIP HARNESS | 2 | 2203- | FRR | (E) | ||

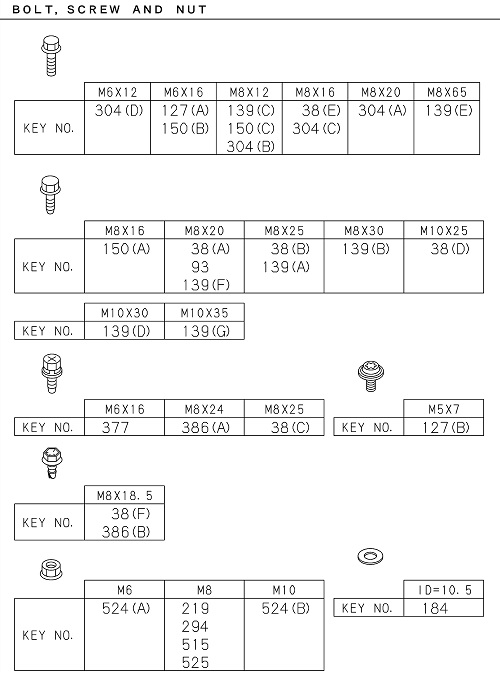

| 038 | I8-98141 255-0 | BOLT; CLIP,HARNESS | 2 | 2203- | FRR | (F) M8X18.5 W/PL WASHER | ||
| 538 | I1-76798 029-0 | SEAL HOLE | 1 | 2203- | FRR | OD=25 | ||
| 377 | I8-97086 823-0 | BOLT CAB EARTH | 2 | 2203- | FRR | M6X16 W/LK&PL WASHER | ||
| 139 | I0-28050 812-A | BOLT BRKT | 1 | 2203- | FRR | (C) M8X12 FLANGE | ||
| 022 | I5-09707 031-1 | CLIP; ENG HARNESS | 1 | 2203- | FRR | L=140 | ||
| 127 | I8-98063 767-0 | SCREW; FACIA HARNESS CLIP | 1 | 2203- | FRR | (B) M5X7 HEXALOBULAR SOCKET | ||
| 139 | I0-28650 830-0 | BOLT BRKT | 1 | 2203- | FRR | (B) M8X30 FLANGE | ||
| 470 | I1-09709 178-0 | CLIP HARNESS,LICENSE LAMP | 1 | 2203- | FRR | OD=9 H=6 | ||
| 150 | I0-28650 616-0 | BOLT CLIP | 1 | 2203- | FRR | (A) M6X16 FLANGE | ||
| 386 | I8-98141 255-0 | BOLT; GRAND HARNESS | 2 | 2203- | FRR | (B) M8X18.5 W/PL WASHER | ||
| 305 | I5-09707 030-1 | CLIP ENG HARNESS | 1 | 2203- | FRR | (C) L=250 | ||
| 524 | I7-05110 010-A | NUT; HARNESS | 1 | 2203- | FRR | (B) M10 FLANGE | ||
| 016 | I1-09707 183-0 | CLIP HARNESS | 1 | 2203- | FRR | (H) L=350 | ||
| 470 | I1-09709 178-0 | CLIP; HARNESS,LICENSE LAMP | 1 | 2203- | FRR | OD=9 H=6 | ||
| 139 | I0-28050 812-A | BOLT; BRKT | 1 | 2203- | FRR | (C) M8X12 FLANGE | ||
| 294 | I7-05108 010-A | NUT | 1 | 2203- | FRR | M8 FLANGE | ||
| 139 | I0-28650 825-0 | BOLT BRKT | 3 | 2203- | FRR | (A) M8X25 FLANGE | ||

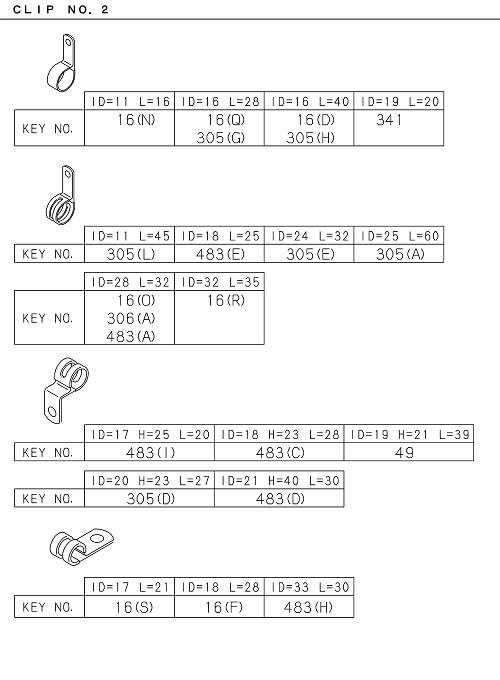

| 483 | I1-09700 860-0 | CLIP; ENG HARNESS | 1 | 2203- | FRR | (C) ID=18 H=23 L=28 | ||
| 116 | I1-09987 246-2 | CLIP; ROOF HARNESS | 4 | 2203- | FRR | L=20 | ||
| 171 | I1-09709 309-0 | CLIP; STARTER HARNESS | 1 | 2203- | FRR | (A) OD=8 H=3.8 | ||
| 483 | I1-09700 991-1 | CLIP ENG HARNESS | 1 | 2203- | FRR | (D) ID=21 H=40 L=30 | ||
| 049 | I1-09700 972-1 | CLIP GEN HARNESS | 1 | 2203- | FRR | ID=19 H=21 L=39 | ||
| 483 | I1-09701 107-1 | CLIP; ENG HARNESS | 1 | 2203- | FRR | (A) ID=28 L=32 | ||
| 483 | I8-94178 108-0 | CLIP; ENG HARNESS | 1 | 2203- | FRR | (G) ID=21 L=47.5 | ||
| 217 | I5-09707 030-1 | CLIP RR BODY HARNESS | 2 | 2203- | FRR | L=250 | ||
| 139 | I0-28651 030-0 | BOLT BRKT | 1 | 2203- | FRR | (D) M10X30 FLANGE | ||
| 305 | I5-09707 031-1 | CLIP ENG HARNESS | 1 | 2203- | FRR | (F) L=140 | ||
| 016 | I1-09707 183-0 | CLIP; HARNESS | 1 | 2203- | FRR | (H) L=350 | ||
| 171 | I8-97101 436-0 | CLIP; STARTER HARNESS | 1 | 2203- | FRR | (B) ID=16 L=60 | ||

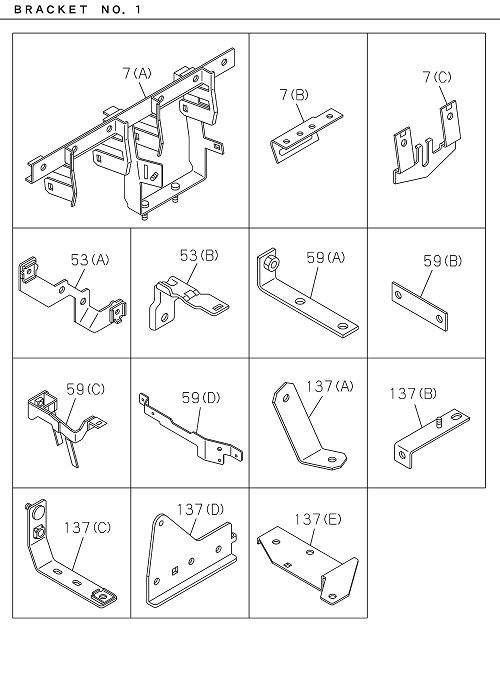

| 053 | I8-98052 458-0 | BRACKET HARNESS | 1 | 2203- | FRR | (B) | ||
| 538 | I1-76798 029-0 | SEAL; HOLE | 1 | 2203- | FRR | OD=25 | ||
| 150 | I0-28050 812-A | BOLT CLIP | 1 | 2203- | FRR | (C) M8X12 FLANGE | ||
| 377 | I8-97086 823-0 | BOLT; CAB EARTH | 2 | 2203- | FRR | M6X16 W/LK&PL WASHER | ||
| 127 | I8-98063 767-0 | SCREW FACIA HARNESS CLIP | 1 | 2203- | FRR | (B) M5X7 HEXALOBULAR SOCKET | ||

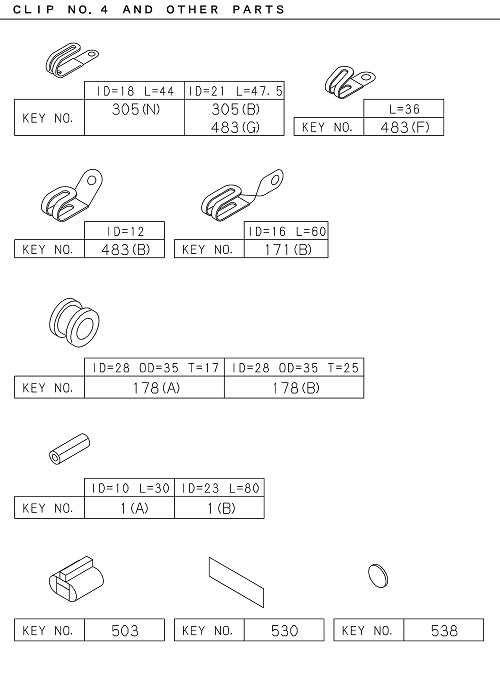

| 178 | I9-09956 256-2 | GROMMET HARNESS | 2 | 2203- | FRR | (A) ID=28 OD=35 T=17 | ||
| 016 | I8-97229 357-0 | CLIP HARNESS | 2 | 2203- | FRR | (I) L=40.6 | ||
| 016 | I1-09701 107-1 | CLIP HARNESS | 2 | 2203- | FRR | (O) ID=28 L=32 | ||
| 483 | I1-09700 991-1 | CLIP; ENG HARNESS | 1 | 2203- | FRR | (D) ID=21 H=40 L=30 | ||
| 016 | I5-09700 360-0 | CLIP HARNESS | 1 | 2203- | FRR | (P) ID=19 H=21 L=24 | ||
| 139 | I0-28650 830-0 | BOLT; BRKT | 1 | 2203- | FRR | (B) M8X30 FLANGE | ||
| 053 | I8-98052 458-0 | BRACKET; HARNESS | 1 | 2203- | FRR | (B) | ||
| 184 | I1-09503 265-0 | WASHER; PL,STARTER EARTH | 1 | 2203- | FRR | ID=10.5 OD=22 T=2.0 | ||
| 059 | I8-97614 738-0 | BRACKET; FRAME HARNESS | 1 | 2203- | FRR | (D) | ||
| 386 | I8-98141 255-0 | BOLT GRAND HARNESS | 2 | 2203- | FRR | (B) M8X18.5 W/PL WASHER | ||
| 139 | I1-09044 072-1 | BOLT; BRKT | 1 | 2203- | FRR | (E) M8X65 FLANGE | ||
| 483 | I8-94225 185-0 | CLIP ENG HARNESS | 1 | 2203- | FRR | (B) ID=12 B=13 L=18 ID=6.5 | ||
| 524 | I0-91180 106-0 | NUT; HARNESS | 2 | 2203- | FRR | (A) M6 FLANGE | ||
| 016 | I8-97173 307-0 | CLIP HARNESS | 18 | 2203- | FRR | (C) L=155 | ||
| 093 | I7-04508 025-A | BOLT; ECM HARNESS CLIP | 2 | 2203- | FRR | M8X20 FLANGE | ||
| 016 | I8-98052 679-0 | CLIP; HARNESS | 2 | 2203- | FRR | (E) | ||
| 014 | I8-97355 273-0 | CLIP; BAND,HARNESS | 2 | 2203- | FRR | (C) L=150 | ||
| 016 | I8-94472 578-0 | CLIP HARNESS | 1 | 2203- | FRR | (B) ID=10 & 16 | ||
| 294 | I7-05108 010-A | NUT | 1 | 2203- | FRR | M8 FLANGE | ||
| 022 | I5-09707 031-1 | CLIP ENG HARNESS | 1 | 2203- | FRR | L=140 | ||
| 049 | I1-09700 972-1 | CLIP; GEN HARNESS | 1 | 2203- | FRR | ID=19 H=21 L=39 | ||
| 150 | I0-28050 612-0 | BOLT CLIP | 2 | 2203- | FRR | (B) M6X12 FLANGE | ||
| 150 | I0-28050 612-0 | BOLT; CLIP | 2 | 2203- | FRR | (B) M6X12 FLANGE | ||
| 116 | I1-09987 246-2 | CLIP ROOF HARNESS | 4 | 2203- | FRR | L=20 | ||
| 483 | I8-94224 891-1 | CLIP; ENG HARNESS | 1 | 2203- | FRR | (F) L=36 | ||
| 515 | I7-05108 010-A | NUT; BRKT | 1 | 2203- | FRR | M8 FLANGE | ||
| 217 | I5-09707 030-1 | CLIP; RR BODY HARNESS | 2 | 2203- | FRR | L=250 | ||
| 515 | I7-05108 010-A | NUT BRKT | 1 | 2203- | FRR | M8 FLANGE | ||
| 059 | I8-97614 738-0 | BRACKET FRAME HARNESS | 1 | 2203- | FRR | (D) | ||
| 530 | I1-72498 019-1 | SEAL HARNESS | 6 | 2203- | FRR | 180X40 | ||
| 059 | I8-98044 743-0 | BRACKET FRAME HARNESS | 1 | 2203- | FRR | (B) L=85 | ||
| 305 | I1-09707 001-1 | CLIP ENG HARNESS | 1 | 2203- | FRR | (B) L=300 | ||
| 178 | I9-09956 256-2 | GROMMET; HARNESS | 2 | 2203- | FRR | (A) ID=28 OD=35 T=17 | ||
| 524 | I7-05110 010-A | NUT HARNESS | 1 | 2203- | FRR | (B) M10 FLANGE | ||
| 038 | I8-98141 255-0 | BOLT CLIP,HARNESS | 2 | 2203- | FRR | (F) M8X18.5 W/PL WASHER | ||

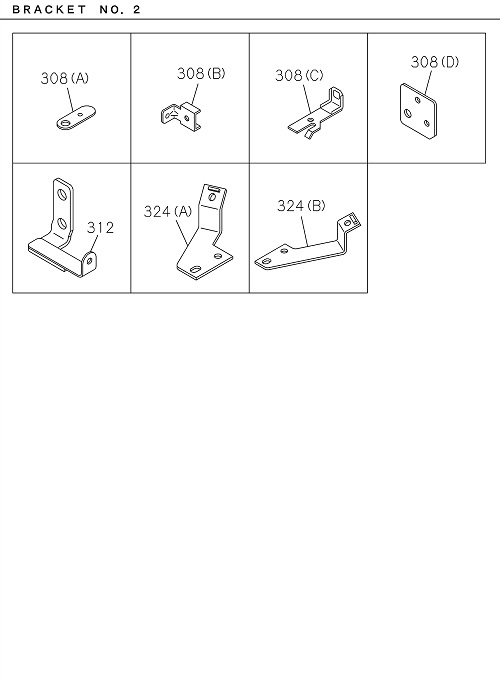

| 312 | I8-98094 804-0 | BRACKET; CLIP HARNESS | 1 | 2203- | FRR | |||
| 059 | I8-98099 963-0 | BRACKET; FRAME HARNESS | 1 | 2203- | FRR | (C) | ||
| 139 | I0-28651 030-0 | BOLT; BRKT | 1 | 2203- | FRR | (D) M10X30 FLANGE | ||
| 483 | I8-94178 108-0 | CLIP ENG HARNESS | 1 | 2203- | FRR | (G) ID=21 L=47.5 | ||
| 016 | I8-97229 357-0 | CLIP; HARNESS | 2 | 2203- | FRR | (I) L=40.6 | ||
| 171 | I1-09709 309-0 | CLIP STARTER HARNESS | 1 | 2203- | FRR | (A) OD=8 H=3.8 | ||
| 483 | I1-09987 281-0 | CLIP ENG HARNESS | 1 | 2203- | FRR | (I) ID=17 H=25 L=20 | ||
| 483 | I1-09701 107-1 | CLIP ENG HARNESS | 1 | 2203- | FRR | (A) ID=28 L=32 | ||
| 139 | I0-28650 825-0 | BOLT; BRKT | 3 | 2203- | FRR | (A) M8X25 FLANGE | ||
| 483 | I8-94121 004-1 | CLIP; ENG HARNESS | 1 | 2203- | FRR | (E) ID=18 L=25 | ||
| 014 | I8-97355 273-0 | CLIP BAND,HARNESS | 2 | 2203- | FRR | (C) L=150 | ||
| 524 | I0-91180 106-0 | NUT HARNESS | 2 | 2203- | FRR | (A) M6 FLANGE | ||
| 184 | I1-09503 265-0 | WASHER PL,STARTER EARTH | 1 | 2203- | FRR | ID=10.5 OD=22 T=2.0 | ||
| 171 | I8-97101 436-0 | CLIP STARTER HARNESS | 1 | 2203- | FRR | (B) ID=16 L=60 | ||
| 014 | I8-97619 917-0 | CLIP BAND,HARNESS | 1 | 2203- | FRR | (D) L=251 | ||
| 016 | I5-09700 360-0 | CLIP; HARNESS | 1 | 2203- | FRR | (P) ID=19 H=21 L=24 | ||
| 059 | I8-98099 963-0 | BRACKET FRAME HARNESS | 1 | 2203- | FRR | (C) | ||
| 059 | I8-98044 743-0 | BRACKET; FRAME HARNESS | 1 | 2203- | FRR | (B) L=85 | ||
| 137 | I8-97624 016-0 | BRACKET HARNESS CLAMP | 1 | 2203- | FRR | (D) | ||
| 150 | I0-28050 812-A | BOLT; CLIP | 1 | 2203- | FRR | (C) M8X12 FLANGE | ||
| 483 | I8-94225 185-0 | CLIP; ENG HARNESS | 1 | 2203- | FRR | (B) ID=12 B=13 L=18 ID=6.5 | ||
| 150 | I0-28650 616-0 | BOLT; CLIP | 1 | 2203- | FRR | (A) M6X16 FLANGE | ||
| 305 | I1-09707 001-1 | CLIP; ENG HARNESS | 1 | 2203- | FRR | (B) L=300 | ||
| 483 | I1-09987 281-0 | CLIP; ENG HARNESS | 1 | 2203- | FRR | (I) ID=17 H=25 L=20 | ||
| 139 | I1-09044 072-1 | BOLT BRKT | 1 | 2203- | FRR | (E) M8X65 FLANGE | ||
| 312 | I8-98094 804-0 | BRACKET CLIP HARNESS | 1 | 2203- | FRR | |||
| 016 | I8-97173 307-0 | CLIP; HARNESS | 18 | 2203- | FRR | (C) L=155 | ||
| 483 | I1-09700 860-0 | CLIP ENG HARNESS | 1 | 2203- | FRR | (C) ID=18 H=23 L=28 | ||
| 016 | I1-09701 107-1 | CLIP; HARNESS | 2 | 2203- | FRR | (O) ID=28 L=32 | ||
| 530 | I1-72498 019-1 | SEAL; HARNESS | 6 | 2203- | FRR | 180X40 | ||
| 014 | I8-97619 917-0 | CLIP; BAND,HARNESS | 1 | 2203- | FRR | (D) L=251 | ||
| 483 | I8-94121 004-1 | CLIP ENG HARNESS | 1 | 2203- | FRR | (E) ID=18 L=25 | ||
| 137 | I8-97624 016-0 | BRACKET; HARNESS CLAMP | 1 | 2203- | FRR | (D) | ||
| 014 | I5-09707 031-1 | CLIP; BAND,HARNESS | 2 | 2203- | FRR | (B) L=140 | ||
| 016 | I8-94472 578-0 | CLIP; HARNESS | 1 | 2203- | FRR | (B) ID=10 & 16 | ||
| 305 | I5-09707 031-1 | CLIP; ENG HARNESS | 1 | 2203- | FRR | (F) L=140 | ||
| 525 | I7-05108 010-A | NUT; CLIP | 1 | 2203- | FRR | T=8.0 M8 FLANGE | ||
| 093 | I7-04508 025-A | BOLT ECM HARNESS CLIP | 2 | 2203- | FRR | M8X20 FLANGE |
