8-26 | ELECTRICAL CONTROL AND OTHER PARTS
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 448 | I0-28050 616-0 | BOLT; SENSOR | 1 | 2203- | FRR | M6X16 FLANGE | ||
| 553 | I8-97369 404-0 | GASKET | 1 | 2203- | FRR | ID=14.2 OD=18.8 | ||
| 766 | I5-09707 031-1 | BAND CLIP | 1 | 2203- | FRR | L=140 | ||

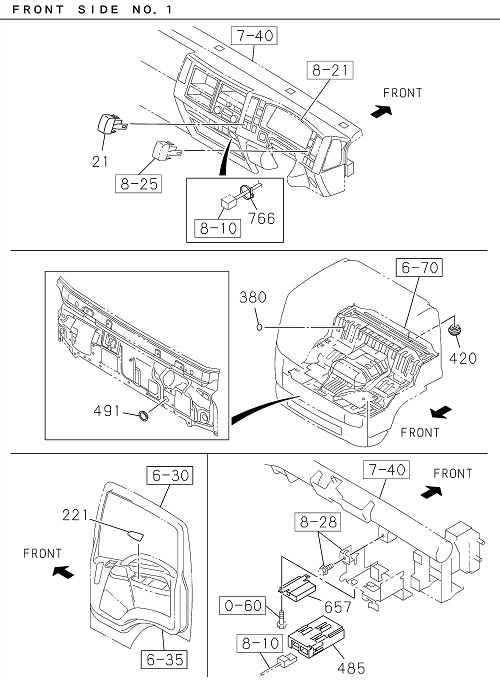

| 657 | I8-97948 260-2 | CONTROL UNIT; MIMAMORI | 1 | 2203- | FRR | DRM | ||

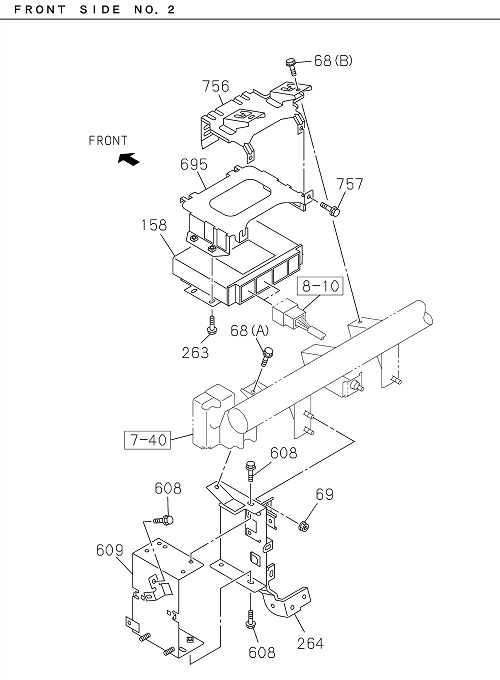

| 264 | I8-98249 082-1 | BRACKET CONT UNIT | 1 | 2203- | FRR | |||
| 069 | I0-91180 106-0 | NUT; BRKT | 1 | 2203- | FRR | M6 FLANGE | ||
| 068 | I0-28650 616-0 | BOLT; BRKT | 1 | 2203- | FRR | (A) M6X16 FLANGE | ||
| 069 | I0-91180 106-0 | NUT BRKT | 1 | 2203- | FRR | M6 FLANGE | ||
| 275 | I7-05108 010-A | NUT BRKT | 2 | 2203- | FRR | M8 FLANGE | ||
| 221 | I8-98029 916-2 | COVER HOLE,DOOR LOCK SW | 1 | 2203- | FRR | |||
| 275 | I7-05108 010-A | NUT; BRKT | 2 | 2203- | FRR | M8 FLANGE | ||

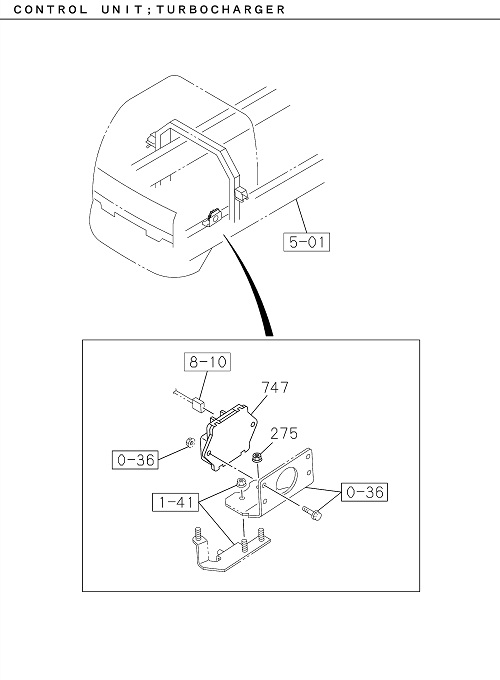

| 747 | I8-98162 807-0 | CONTROL UNIT TURBOCHARGER | 1 | 2203- | FRR | |||
| 553 | I8-97369 404-0 | GASKET | 1 | 2203- | FRR | ID=14.2 OD=18.8 | ||
| 380 | I1-76798 029-0 | SEAL | 1 | 2203- | FRR | OD=25 BLACK | ||
| 469 | I8-98119 901-0 | PROTECTOR SPEED SENSOR | 1 | 2203- | FRR | |||

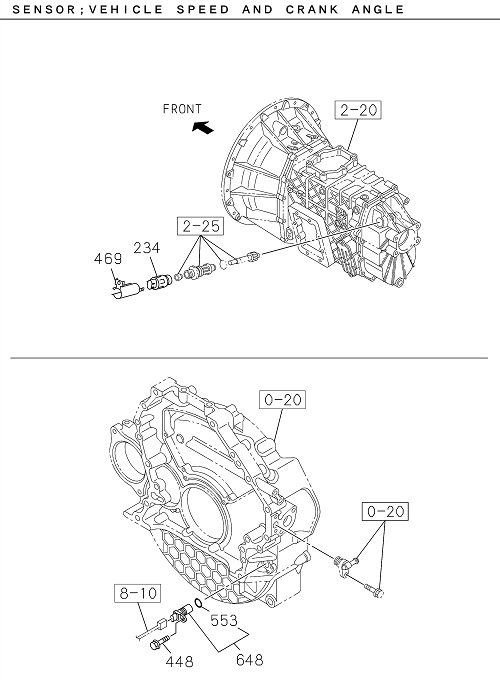

| 234 | I8-97328 058-1 | SENSOR; VEHICLE SPD | 1 | 2203- | FRR | 25 PULSE ALUMINUM | ||
| 448 | I0-28050 616-0 | BOLT SENSOR | 1 | 2203- | FRR | M6X16 FLANGE | ||
| 469 | I8-98119 901-0 | PROTECTOR; SPEED SENSOR | 1 | 2203- | FRR | |||
| 221 | I8-98029 916-2 | COVER; HOLE,DOOR LOCK SW | 1 | 2203- | FRR | |||
| 021 | I8-98025 954-1 | COVER HOLE | 1 | 2203- | FRR | |||
| 420 | I8-94122 971-0 | PLUG; SWITCH | 1 | 2203- | FRR | OD=35 | ||
| 766 | I5-09707 031-1 | BAND; CLIP | 1 | 2203- | FRR | L=140 | ||
| 380 | I1-76798 029-0 | SEAL | 1 | 2203- | FRR | OD=25 BLACK | ||
| 221 | I8-98029 915-2 | COVER; HOLE,DOOR LOCK SW | 1 | 2203- | FRR | |||
| 747 | I8-98162 807-0 | CONTROL UNIT; TURBOCHARGER | 1 | 2203- | FRR | |||
| 068 | I0-28650 616-0 | BOLT BRKT | 1 | 2203- | FRR | (A) M6X16 FLANGE | ||
| 491 | I8-98054 651-A | PLUG HOLE,CONT UNIT | 1 | 2203- | FRR | OD=60 | ||
| 264 | I8-98249 082-1 | BRACKET; CONT UNIT | 1 | 2203- | FRR | |||
| 491 | I8-98054 651-A | PLUG; HOLE,CONT UNIT | 1 | 2203- | FRR | OD=60 | ||
| 420 | I8-94122 971-0 | PLUG SWITCH | 1 | 2203- | FRR | OD=35 | ||
| 234 | I8-97328 058-1 | SENSOR VEHICLE SPD | 1 | 2203- | FRR | 25 PULSE ALUMINUM | ||
| 021 | I8-98025 954-1 | COVER; HOLE | 1 | 2203- | FRR | |||
| 657 | I8-97948 260-2 | CONTROL UNIT MIMAMORI | 1 | 2203- | FRR | DRM | ||
| 648 | I8-97606 943-0 | SENSOR; CRANK ANGLE | 1 | 2203- | FRR | |||
| 648 | I8-97606 943-0 | SENSOR CRANK ANGLE | 1 | 2203- | FRR | |||
| 221 | I8-98029 915-2 | COVER HOLE,DOOR LOCK SW | 1 | 2203- | FRR |
