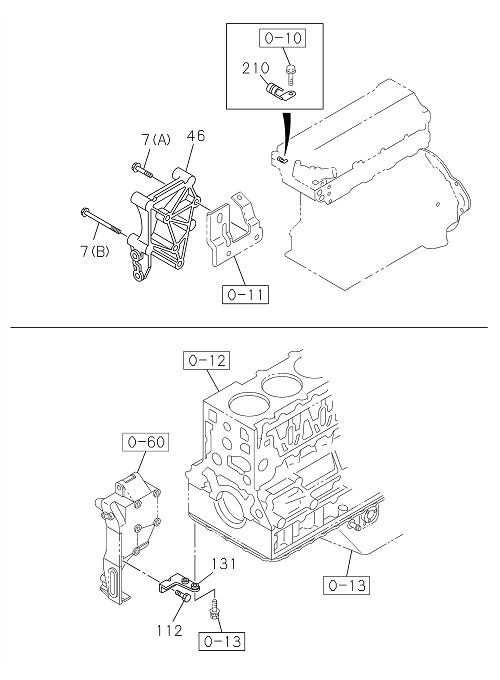

8-50 | AIR CONDITIONING SYSTEM; FRONT
GIGA E4
GIGA FRR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 046 | I8-98101 364-0 | BRACKET; CMPR | 1 | 2203- | FRR | |||
| 046 | I8-98101 364-0 | BRACKET CMPR | 1 | 2203- | FRR | |||
| 071 | I8-98017 234-1 | COVER EVAP,A/C | 1 | 2203- | FRR | |||
| 007 | I0-28151 080-0 | BOLT; BRKT | 2 | 2203- | FRR | (B) M10X80 FLANGE | ||
| 210 | I8-97367 984-1 | CLIP HARNESS | 1 | 2203- | FRR | ID=12 | ||
| 007 | I0-28051 045-0 | BOLT BRKT | 2 | 2203- | FRR | (A) M10X45 FLANGE | ||
| 378 | I8-98041 428-0 | HOSE DRAIN,EVAPORATOR | 1 | 2203- | FRR | |||
| 007 | I0-28151 080-0 | BOLT BRKT | 2 | 2203- | FRR | (B) M10X80 FLANGE | ||
| 007 | I0-28051 045-0 | BOLT; BRKT | 2 | 2203- | FRR | (A) M10X45 FLANGE | ||
| 071 | I8-98017 234-1 | COVER; EVAP,A/C | 1 | 2203- | FRR | |||
| 378 | I8-98041 428-0 | HOSE; DRAIN,EVAPORATOR | 1 | 2203- | FRR | |||
| 210 | I8-97367 984-1 | CLIP; HARNESS | 1 | 2203- | FRR | ID=12 |
