0-20 | TIMING GEAR CASE AND FLYWHEEL HOUSING
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 100 | I8-97028 748-1 | GASKET; FRT COVER | 1 | 2203- | FTR | (A) ID=35.1 | ||
| 103 | I6-97329 780-0 | SEAL; OIL,CR/SHF,FRT | 1 | 2203- | FTR | (IADG) ID=109 OD=137 | ||
| 211 | I8-97135 419-0 | BOLT; HSG | 1 | 2203- | FTR | (C) M12X30 FLANGE | ||
| 464 | I8-94373 246-3 | PIPE; PCV,FLYWHEEL HSG | 1 | 2203- | FTR | |||
| 211 | I0-28151 050-0 | BOLT; HSG | 1 | 2203- | FTR | (D) M10X50 FLANGE | ||
| 062 | I1-09044 072-1 | BOLT; COVER | 2 | 2203- | FTR | (D) M8X65 FLANGE | ||

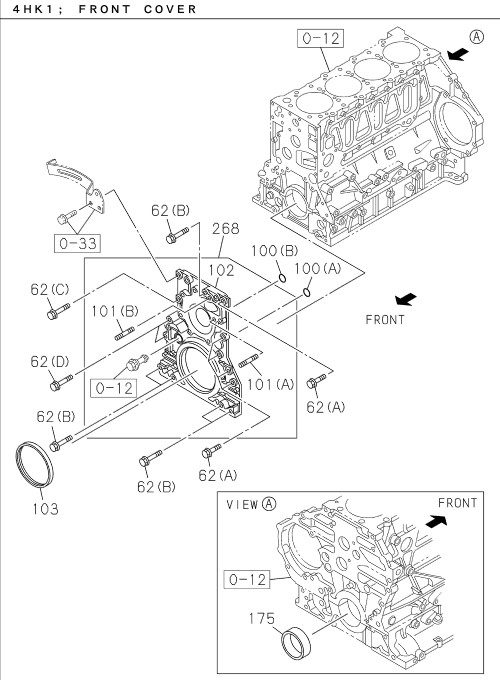

| 268 | I8-97148 937-3 | COVER; FRT | 1 | 2203- | FTR | |||
| 062 | I0-28650 835-0 | BOLT; COVER | 6 | 2203- | FTR | (B) M8X35 FLANGE | ||
| 102 | I8-98039 932-2 | RETAINER; FRT | 1 | 2203- | FTR | |||
| 100 | I9-09561 318-0 | GASKET; FRT COVER | 1 | 2203- | FTR | (B) ID=17.8 | ||
| 211 | I0-28651 040-0 | BOLT; HSG | 1 | 2203- | FTR | (A) M10X40 FLANGE | ||

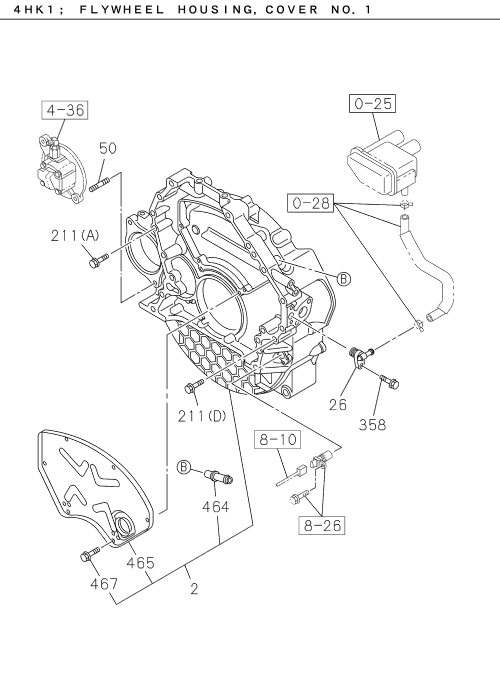

| 465 | I8-97388 568-1 | PLATE; FLYWHEEL HSG | 1 | 2203- | FTR | |||
| 358 | I0-28050 616-0 | BOLT; ADAPTER | 1 | 2203- | FTR | M6X16 FLANGE | ||
| 062 | I0-28650 830-0 | BOLT; COVER | 1 | 2203- | FTR | (C) M8X30 FLANGE | ||

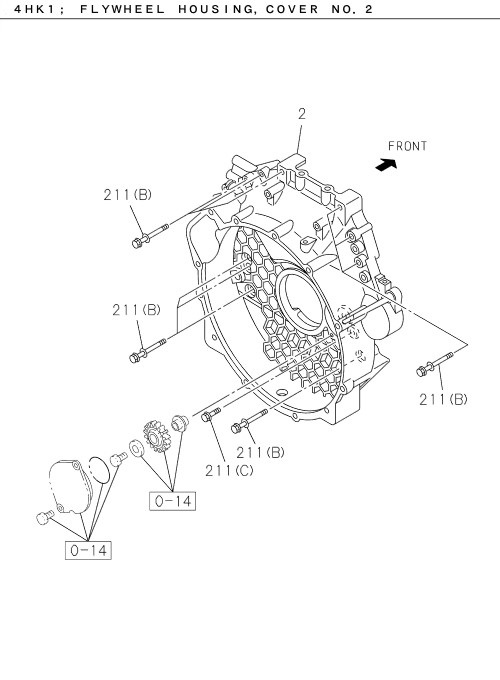

| 002 | I8-98328 140-0 | HOUSING; FLYWHEEL | 1 | 2203- | FTR | |||
| 050 | I0-49241 025-0 | STUD | 1 | 2203- | FTR | M10X25 L=48.5 | ||
| 175 | I8-98334 339-0 | SEAL; OIL,CR/SHF,RR | 1 | 2203- | FTR | ID=104 OD=139 | ||
| 467 | I8-98030 649-0 | BOLT; PLATE | 6 | 2203- | FTR | M6X10 | ||
| 211 | I8-98179 087-1 | BOLT; HSG | 11 | 2203- | FTR | (B) M12X70 FLANGE, W/PL WASHER | ||
| 101 | I8-97028 541-0 | STUD; WATER PUMP | 1 | 2203- | FTR | (A) M8X18 L=29 | ||
| 103 | I8-97329 780-0 | SEAL; OIL,CR/SHF,FRT | 1 | 2203- | FTR | ID=109 OD=137 | ||
| 101 | I0-41010 818-0 | STUD; WATER PUMP | 1 | 2203- | FTR | (B) M8X18 L=30 | ||
| 026 | I8-97354 819-0 | ADAPTER | 1 | 2203- | FTR | |||
| 062 | I0-28650 825-0 | BOLT; COVER | 6 | 2203- | FTR | (A) M8X25 FLANGE |
