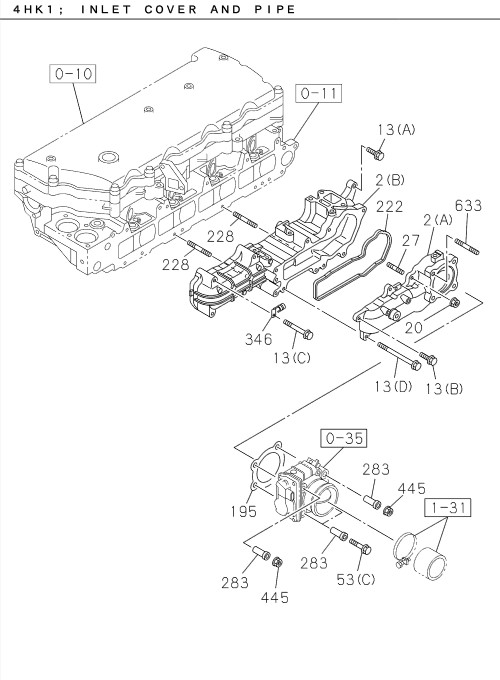

| 020 |
I7-05108 010-A |
|
NUT; INL MANIF |
2 |
2203- |
|
FTR |
M8 FLANGE |
| 013 |
I0-28050 830-0 |
|
BOLT; INL MANIF |
2 |
2203- |
|
FTR |
(A) M8X30 FLANGE |
| 002 |
I8-98115 667-1 |
|
COVER; INL |
1 |
2203- |
|
FTR |
(B) |
| 027 |
I0-41010 825-0 |
|
STUD; INL MANIF |
2 |
2203- |
|
FTR |
M8X25 L=37 |
| 013 |
I0-28050 860-0 |
|
BOLT; INL MANIF |
5 |
2203- |
|
FTR |
(C) M8X60 FLANGE |
| 283 |
I8-97387 995-1 |
|
RUBBER |
4 |
2203- |
|
FTR |
L=58 |
| 346 |
I8-97367 984-1 |
|
CLIP; ENG HARNESS |
1 |
2203- |
|
FTR |
ID=12 |
| 053 |
I0-28050 870-0 |
|
BOLT; INL PIPE |
2 |
2203- |
|
FTR |
(C) M8X70 FLANGE |
| 195 |
I8-98032 612-0 |
|
GASKET; THROTTLE BODY INJECTOR |
1 |
2203- |
|
FTR |
ID=68 |

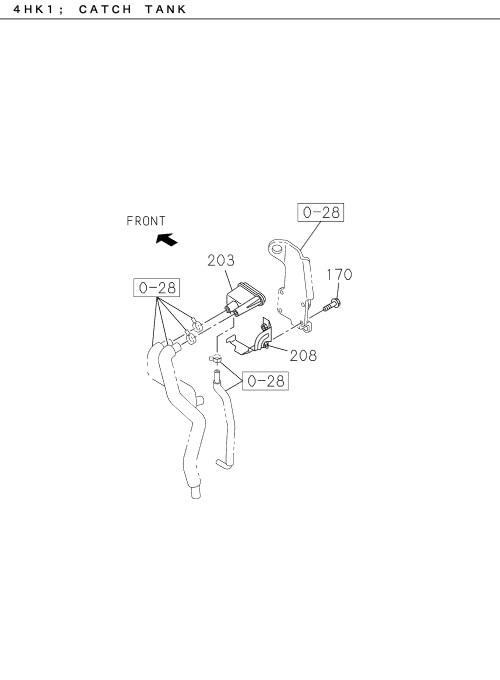

| 208 |
I8-98215 518-1 |
|
BRACKET; CATCH TANK,OIL |
1 |
2203- |
|
FTR |
|
| 222 |
I8-98032 611-0 |
|
GASKET; INL COVER |
1 |
2203- |
|
FTR |
|
| 170 |
I0-28050 820-0 |
|
BOLT; BRKT |
2 |
2203- |
|
FTR |
M8X20 FLANGE |
| 013 |
I0-28050 825-0 |
|
BOLT; INL MANIF |
2 |
2203- |
|
FTR |
(B) M8X25 FLANGE |
| 013 |
I0-28055 812-0 |
|
BOLT; INL MANIF |
3 |
2203- |
|
FTR |
(D) M8X120 FLANGE |
| 002 |
I8-98085 730-1 |
|
COVER; INL |
1 |
2203- |
|
FTR |
(A) |
| 633 |
I9-09830 212-0 |
|
STUD; THROTTLE BODY |
2 |
2203- |
|
FTR |
M8X71 L=83 |
| 203 |
I8-97088 685-1 |
|
TANK; CATCH,PRESSURE CONT VLV |
1 |
2203- |
|
FTR |
|
| 228 |
I8-97200 763-0 |
|
STUD; INL COVER |
2 |
2203- |
|
FTR |
M8X126 L=137 |
| 445 |
I7-05108 010-A |
|
NUT; THROTTLE BODY TO MANIF |
2 |
2203- |
|
FTR |
M8 FLANGE |
