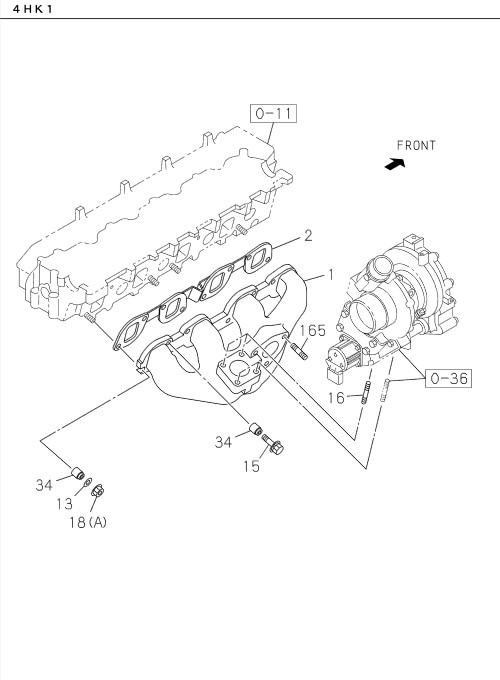

0-27 | EXHAUST MANIFOLD
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 165 | I8-97378 064-0 | STUD; EGR PIPE | 3 | 2203- | FTR | M8X30 L=41 | ||
| 001 | I8-98271 447-0 | MANIFOLD; EXHAUST | 1 | 2203- | FTR | |||
| 034 | I8-97250 073-1 | COLLAR; DIST,EXH MANIF | 8 | 2203- | FTR | L=28 | ||
| 013 | I1-09556 015-0 | WASHER; LK,EXH MANIF | 2 | 2203- | FTR | T=2.2 | ||
| 002 | I8-97146 499-2 | GASKET; EXH MANIF TO HD | 1 | 2203- | FTR | |||
| 016 | I1-09302 106-0 | STUD; EXH PIPE TO MANIF | 2 | 2203- | FTR | M10X30 L=45 | ||
| 002 | I8-97146 499-A | GASKET; EXH MANIF TO HD | 1 | 2203- | FTR | (IADG) | ||
| 018 | I0-91110 510-0 | NUT; EXH MANIF | 2 | 2203- | FTR | (A) M10 | ||
| 015 | I8-97061 543-0 | BOLT; EXH MANIF | 6 | 2203- | FTR | M10X60 |
