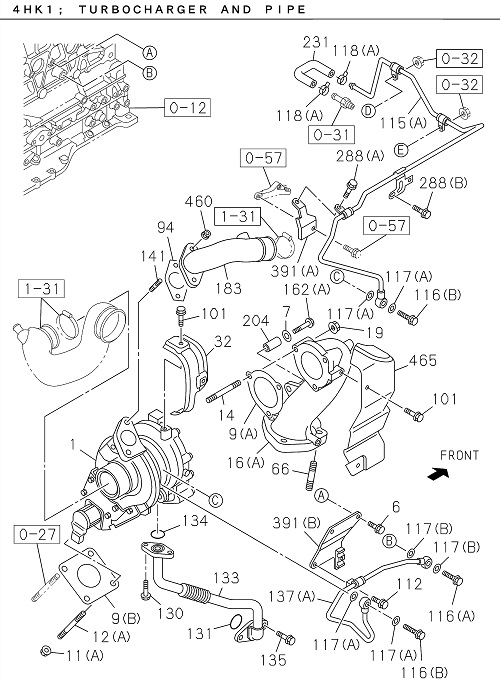

0-36 | TURBOCHARGER SYSTEM
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 288 | I0-28050 810-0 | BOLT; WATER PIPE CLIP | 1 | 2203- | FTR | (B) M8X10 FLANGE | ||
| 115 | I8-97387 270-2 | PIPE; WATER,TURBOCHARGER OUT | 1 | 2203- | FTR | (A) | ||
| 391 | I8-98013 958-0 | BRACKET; WATER PIPE | 1 | 2203- | FTR | (A) | ||
| 014 | I8-97019 478-0 | STUD; TURBOCHARGER TO EXH PIPE | 3 | 2203- | FTR | M8X49 L=63 | ||
| 309 | I0-28650 620-0 | BOLT; TURBOCHARGER | 2 | 2203- | FTR | (A) M6X20 FLANGE | ||
| 116 | I0-28050 816-0 | BOLT; WATER PIPE | 1 | 2203- | FTR | (D) M8X16 FLANGE | ||
| 009 | I8-98046 241-0 | GASKET; TURBOCHARGER TO EXH DUCT | 1 | 2203- | FTR | (B) ID=49 | ||
| 012 | I1-09302 106-0 | STUD; TURBOCHARGER | 2 | 2203- | FTR | (A) M10X30 L=45 | ||
| 019 | I8-94170 486-0 | NUT; EXH PIPE,TURBOCHARGER | 3 | 2203- | FTR | M8 FLANGE | ||
| 101 | I8-98054 289-0 | BOLT; HEAT PROTECTOR | 6 | 2203- | FTR | M6X12 W/PL WASHER | ||
| 011 | I0-91180 106-0 | NUT; TURBOCHARGER | 2 | 2203- | FTR | (B) M6 FLANGE | ||
| 118 | I8-94221 519-0 | CLIP; WATER HOSE | 6 | 2203- | FTR | (A) ID=15.5 | ||
| 135 | I0-28050 820-0 | BOLT; OIL PIPE TO C/BL | 2 | 2203- | FTR | M8X20 FLANGE | ||

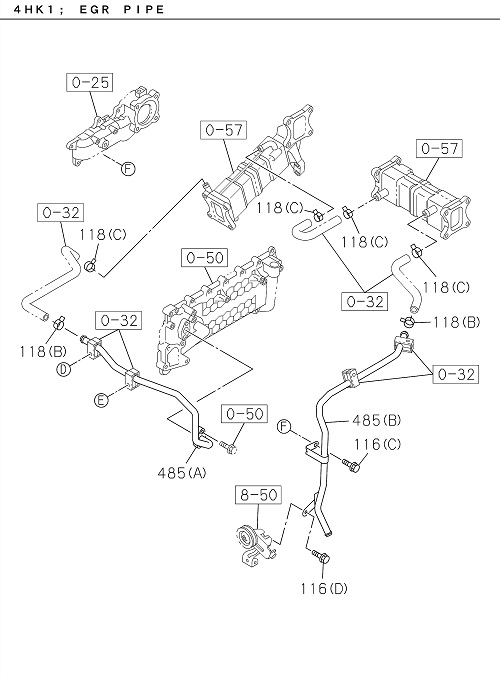

| 485 | I8-98036 855-1 | PIPE; WATER EGR | 1 | 2203- | FTR | (B) | ||
| 009 | I8-97376 758-0 | GASKET; TURBOCHARGER TO EXH DUCT | 1 | 2203- | FTR | (A) ID=54 | ||
| 118 | I8-97359 141-0 | CLIP; WATER HOSE | 2 | 2203- | FTR | (B) ID=22 | ||
| 465 | I8-98052 394-0 | PROTECTOR; HEAT,EXH ADAPTER | 1 | 2203- | FTR | |||
| 204 | I8-97214 384-1 | COLLAR; PIPE ADAPTER | 1 | 2203- | FTR | |||
| 066 | I0-44011 025-0 | STUD; EXH PIPE | 3 | 2203- | FTR | M10X25 L=40 | ||
| 288 | I0-28050 816-0 | BOLT; WATER PIPE CLIP | 1 | 2203- | FTR | (A) M8X16 FLANGE | ||
| 162 | I5-09000 275-0 | BOLT; ADAPTER | 1 | 2203- | FTR | (A) M8X57 | ||
| 116 | I1-09675 081-0 | BOLT; WATER PIPE | 2 | 2203- | FTR | (B) M12X24 EYE-BOLT | ||
| 011 | I8-97381 617-0 | NUT; TURBOCHARGER | 4 | 2203- | FTR | (A) M10 FLANGE | ||
| 001 | I8-97526 008-1 | TURBOCHARGER ASM | 1 | 2203- | FTR | |||
| 485 | I8-97376 773-0 | PIPE; WATER EGR | 1 | 2203- | FTR | (A) | ||
| 112 | I0-28050 812-A | BOLT; CLIP | 1 | 2203- | FTR | M8X12 FLANGE | ||
| 391 | I8-98057 168-2 | BRACKET; WATER PIPE | 1 | 2203- | FTR | (B) | ||
| 016 | I8-98030 079-4 | ADAPTER; EXH PIPE | 1 | 2203- | FTR | (A) | ||
| 117 | I8-98251 345-0 | GASKET; WATER PIPE | 2 | 2203- | FTR | (B) ID=14.2 OD=19.2 | ||
| 094 | I8-98107 962-0 | GASKET; INL PIPE | 1 | 2203- | FTR | ID=56 | ||
| 137 | I8-97387 271-0 | PIPE; WATER,TURBOCHARGER IN | 1 | 2203- | FTR | (A) | ||
| 116 | I8-98037 827-0 | BOLT; WATER PIPE | 1 | 2203- | FTR | (A) M14X30 EYE-BOLT | ||
| 231 | I8-97209 950-A | HOSE; RUBBER,TURBOCHARGER OUT | 1 | 2203- | FTR | |||
| 231 | I6-97209 950-0 | HOSE; RUBBER,TURBOCHARGER OUT | 1 | 2203- | FTR | (IADG) | ||
| 117 | I9-09571 412-0 | GASKET; WATER PIPE | 4 | 2203- | FTR | (A) ID=12.2 OD=18 | ||
| 134 | I1-09623 462-0 | GASKET; OIL PIPE,TURBOCHARGER DRAIN | 1 | 2203- | FTR | ID=22.8 OD=27.6 | ||
| 032 | I8-98031 888-3 | PROTECTOR; HEAT,TURBOCHARGER | 1 | 2203- | FTR | |||
| 006 | I0-28050 816-0 | BOLT; BRKT TO C/BL | 2 | 2203- | FTR | M8X16 FLANGE | ||
| 131 | I8-94394 671-0 | GASKET; OIL PIPE,C/BL | 1 | 2203- | FTR | ID=30 | ||
| 118 | I8-98025 921-0 | CLIP; WATER HOSE | 4 | 2203- | FTR | (C) ID=24 | ||

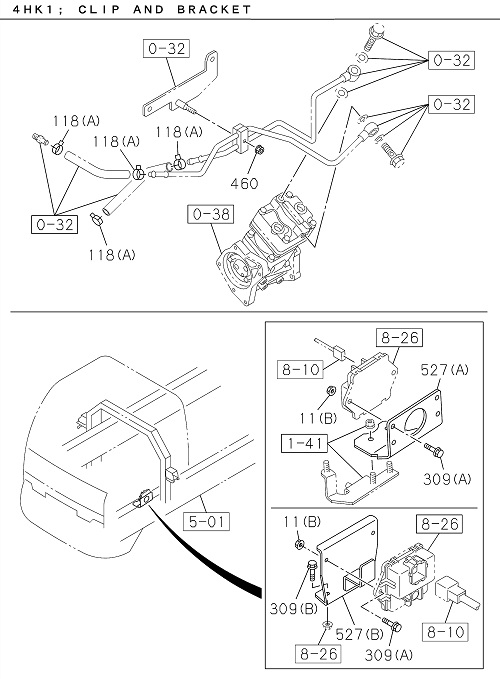

| 527 | I8-98206 458-0 | BRACKET; TURBOCHARGER | 1 | 2203- | FTR | (B) | ||
| 130 | I0-50540 620-0 | BOLT; OIL PIPE TO TURBOCHARGER DRAIN | 2 | 2203- | FTR | M6X20 W/LK WASHER | ||
| 141 | I0-44011 028-0 | STUD; INL PIPE TO BRKT | 2 | 2203- | FTR | M10X28 L=43 | ||
| 116 | I7-04508 025-A | BOLT; WATER PIPE | 1 | 2203- | FTR | (C) M8X20 FLANGE | ||
| 133 | I8-98172 661-0 | PIPE; OIL DRAIN,TURBOCHARGER | 1 | 2203- | FTR | |||
| 183 | I8-98239 380-0 | PIPE; INL,TURBOCHARGER | 1 | 2203- | FTR | |||
| 007 | I8-94174 537-0 | WASHER; PL,BRKT | 1 | 2203- | FTR | ID=8 OD=18 T=3 | ||
| 460 | I0-91180 110-0 | NUT; PIPE | 2 | 2203- | FTR | M10 FLANGE | ||
| 309 | I0-28650 825-0 | BOLT; TURBOCHARGER | 2 | 2203- | FTR | (B) M8X25 FLANGE |
