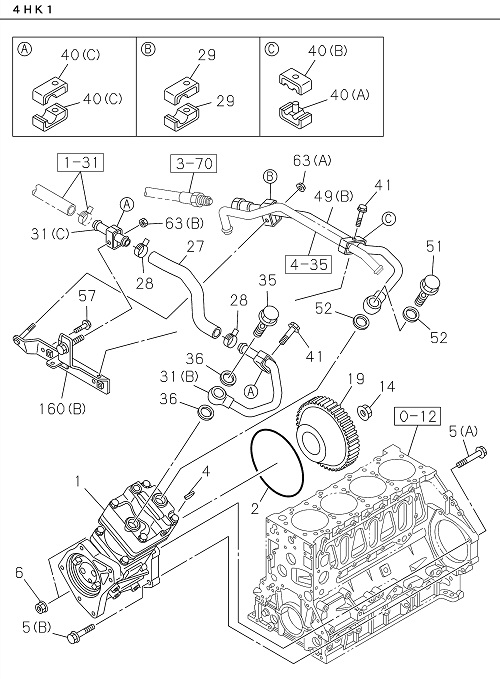

0-38 | AIR COMPRESSOR PIPING; ENGINE SIDE
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 063 | I7-05108 010-A | NUT; CLIP | 1 | 2203- | FTR | (B) M8 FLANGE | ||
| 005 | I0-28151 270-0 | BOLT; AIR CMPR FIX | 1 | 2203- | FTR | (B) M12X70 FLANGE | ||
| 031 | I8-98023 170-0 | PIPE; AIR,AIR CMPR SUCTION | 1 | 2203- | FTR | (B) | ||
| 029 | I1-09701 282-0 | CLIP; AIR PIPE | 2 | 2203- | FTR | ID=14 L=15 | ||
| 028 | I8-98025 921-0 | CLIP; HOSE,AIR CMPR | 2 | 2203- | FTR | ID=24 | ||
| 057 | I0-28050 816-0 | BOLT; BRKT,AIR PIPE | 2 | 2203- | FTR | M8X16 FLANGE | ||
| 001 | I8-98270 233-0 | COMPRESSOR ASM; AIR | 1 | 2203- | FTR | |||
| 063 | I0-91180 106-0 | NUT; CLIP | 1 | 2203- | FTR | (A) M6 FLANGE | ||
| 002 | I1-09623 464-0 | GASKET; AIR CMPR | 1 | 2203- | FTR | ID=139.6 | ||
| 014 | I8-97141 154-0 | NUT; GEAR | 1 | 2203- | FTR | M18 | ||
| 160 | I8-98076 098-0 | BRACKET; AIR PIPE | 1 | 2203- | FTR | (B) | ||
| 019 | I8-97600 987-2 | GEAR; INJ PUMP | 1 | 2203- | FTR | Z=35 | ||
| 031 | I8-98076 324-0 | PIPE; AIR,AIR CMPR SUCTION | 1 | 2203- | FTR | (C) | ||
| 004 | I9-08055 519-0 | KEY; INJ PUMP GEAR | 1 | 2203- | FTR | |||
| 052 | I9-09571 424-0 | GASKET; EYE BOLT,AIR PIPE | 2 | 2203- | FTR | ID=24.5 OD=32 | ||
| 035 | I1-09675 175-2 | BOLT; EYE,AIR PIPE | 1 | 2203- | FTR | M24X39 | ||
| 040 | I8-97619 417-0 | CLIP; AIR PIPE | 1 | 2203- | FTR | (A) ID=14 & 17 L=32.5 | ||
| 036 | I9-09571 424-0 | GASKET; AIR PIPE TO AIR CMPR | 2 | 2203- | FTR | ID=24.5 OD=32 | ||
| 027 | I8-98057 031-1 | HOSE; AIR CMPR,SUCTION | 1 | 2203- | FTR | |||
| 040 | I1-09701 284-0 | CLIP; AIR PIPE | 4 | 2203- | FTR | (C) ID=17 L=17 | ||
| 040 | I8-97619 418-0 | CLIP; AIR PIPE | 1 | 2203- | FTR | (B) ID=14 & 17 L=32.5 | ||
| 051 | I1-09675 175-2 | BOLT; EYE,AIR PIPE TO CMPR | 1 | 2203- | FTR | M24X39 | ||
| 041 | I0-28050 845-0 | BOLT; CLIP | 2 | 2203- | FTR | M8X45 FLANGE | ||
| 006 | I0-91180 110-0 | NUT; AIR CMPR | 2 | 2203- | FTR | M10 FLANGE | ||
| 005 | I8-94396 485-1 | BOLT; AIR CMPR FIX | 1 | 2203- | FTR | (A) M12X95 FLANGE | ||
| 049 | I8-98069 425-0 | PIPE; AIR,CHARGE | 1 | 2203- | FTR | (B) |
