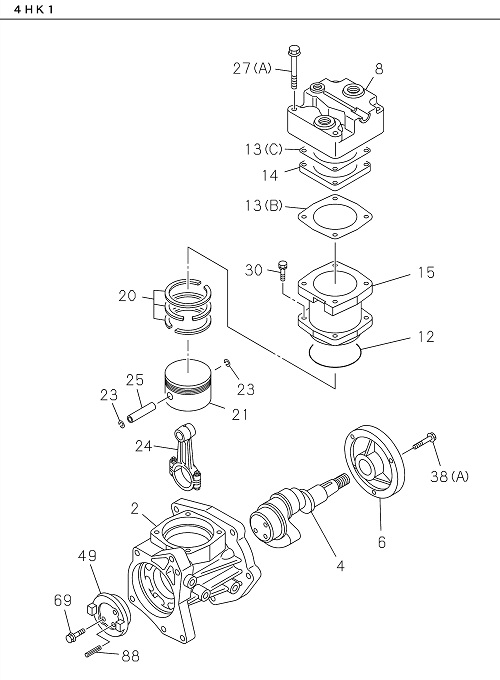

0-39 | AIR COMPRESSOR; BRAKE
GIGA E4
GIGA FTR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 020 | I8-97522 052-0 | RING KIT; PISTON,AIR CMPR | 1 | 2203- | FTR | |||
| 024 | I1-19173 023-0 | ROD ASM; CONN,AIR CMPR | 1 | 2203- | FTR | |||
| 030 | I0-50741 025-0 | BOLT; CYL TO CRANKCASE | 4 | 2203- | FTR | M10X25 | ||
| 088 | I1-19179 034-0 | PIN; SPRING | 1 | 2203- | FTR | |||
| 008 | I1-19110 075-0 | HEAD ASM; CYL,AIR CMPR | 1 | 2203- | FTR | |||
| 021 | I1-19161 027-0 | PISTON; AIR CMPR | 1 | 2203- | FTR | |||
| 002 | I1-19151 303-0 | CRANKCASE; AIR CMPR | 1 | 2203- | FTR | |||
| 049 | I1-19179 032-0 | COUPLING ASM | 1 | 2203- | FTR | |||
| 015 | I1-19163 068-1 | CYLINDER; AIR CMPR | 1 | 2203- | FTR | |||
| 023 | I1-19169 004-0 | RING; SNAP,PISTON,AIR CMPR | 2 | 2203- | FTR | |||
| 006 | I1-19156 086-1 | COVER ASM; BRG,AIR CMPR | 1 | 2203- | FTR | |||
| 027 | I8-98188 172-0 | BOLT; HD | 4 | 2203- | FTR | (A) | ||
| 012 | I8-98185 684-0 | GASKET; AIR CMPR | 1 | 2203- | FTR | |||
| 069 | I1-19179 033-0 | BOLT ASM; AIR COMP | 2 | 2203- | FTR | |||
| 013 | I1-19115 016-0 | GASKET; AIR CMPR | 1 | 2203- | FTR | (B) | ||
| 004 | I1-19171 090-1 | CRANKSHAFT; AIR CMPR | 1 | 2203- | FTR | |||
| 014 | I8-98271 713-0 | PLATE; AIR CMPR | 1 | 2203- | FTR | |||
| 038 | I1-19159 023-0 | BOLT; COVER FIX | 3 | 2203- | FTR | (A) | ||
| 013 | I1-19115 015-0 | GASKET; AIR CMPR | 1 | 2203- | FTR | (C) | ||
| 025 | I9-19167 003-0 | PIN; PISTON,AIR CMPR | 1 | 2203- | FTR |
